BEMKO PIR-bewegingssensor 800W 180° zwart

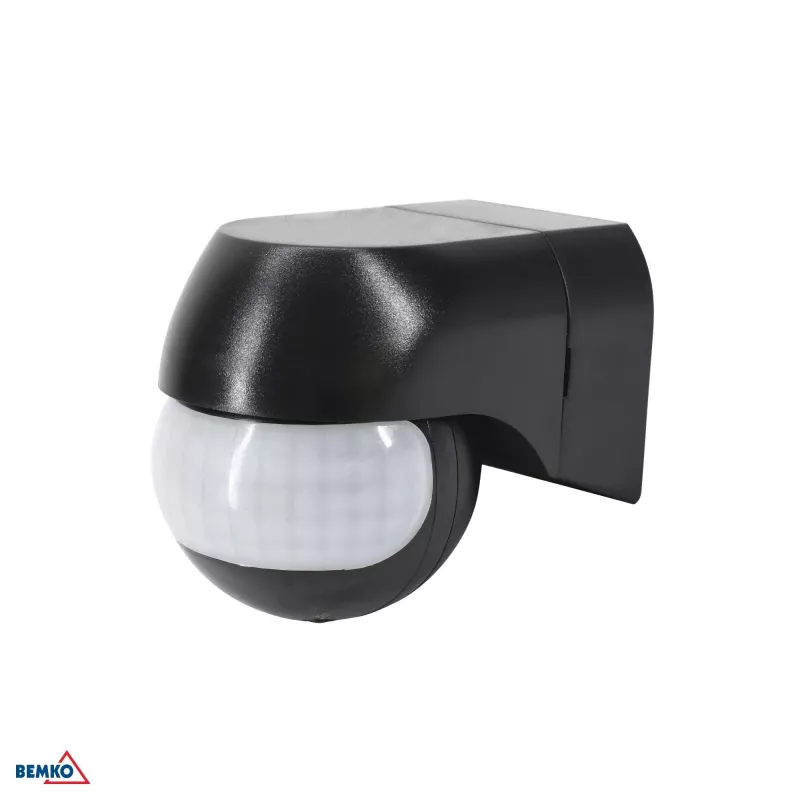

The BEMKO B50-SES12BL-A is a high-quality Passive Infrared (PIR) motion sensor designed for reliable automatic lighting control. With a maximum load capacity of 800W for incandescent lamps and 200W for LED/fluorescent lamps, it is suitable for a wide range of indoor and outdoor applications. The sensor features a 180° detection angle and an adjustable detection range of 5-12 meters, making it ideal for corridors, staircases, garages, and covered outdoor areas.

Advantages

Energy-saving automatic lighting control with adjustable time delay (10 seconds to 7 minutes) and light sensitivity (3-2000 LUX). Easy wall or surface mounting with IP44 protection against splashing water. Low standby power consumption of less than 0.5W.

Suitable for

• Indoor and covered outdoor areas
• Corridors, staircases, and hallways
• Garages, basements, and storage rooms
• Entrances and patios

Key specifications

• Sensor Type: Passive Infrared (PIR)
• Max Load (Incandescent): 800W
• Max Load (LED/Fluorescent): 200W
• Detection Angle: 180°
• Detection Range: 5-12 m (adjustable)
• Power Supply: 220-240V AC, 50/60 Hz
• IP Rating: IP44
• Colour: Black
• Time Delay: 10 sec - 7 min
• Light Sensitivity: 3-2000 LUX
• Installation Height: 1.8 - 2.5 m
• Operating Temperature: -20°C to +40°C
• Standby Power: <0.5W
• Material: ABS Plastic
• Mounting: Wall/Surface

Recommendations

For optimal performance, install at a height of 1.8-2.5 meters and avoid direct sunlight or heat sources. Suitable for covered outdoor use only; not recommended for exposed wet locations.
