BESEN BS20-BC-22KW wandgemonteerde autolader 22kW Type 2

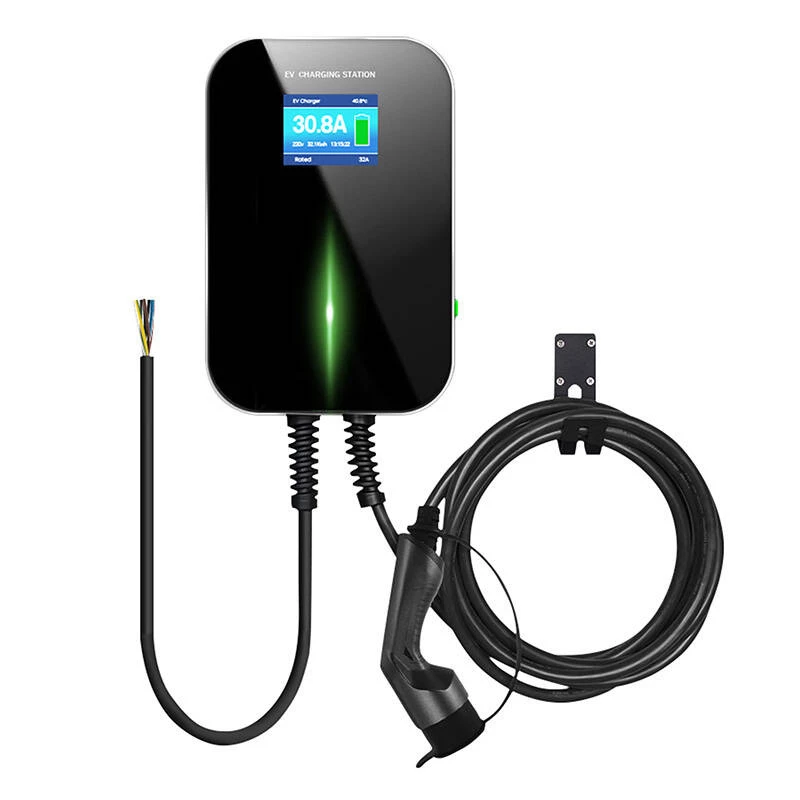

The Besen BS20-BC-22KW is a wall-mounted electric vehicle charger delivering up to 7.2 kW in single-phase mode and 22 kW in three-phase mode. It features a 3.5-inch color LCD display, a smart chip that identifies different EV models and adjusts charging settings, and a robust stainless steel and aluminum construction with IP66 and IK10 ratings.

Key features

• Output power: 7.2 kW (single-phase) / 22 kW (three-phase)
• 3.5-inch color LCD display
• Smart chip identifies different EV models and adjusts charging settings
• Stainless steel and aluminum construction
• IP66 dust and water resistance
• IK10 impact resistance
• Safety protections: under-voltage, over-voltage, short-circuit, overheat, lightning
• RCD Type A / Type A+6mA DC
• Low standby power consumption <8 W
• Optional connectivity: Ethernet, Wi-Fi, 4G, Bluetooth
• Certifications: CE, FCC, CSA, RoHS, ETL

Specifications

• Brand: Besen
• Model: BS20-BC-22KW
• Input voltage / output voltage: AC 230V / 400V
• Input frequency: 47 ~ 63 Hz
• Max. output current: 32 A
• Connector type: SAE J1772, IEC 62196-2, GB/T
• Cable length: 5 m
• Ambient temperature: -25°C ~ 55°C
• Ambient humidity: 0–95% (non-condensing)
• Maximum altitude: <2000 m
• Mounting method: Wall-mounted / Floor-mounted
• Dimensions: 295 x 195 x 65 mm
• Weight: 6–8 kg
