BESSEY GH25 stalen lijmklem met hefboom 250 x 120 mm

The BESSEY GH25 is a steel lever arm clamp built for high-volume production, delivering up to 8,500 N of clamping force with a 250 mm jaw opening and 120 mm throat depth. Its quick-acting lever mechanism tightens and releases up to 5x faster than conventional screw clamps, making it ideal for assembly, welding, and metalworking.

Advantages

Ergonomic lever handle reduces hand fatigue during repetitive clamping. All-steel construction with galvanized finish resists corrosion and withstands vibration, maintaining grip even under dynamic loads. Fixed and sliding jaws provide stable, parallel clamping across the full 250 mm capacity. Trapezoidal thread on the spindle allows fine adjustment of clamping pressure after quick lever closure.

Suitable for

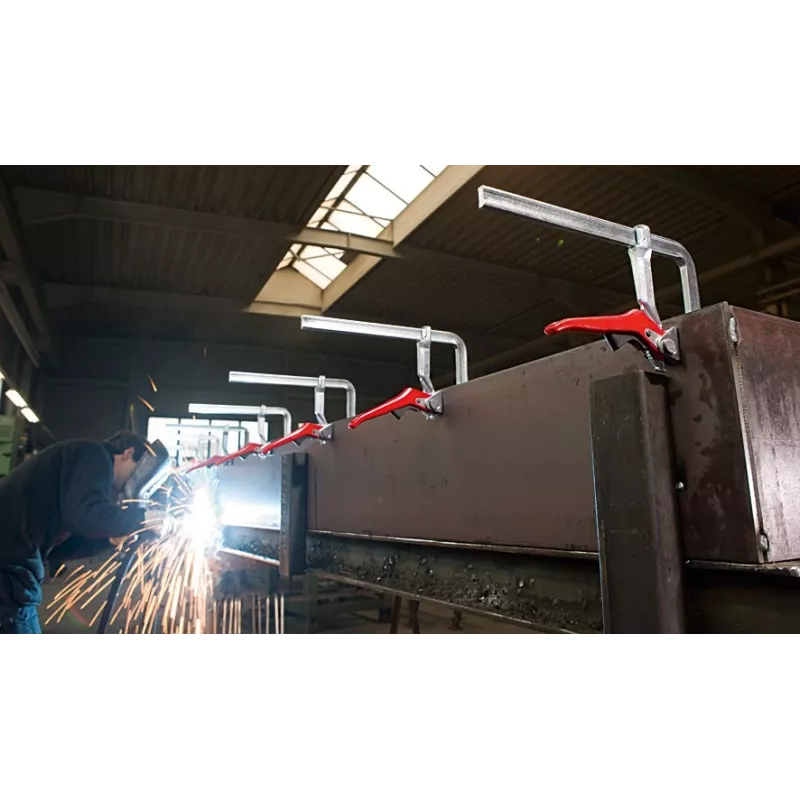

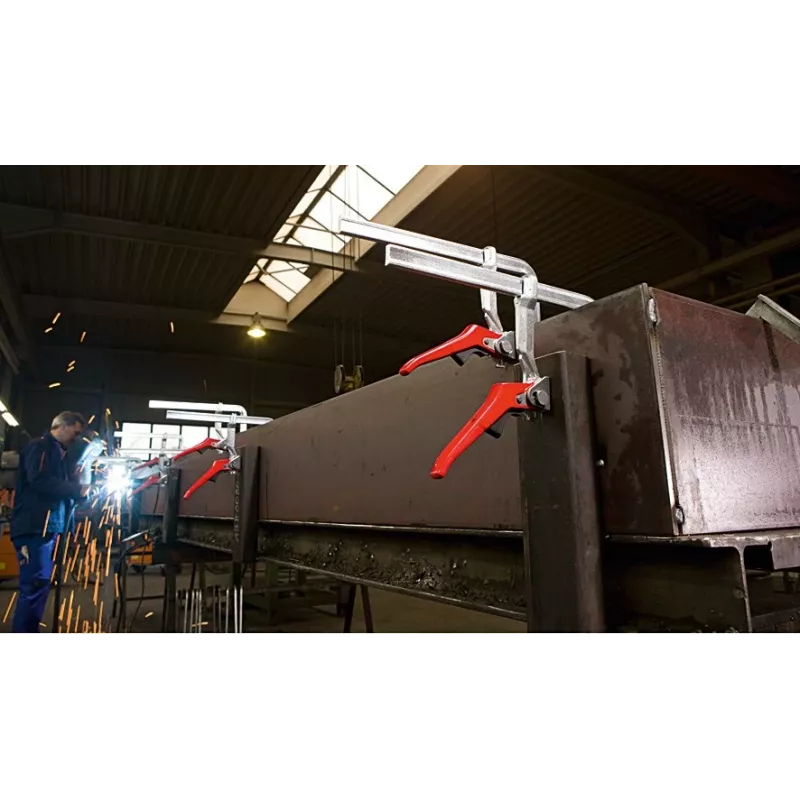

• Metalworking and welding fixtures
• Woodworking and cabinet assembly
• Jig and fixture building
• High-volume production clamping
• Maintenance and repair tasks

Key specifications

• Clamping capacity: 250 mm
• Throat depth: 120 mm
• Max. clamping force: 8,500 N (850 kg)
• Rail dimensions: 28 x 11 mm
• Material: heat-treated steel, galvanized
• Overall length: 365 mm, height: 195 mm

Recommendations

For best results, position the fixed jaw against a solid reference surface and use the sliding jaw to quickly close to the workpiece, then apply final pressure with the lever. Regularly clean and lightly oil the spindle thread to maintain smooth operation.
