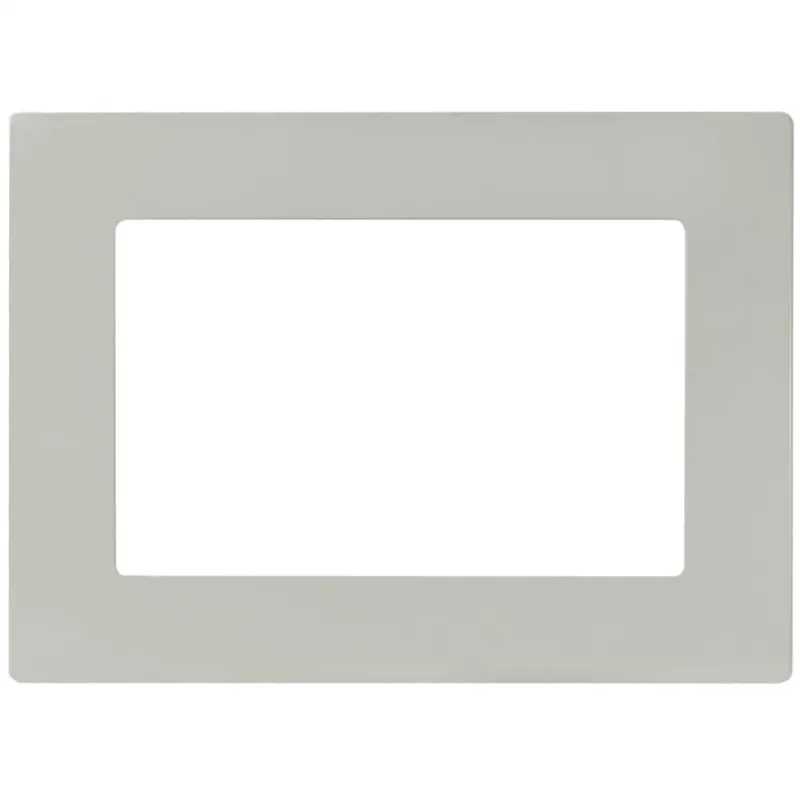

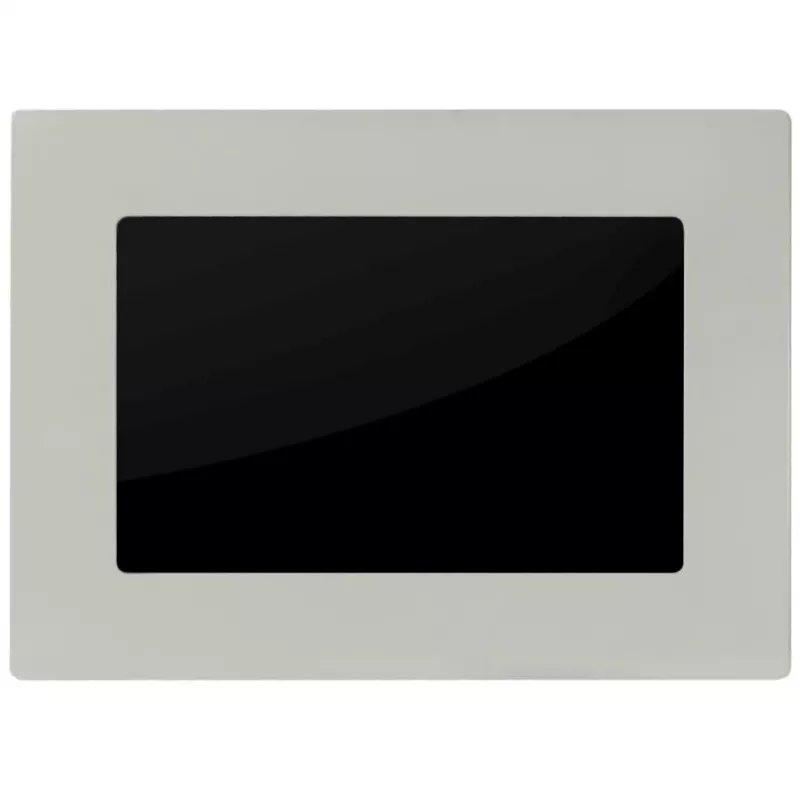

Bezel voor ALLNET-tablet ALLTCOVER15WWV1 – wit vervangend voorframe voor 15-inch touchdisplay

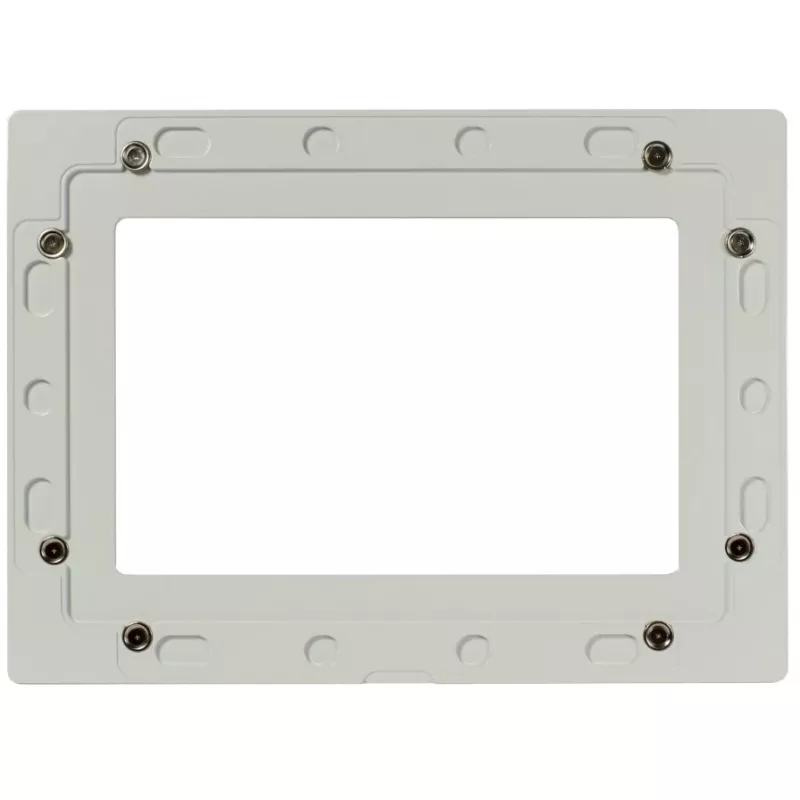

Bezel for ALLNET tablet ALLTCOVER15WWV1 is a white replacement front frame designed for a 15" ALLNET touch display. This external mounting trim is intended for repair or installation of the tablet's front assembly and provides a finished appearance when the device is mounted in an installation frame or wall. The part is manufactured in China and weighs approximately 720 g. The bezel is compatible with ALLNET mounting frames and secures to the frame magnetically, with magnets installed in the panel.

Advantages

The revised bezel improves on the predecessor by integrating the tablet and installation frame into the panel for a cleaner look. Magnets are used to attach the cover rather than screws, allowing easier removal and reattachment. The bezel profile has been lowered and flattened toward the touchscreen to reduce visual protrusion. This product is available as an individual replacement part and comes in standard colours including white, black and silver.

Suitable for (tasks / use cases)

• Repairing or replacing a damaged or worn front frame of a 15" ALLNET touch display
• Mounting a 15" ALLNET tablet into an installation frame for wall or drywall installation
• Upgrading the visible trim to a recessed, magnetically attached bezel for a flush appearance
• Applications where easy removal of the front cover is required for maintenance or service

Key specifications

• Compatible display size: 38.1 cm (15") touch display
• Colour: white
• Type: front bezel / mounting trim for tablet
• Attachment method: magnetic fastening (magnets installed in the bezel/panel)
• Installation frame outer dimensions: 480 x 257 x 28 mm
• Required cut-out dimensions: 482 x 259 mm
• Approximate weight: 720 g
• Material: rigid front trim suitable for indoor wall or drywall mounting (panel placement)

How to use

Install the bezel by first mounting the tablet to the installation frame via the VESA mount and securing the frame to the intended surface (drywall or wooden wall is recommended; solid masonry walls are possible but may affect heat dispersion). Ensure the magnets are correctly positioned in the panel so the bezel can attach magnetically to the frame. When the tablet and frame are installed, align the bezel with the cut-out and allow the magnetic fastening to seat the cover flush against the touchscreen border. Be aware that the tablet speakers sit on the back of the tablet; sound quality and volume may be reduced after installation in a wall.

Recommendations

For reliable operation, install the frame and bezel in a location with adequate ventilation to avoid heat accumulation. Use drywall or wooden wall mounting where possible and verify magnet positions in the panel before final assembly. Handle the bezel carefully to prevent scratching the flattened edge near the touchscreen.
