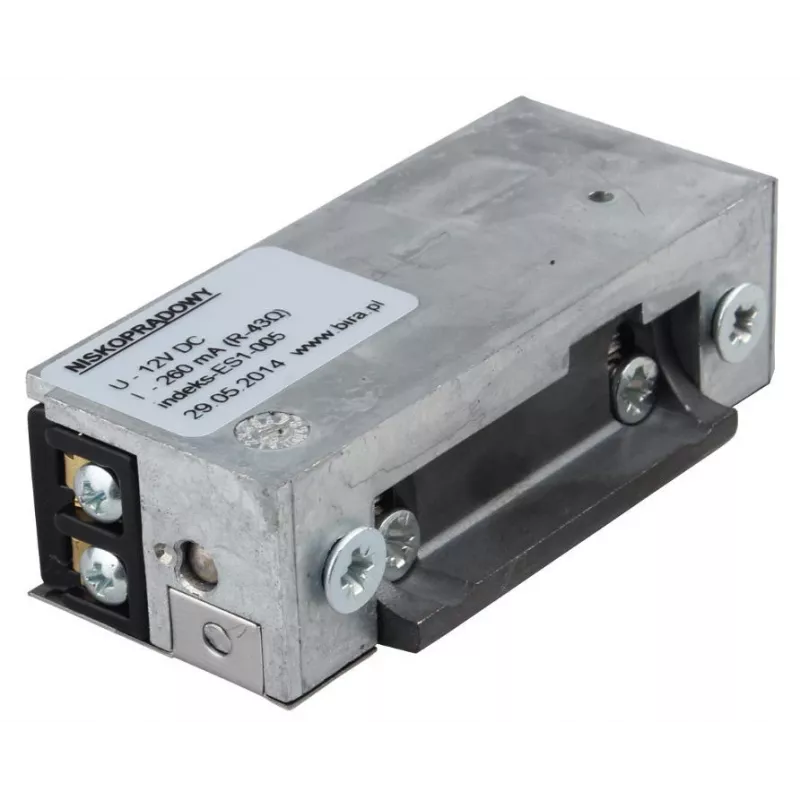

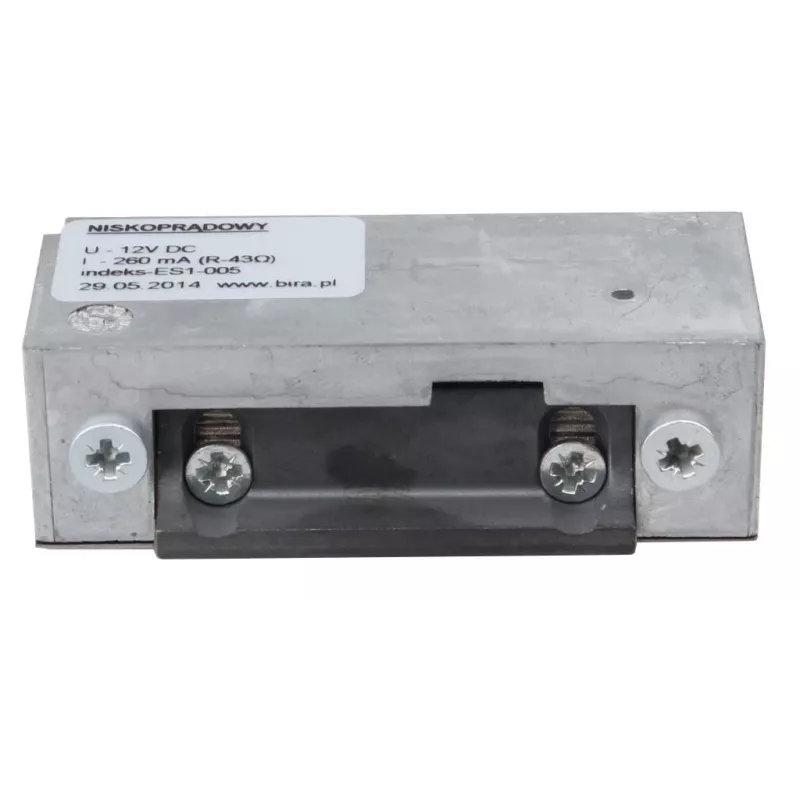

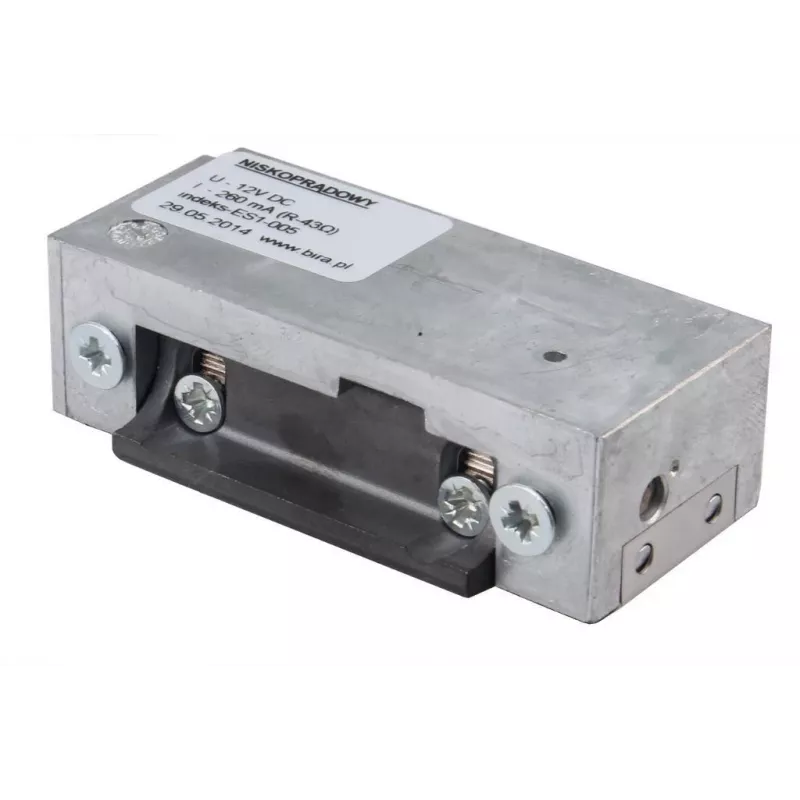

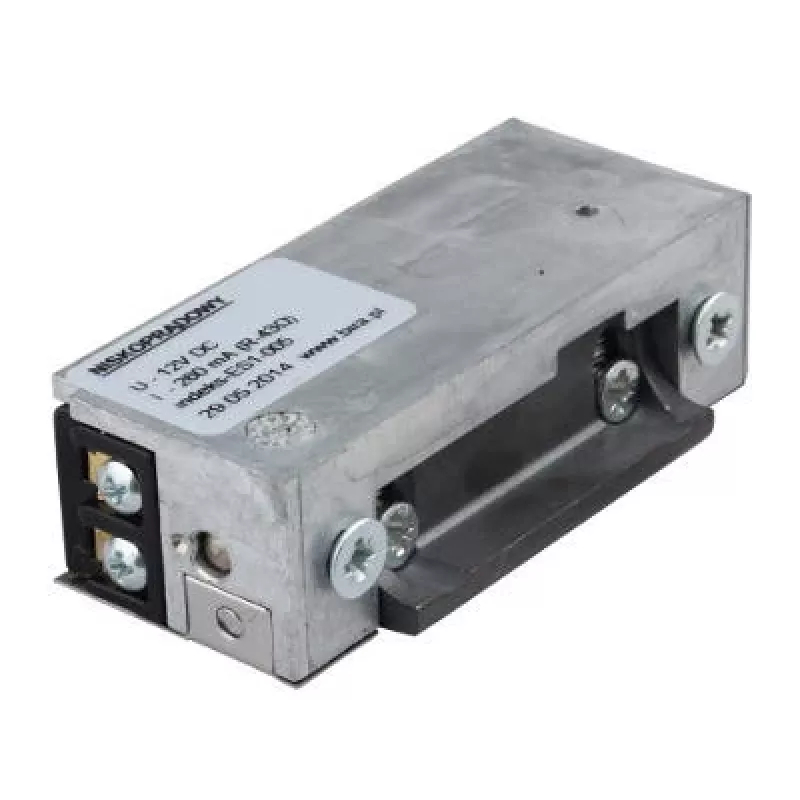

Bira VIDOS R5 12VDC symmetrische elektrische deuropener

The Bira VIDOS R5 is a symmetrical electric strike designed for 12VDC operation. It features low current consumption, allowing it to be used in some video intercom sets without an additional power supply. The strike is made with hard-wearing sintered steel components and can be installed in left or right doors.

Key features

• Low current consumption at 12VDC
• Hard-wearing sintered steel components
• Installation in left or right doors
• Symmetrical design

Specifications

• Brand: Vidos
• Model: R5
• Voltage tolerance: 10-14 V
• Resistance: 43 Ohm
• Current consumption DC (50% duty): 250 mA
• Current consumption DC: 260 mA
• Max. door stress at DC: 11 N (1.1 kg)
• Noise level: 1 (low)
• Continuous operation under current (100% ED): option
