BLEBOX Probe temperatuursensor 1-Wire 10m

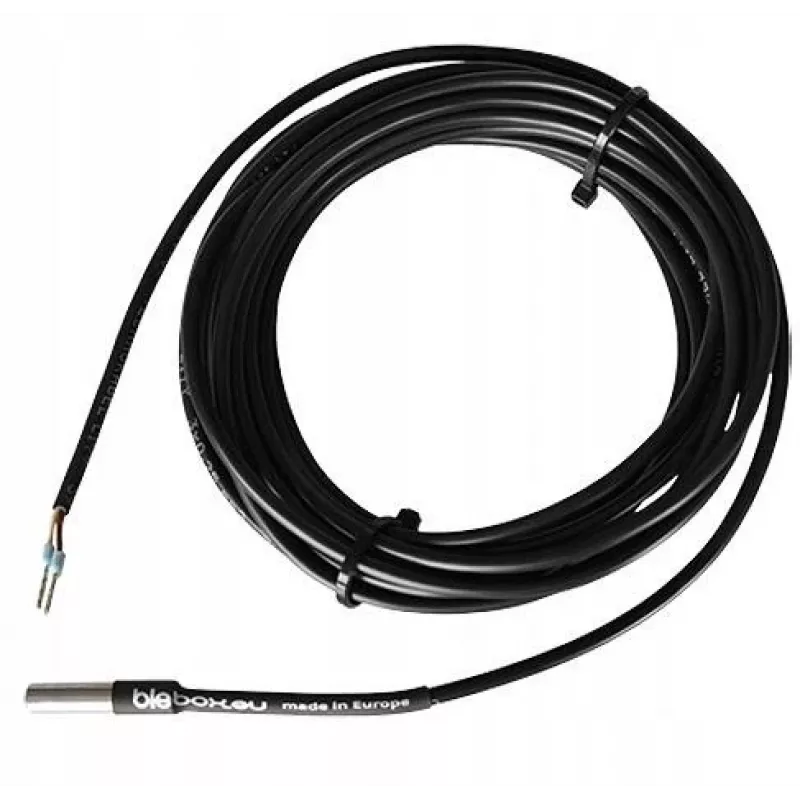

The BLEBOX Probe Temperature Sensor is a high-quality 1-Wire digital temperature probe with a 10-meter cable, designed for use with BleBox smart home devices. It features a stainless steel DS18B20 sensor tip with IP67 protection, suitable for indoor, outdoor, and liquid immersion applications.

Advantages

Accurate temperature measurement with ±0.5°C typical accuracy, long 10m cable for flexible placement, robust stainless steel probe, and IP67-rated tip for harsh environments.

Suitable for

• Monitoring temperature in smart home systems
• Outdoor temperature sensing
• Liquid temperature measurement
• Integration with BleBox tempSensor, switchBoxD, wLightBox series

Key specifications

• Sensor Type: DS18B20 Digital Temperature Sensor
• Communication Protocol: 1-Wire
• Cable Length: 10 meters
• Temperature Range: -55°C to +125°C
• Accuracy: ±0.5°C (-10°C to +85°C)
• Probe Material: Stainless Steel (SUS304)
• Probe Diameter: 6 mm
• Probe Length: 50 mm
• Ingress Protection (Probe Tip): IP67
• Cable Sheath: PVC
• Operating Voltage: 3.0V - 5.5V DC
• Compatibility: BleBox tempSensor, switchBoxD, wLightBox series

Recommendations

Ensure proper wiring (VCC, GND, Data) for standard 3-wire mode. For parasitic power, connect VCC and GND together. Avoid exceeding the maximum voltage.
