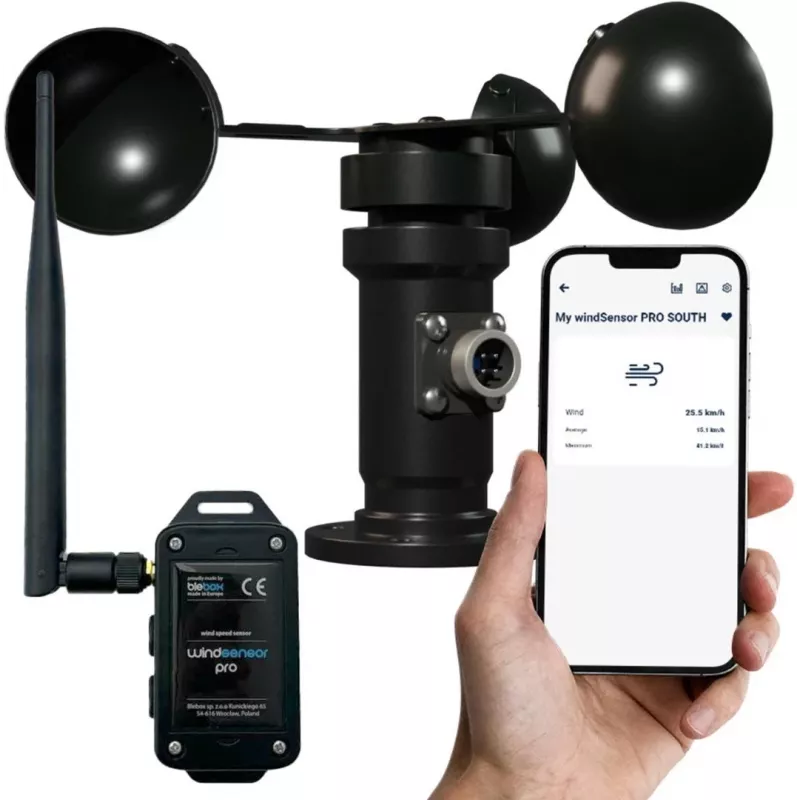

bleBox WindSensor-PRO Wi-Fi windsensor, 37863

The Blebox WindSensor-PRO is a Wi-Fi wind sensor that measures instantaneous, maximum and average wind speed from 0.5 m/s to 30 m/s. It provides historical data and wind speed charts in the wBox app, and can automatically open or close awnings, blinds or shutters when strong wind is detected. The device features an IP54 housing and an external antenna for extended range.

Key features

• Measures instantaneous, maximum and average wind speed from 0.5 m/s to 30 m/s
• Historical data and wind speed charts in the wBox app
• Smartphone notifications
• Automatically opens or closes awnings, blinds or shutters in strong wind
• IP54 housing for increased weather resistance
• External antenna for extended range
• Export of historical data

Specifications

• Brand: Blebox
• MPN: WindSensor Pro
• Power supply: 12-24V DC
• Number of inputs: 1
• Input type: for connecting a dedicated wind sensor
• Controller indication: flashing blue diagnostic LED (can be disabled in controller option)
• Dimensions: Controller - 50 x 92 x 28 mm (without antenna), 85 x 230 x 28 mm (with antenna positioned vertically), antenna length 197 mm; Sensor - Φ194 x 124 mm (outer diameter, total height)
• Housing: plastic, potted with halogen-free polyurethane compound, self-extinguishing for thermal class B (130°C)
• Protection degree: IP54
• Mounting: Controller - two oval mounting holes 18 mm (width) x 3.5 mm (height) or self-adhesive element (tape); Sensor - 4 screws M5/M6, holes marked on a Φ50 circle
• Controller operating temperature: -20°C to 50°C
• Protections: reverse polarity, ESD
• Antenna output: yes
• Antenna connector type: RP-SMA
• Antenna: omnidirectional, gain 5dB - included in the set
• Communication standard: µWi-Fi, compatible with Wi-Fi 802.11g
• Transmission type: bidirectional, encrypted
• Encryption: WPA2-PSK and authenticated encryption (AEAD)
• Operating modes: direct Wi-Fi connection (as Access Point), Wi-Fi connection (via standard router), connection with access from anywhere in the world (only Internet access required)
• Transmission frequency: 2.4 GHz
• API: open
• Compatible devices and systems: Apple iPhone, Apple iPad, iPad Mini, Android, computers and mobile devices supporting HTML5
