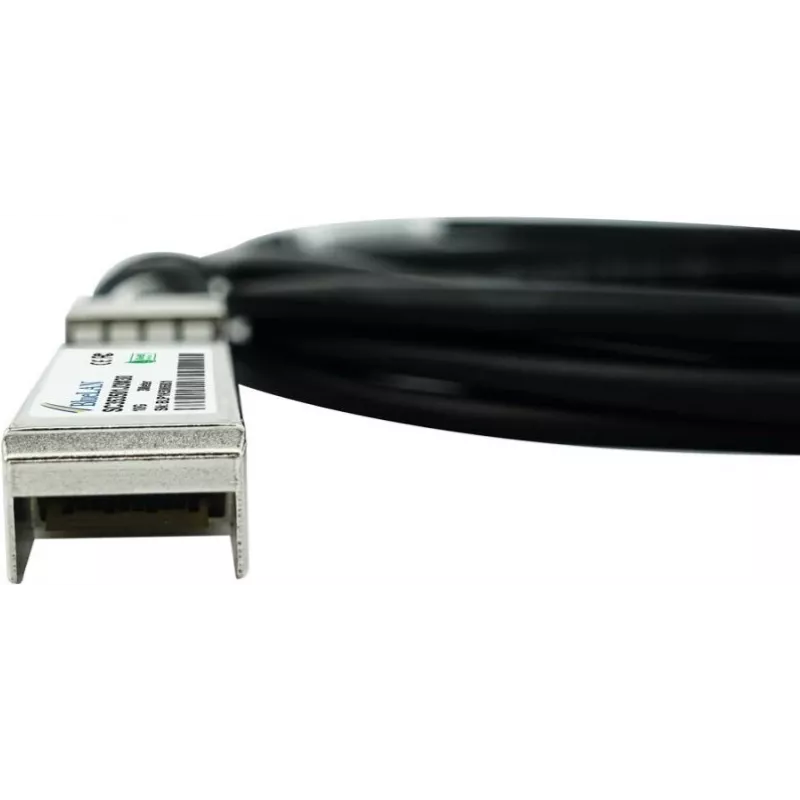

BLUELAN BlueOptics Direct Attach-kabel 10GBASE-CR SFP+ 0,5m Industrial SC353501J0.5M30IN

The BLUELAN BlueOptics Direct Attach Cable 10GBASE-CR SFP+ 0.5 Meter Industrial delivers a 10 Gbps copper twinax link in a compact 0.5 m length, built for industrial environments where space is tight and reliability is non-negotiable. Unlike optical transceivers with separate cables, this passive DAC integrates SFP+ connectors on both ends, eliminating extra components and reducing latency.

Highlights

• 10GBASE-CR passive copper twinax direct attach cable
• SFP+ to SFP+ connectors, 0.5 m (1.64 ft) length
• 30 AWG industrial-grade jacket for harsh conditions
• Operating temperature range -40 °C to 85 °C
• Hot-swappable and low power consumption (< 0.1 W)

In daily use

This cable is ideal for short-reach, high-density interconnects in data centers, network storage, and server-to-switch links. The industrial jacket withstands temperature extremes and mechanical stress, while the passive design ensures minimal power draw and no signal regeneration. With 100 Ohm impedance and enhanced EMI/RFI protection, it maintains signal integrity in electrically noisy environments.

Full specifications

• Cable Type: Direct Attach Cable (DAC)
• Data Rate: 10 Gbps
• Ethernet Standard: 10GBASE-CR
• Connector Type (End A): SFP+
• Connector Type (End B): SFP+
• Cable Length: 0.5 m
• Cable Material: Copper Twinax
• Cable Construction: Passive
• Cable Gauge: 30 AWG
• Impedance: 100 Ohm
• Operating Temperature: -40 °C to 85 °C
• Voltage Supply: 3.3 V
• Power Consumption: < 0.1 W
• Hot-Swappable: Yes
• EMI/RFI Protection: Enhanced
• Application: Data Center Interconnect, Network Storage, Server-to-Switch

Final note

For short 10G links in demanding industrial settings, this BLUELAN DAC offers a robust, plug-and-play solution without the complexity of separate optics.
