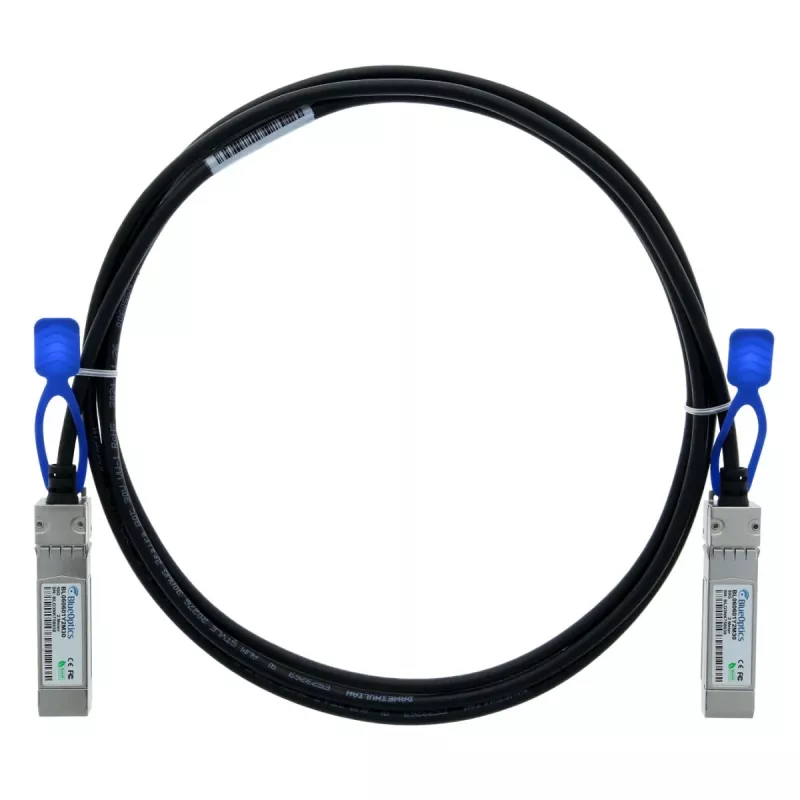

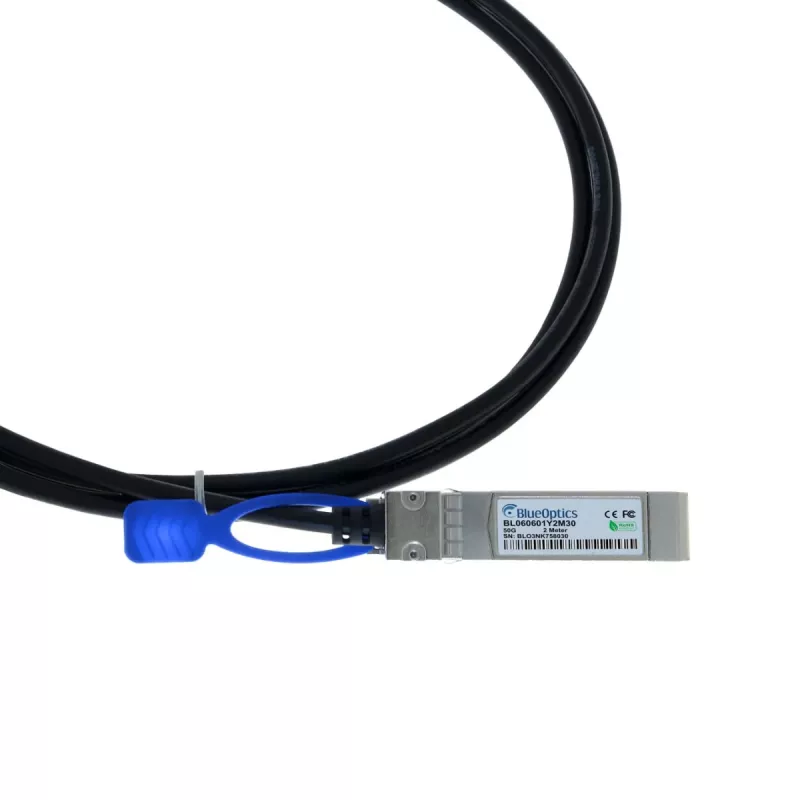

BlueLAN C-S50-S50-1M-BL 50GBASE-CR passieve SFP56 direct attach-kabel, 1 meter

The BlueLAN C-S50-S50-1M-BL is a high-performance 50GBASE-CR passive Direct Attach Cable (DAC) designed for short-reach interconnects in data centers and enterprise networks. This 1-meter cable features SFP56 connectors on both ends and is optimized for Arista Networks equipment, ensuring seamless integration and reliable 50 Gbps data transmission.

Advantages

This DAC cable offers a cost-effective and low-power solution for high-speed connections. With passive copper technology, it consumes less than 0.1W, reducing overall power consumption in your network. The cable is hot-swappable and MSA compliant, guaranteeing interoperability with a wide range of networking devices. Its durable PVC jacket and 30 AWG wire gauge provide excellent signal integrity and longevity.

Suitable for

• Data center server-to-switch connections
• Switch-to-switch interconnects
• High-performance computing environments
• Short-reach 50 Gbps Ethernet links

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Cable Length: 1 Meter (3.3 ft)
• Data Rate: 50 Gbps
• Ethernet Standard: 50GBASE-CR
• Connector Type (End A): SFP56
• Connector Type (End B): SFP56
• Cable Technology: Passive Copper
• Wire Gauge: 30 AWG
• Impedance: 100 Ohm
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Power Consumption: < 0.1W
• Hot-Swappable: Yes
• Certifications: RoHS, CE, FCC
• Vendor Optimization: Arista Networks Compatible

Recommendations

For optimal performance, pair this cable with Arista switches or compatible SFP56 ports. Ensure proper handling to avoid damage to the connectors. This cable is ideal for high-density environments where space and power efficiency are critical.
