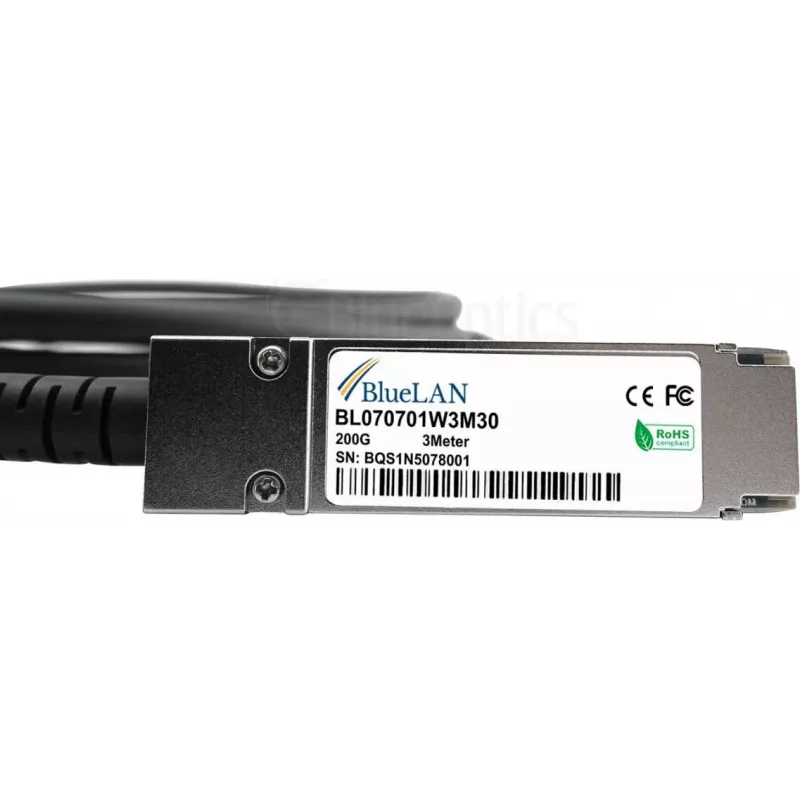

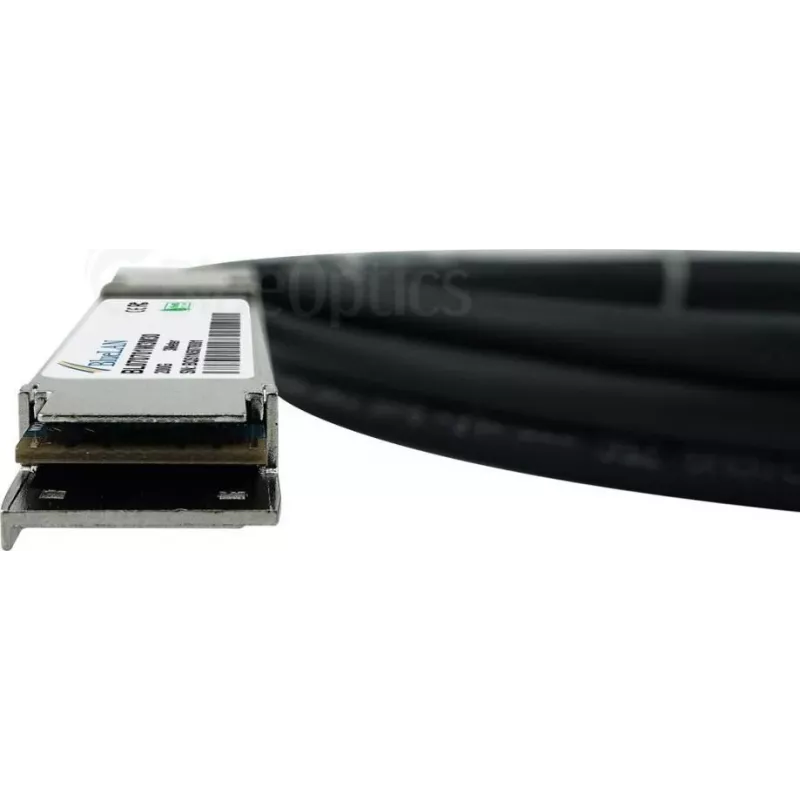

BLUELAN compatibele Infortrend 9624CM200CAB2-0030 QSFP56 Direct Attach kabel, 200GBASE-CR4, Ethernet, 30AWG, 3 meter 9624CM200CAB2-0030-BL

In a high-density data center, network engineers connect top-of-rack switches to servers and storage arrays with the BLUELAN QSFP56 Direct Attach Cable. This 3-meter passive copper cable delivers 200 Gbps Ethernet connectivity for Infortrend systems and other MSA-compliant equipment, eliminating the need for separate transceivers and reducing latency.

Key specifications

• Cable type: Direct Attach Cable (DAC)
• Connectors: QSFP56 to QSFP56
• Data rate: 200 Gbps
• Ethernet standard: 200GBASE-CR4
• Length: 3 meters
• Wire gauge: 30 AWG
• Material: Passive copper
• Impedance: 100 Ohm differential
• Operating temperature: 0°C to 70°C

Why choose it

Passive copper DACs offer lower cost and power consumption compared to active optical cables, with zero power draw and minimal latency. The 30 AWG wire provides flexibility for dense rack cabling while maintaining signal integrity over 3 meters.

Ideal use cases

• Connecting servers to Infortrend storage systems
• High-performance computing clusters
• Data center top-of-rack to end-of-row links

Good to know

This cable is MSA compliant and hot-pluggable, ensuring compatibility with a wide range of QSFP56 ports. It is a compatible replacement for Infortrend part number 9624CM200CAB2-0030.
