BlueLAN compatibele Raisecom EQP-4/2-C QSFP Direct Attach kabel, 40GBASE-CR4, Ethernet/Infiniband QDR, 30AWG, 3 meter (EQP-4/2-C-BL)

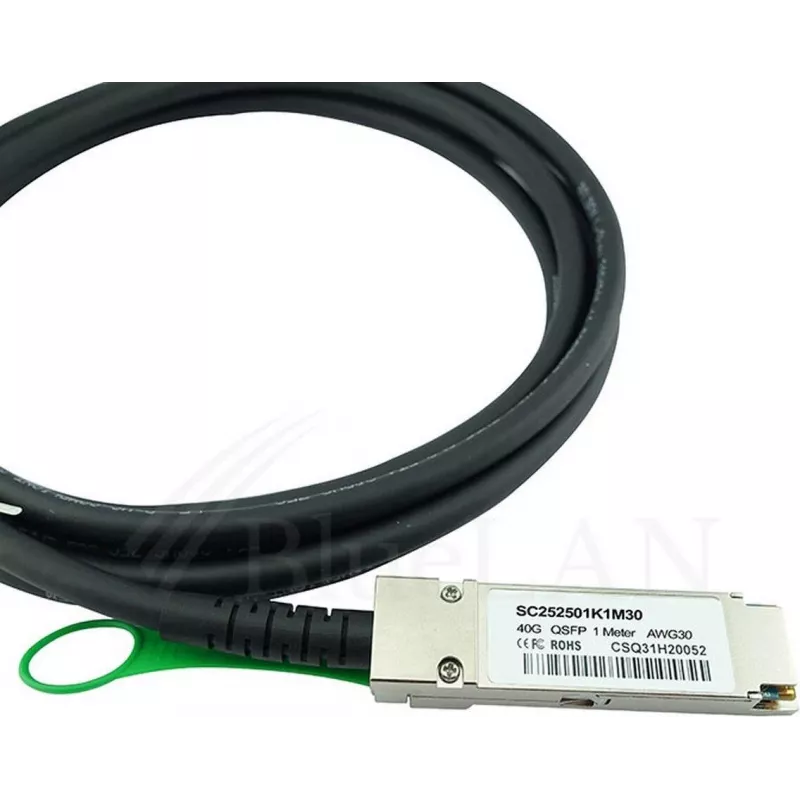

This BlueLAN compatible QSFP Direct Attach Copper (DAC) cable is designed for use with Raisecom EQP-4/2-C switches and routers. It provides a cost-effective, high-performance interconnect solution for data centers and high-performance computing environments, supporting 40GBASE-CR4 Ethernet and InfiniBand QDR protocols.

Advantages

Passive twinax design ensures low latency and zero power consumption. Hot-swappable QSFP connectors allow easy installation and replacement without network downtime. The 30 AWG gauge and 3-meter length offer flexibility in rack cabling while maintaining signal integrity.

Suitable for

• Data center top-of-rack and end-of-row connections
• High-performance computing clusters
• Raisecom EQP-4/2-C network equipment
• 40G Ethernet and InfiniBand QDR networks

Key specifications

• Cable Type: Direct Attach Copper (DAC) Passive Twinax
• Connector Type: QSFP to QSFP
• Data Rate: 40 Gbps
• Ethernet Standard: 40GBASE-CR4
• Cable Length: 3 Meter
• Wire Gauge: 30 AWG
• Protocol Support: Ethernet, InfiniBand QDR
• Host Device Compatibility: Raisecom EQP-4/2-C
• Hot Swappable: Yes
• Cable Material: Copper
• Number of Data Lanes: 4
• Vendor Specific Part Number (Compatible): EQP-4/2-C
• Product Series: QSFP DAC Cable

Recommendations

For optimal performance, ensure your network equipment supports 40GBASE-CR4 and QSFP+ ports. This cable is a direct replacement for Raisecom EQP-4/2-C original DAC cables, offering the same reliability at a lower cost.
