BLUELAN compatibele Synology QSFP28-DAC-2M Direct Attach-kabel, 100GBASE-CR4, Infiniband EDR, 30AWG, 2 meter

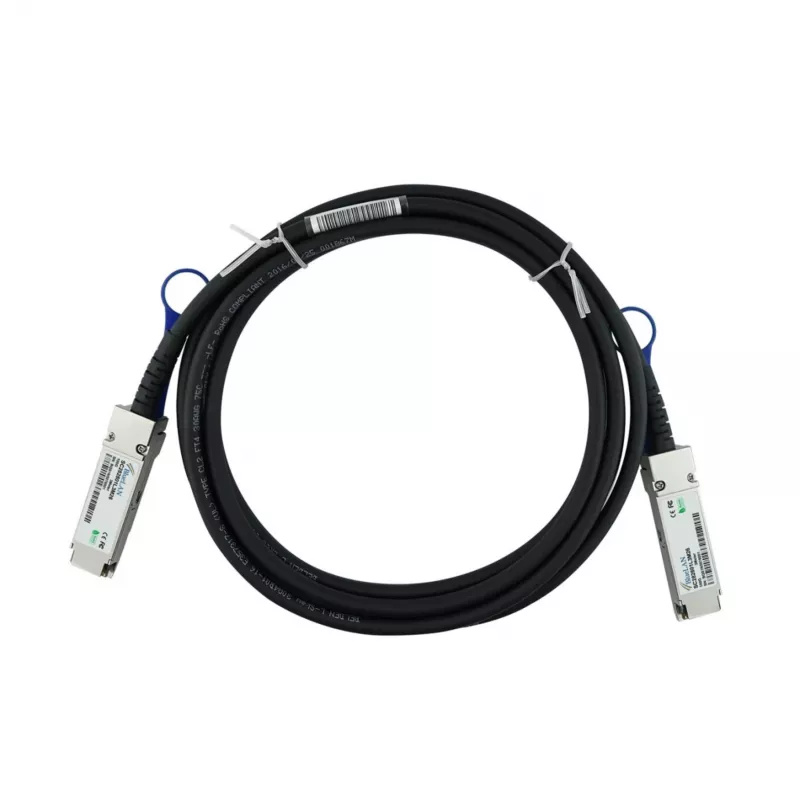

The BLUELAN QSFP28-DAC-2M-SG-BL is a high-performance direct attach copper (DAC) cable designed for seamless integration with Synology networking equipment. This 2-metre passive twinax cable delivers 100 Gbps data rates, supporting 100GBASE-CR4 and Infiniband EDR protocols, making it ideal for high-speed data center interconnects and HPC environments.

Advantages

Cost-effective and low-power (<0.5W typical) solution for short-range high-speed links. Hot-pluggable QSFP28 connectors ensure easy installation and maintenance. Compliant with SFF-8665 and IEEE 802.3bj standards for reliable performance.

Suitable for

• Synology NAS and switch connectivity
• High-performance computing clusters
• Enterprise networking and data center interconnects

Key specifications

• Cable Type: Direct Attach Copper (DAC) Passive
• Connector Type: QSFP28 to QSFP28
• Data Rate: 100 Gbps
• Protocol: 100GBASE-CR4, Infiniband EDR
• Cable Length: 2 metres
• Wire Gauge: 30AWG
• Impedance: 100 Ohm
• Form Factor: QSFP28
• Hot-Pluggable: Yes
• Power Consumption: <0.5W typical

Recommendations

For optimal performance, use with compatible Synology QSFP28 ports. Ensure proper cable management to maintain signal integrity.
