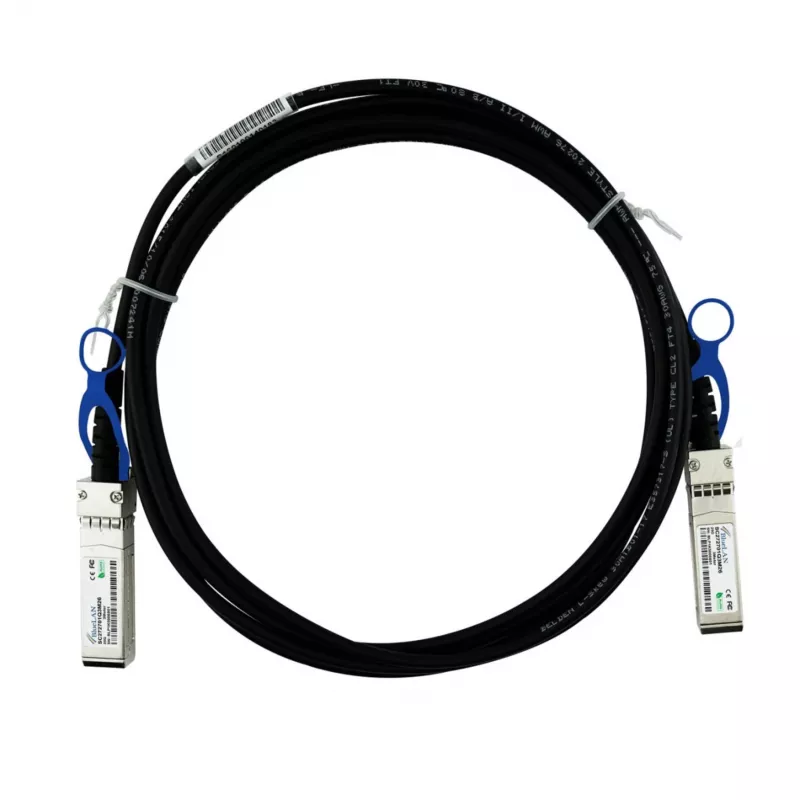

BlueLAN compatibele Synology SFP28-DAC-2M 25GBASE-CR passieve Direct Attach Copper-kabel, SFP28 naar SFP28, 2m

The BlueLAN SFP28-DAC-2M-SG-BL is a high-performance passive direct attach copper (DAC) cable designed to deliver reliable 25 Gbps connectivity for data centers and enterprise networks. Fully compatible with Synology SFP28-DAC-2M, this cable provides a cost-effective, low-latency solution for short-range interconnects.

Advantages

This passive DAC cable offers exceptional signal integrity with zero power consumption, making it an energy-efficient choice for high-speed networking. Its 2-meter length is ideal for rack-to-rack or server-to-switch connections, reducing cable clutter and improving airflow. The SFP28 connectors are hot-swappable and support 25GBASE-CR standards, ensuring seamless integration with existing infrastructure.

Suitable for

• Data center top-of-rack (ToR) and end-of-row (EoR) deployments
• High-performance computing (HPC) clusters
• Enterprise network upgrades to 25G Ethernet
• Synology NAS and server connectivity

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Connector Type: SFP28 to SFP28
• Data Rate: 25 Gbps
• Cable Length: 2 meters
• Cable Technology: Passive Copper
• Wire Gauge: 30 AWG
• Impedance: 100 Ohm
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Power Consumption: < 0.1W
• Certifications: RoHS, CE, FCC

Recommendations

For optimal performance, use this cable with compatible 25G SFP28 ports. Ensure proper handling to avoid damage to connectors. This passive cable does not require external power and is plug-and-play.
