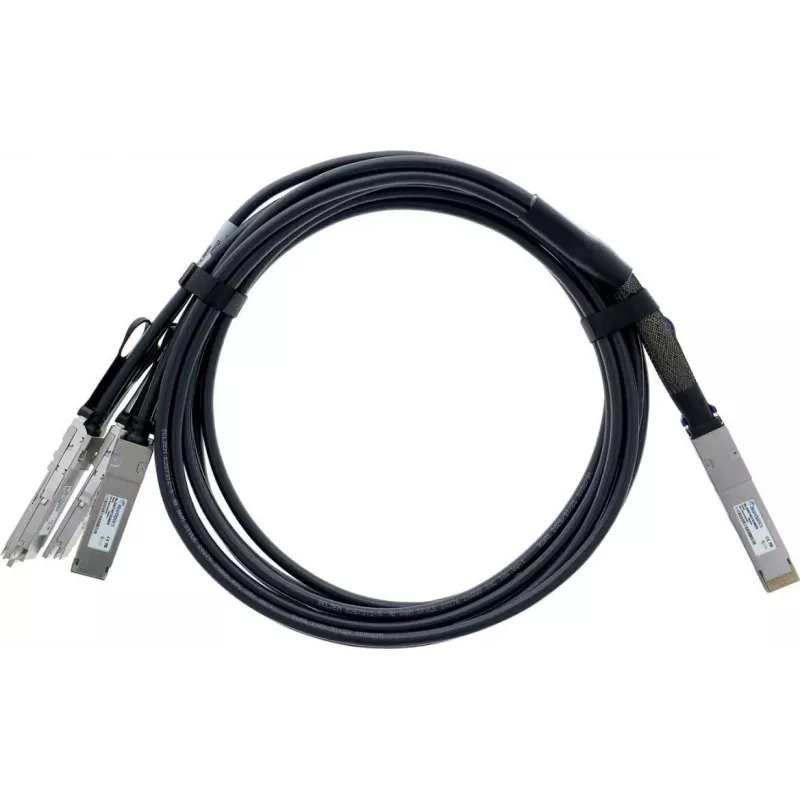

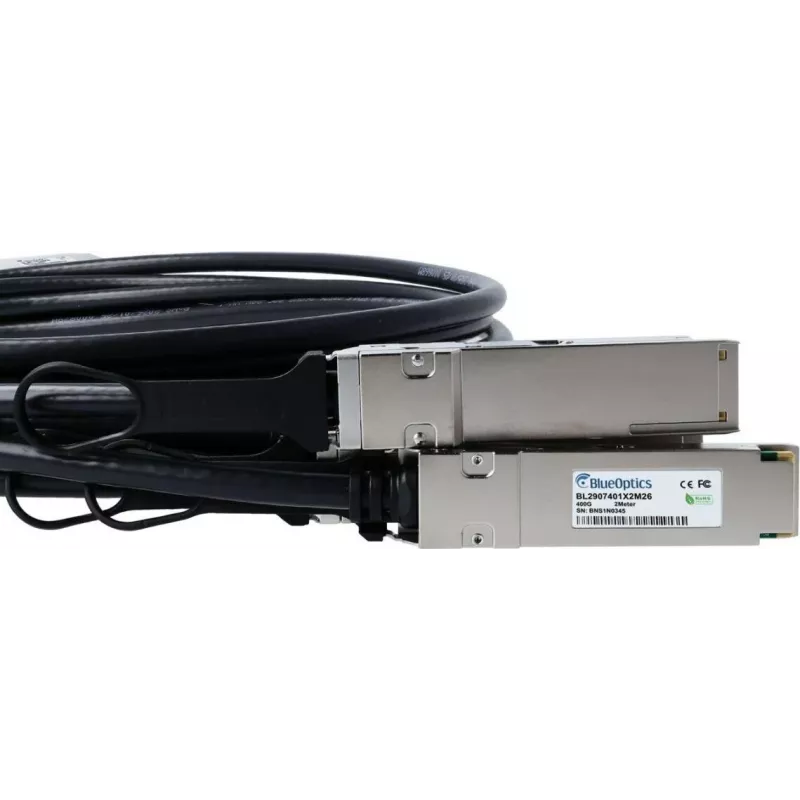

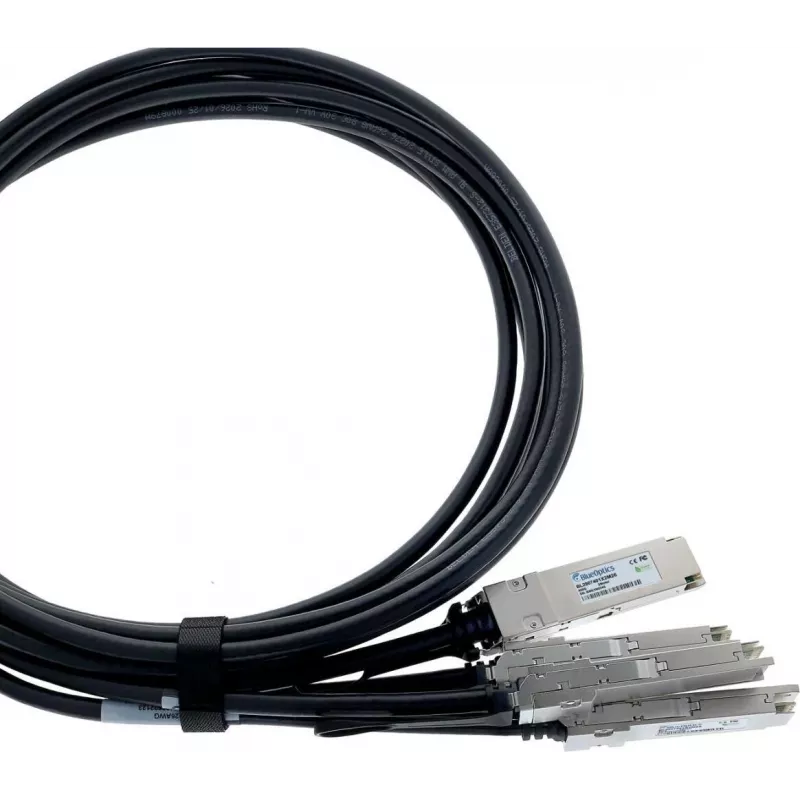

BlueLAN Juniper 720-095806 compatibel 400G QSFP-DD breakout DAC-kabel 2 m AWG26

This 400G QSFP-DD to 4x QSFP28 breakout Direct Attach Copper (DAC) cable delivers high-speed connectivity for data centers and enterprise networks. Designed for compatibility with Juniper 720-095806, it provides a reliable 2-meter link with low power consumption and minimal latency.

Advantages

Passive copper design consumes less than 0.5W, reducing operational costs. The breakout configuration connects one QSFP-DD port to four QSFP28 ports, maximizing port utilization. AWG26 wire gauge balances flexibility and signal integrity over 2 meters.

Suitable for

• High-density switch-to-server interconnects
• 400G to 4x 100G link aggregation
• Juniper network environments requiring 720-095806 compatibility

Key specifications

• Data rate: 400 Gbps (8x 50G PAM4 on QSFP-DD side)
• Connector A: QSFP-DD
• Connector B: 4x QSFP28 (each 100G NRZ)
• Cable length: 2 meters
• Wire gauge: AWG26
• Impedance: 100 Ohm
• Operating temperature: 0°C to 70°C
• Jacket material: PVC

Recommendations

Verify compatibility with your Juniper equipment before deployment. For longer distances, consider active optical cables.
