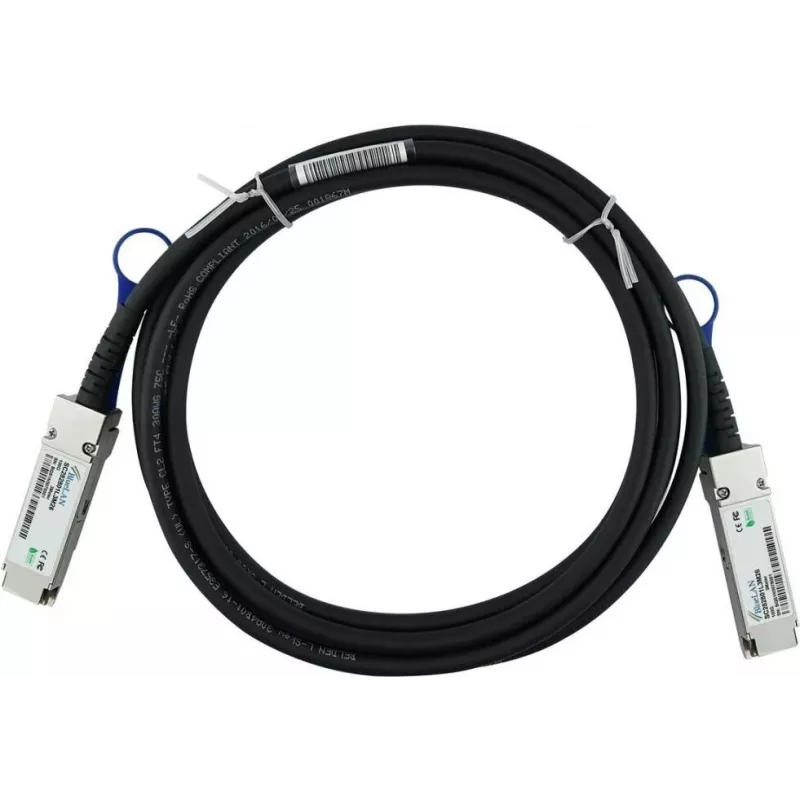

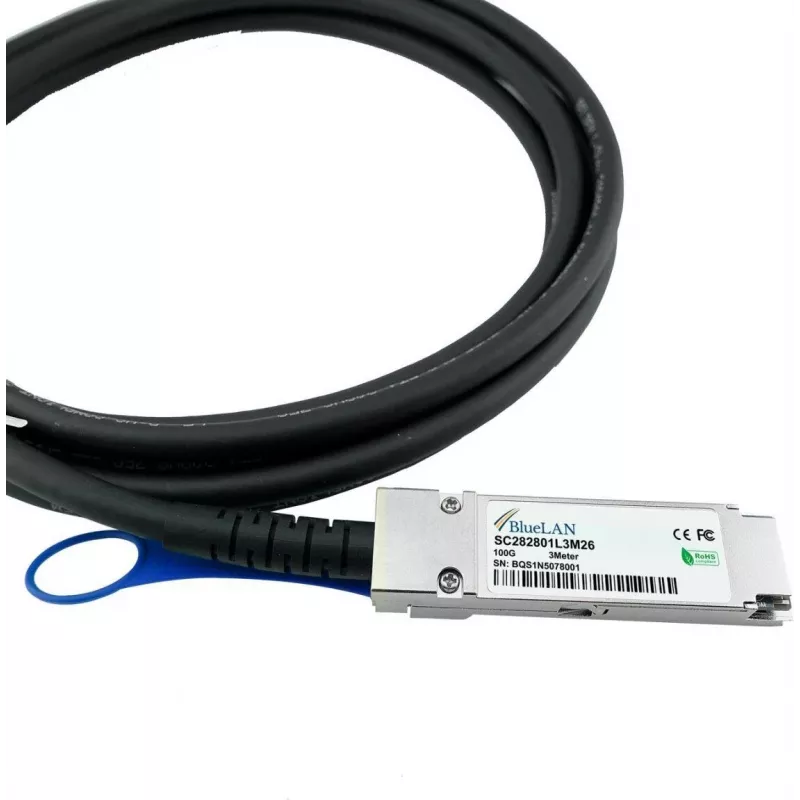

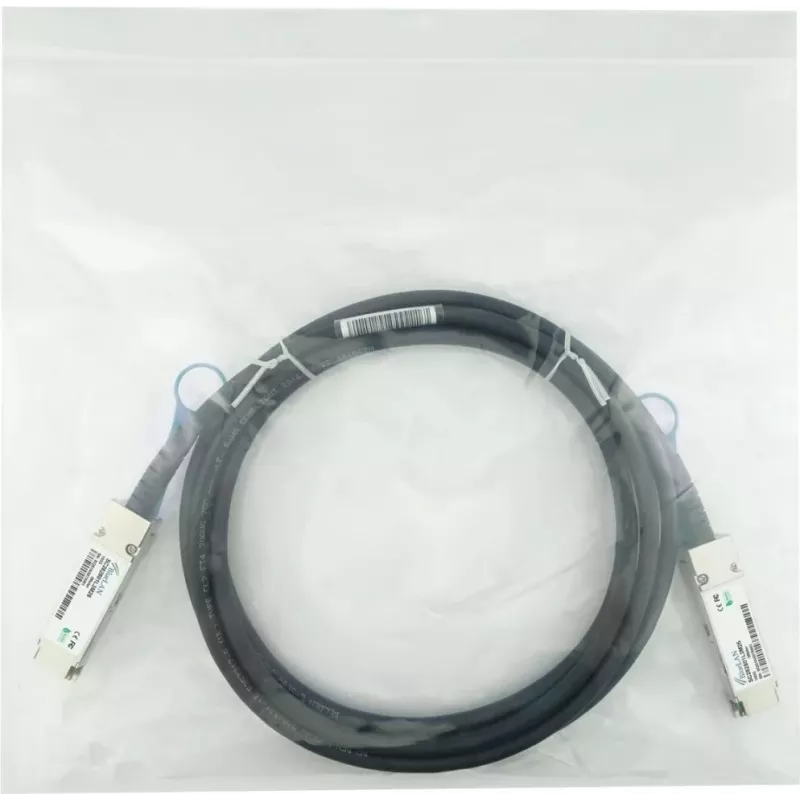

BlueLAN MCP1600-C003-BL compatibele QSFP28 Direct Attach kabel, 100GBASE-CR4, InfiniBand EDR, 26AWG, 3 meter

The BlueLAN MCP1600-C003-BL is a high-performance, passive twinax copper Direct Attach Cable (DAC) designed for 100 Gigabit Ethernet and InfiniBand EDR applications. It is fully compatible with Mellanox MCP1600-C003 and NVIDIA networking equipment, providing reliable, low-latency connectivity for data centers and high-performance computing (HPC) environments.

Advantages

This DAC cable offers a cost-effective and energy-efficient alternative to optical transceivers, with low power consumption and no need for additional power supplies. Its passive design ensures zero power usage, while the 26 AWG construction provides excellent signal integrity over the 3-meter length. Hot-pluggable QSFP28 connectors make installation and replacement quick and easy.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Enterprise networking
• Cloud computing environments
• Storage area networks (SAN)

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Connector Type: QSFP28 to QSFP28
• Data Rate: 100 Gbps
• Ethernet Standard: 100GBASE-CR4
• InfiniBand Standard: EDR (Enhanced Data Rate)
• Cable Length: 3 Meters
• Wire Gauge: 26 AWG
• Cable Type: Passive Twinax Copper
• Number of Lanes: 4
• Transmission Medium: Copper
• Hot-Pluggable: Yes
• Compatibility: Mellanox MCP1600-C003, NVIDIA

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible QSFP28 ports. This cable is ideal for short-reach, high-speed connections within racks or between adjacent racks. Always handle with care to avoid damaging the connectors or cable.
