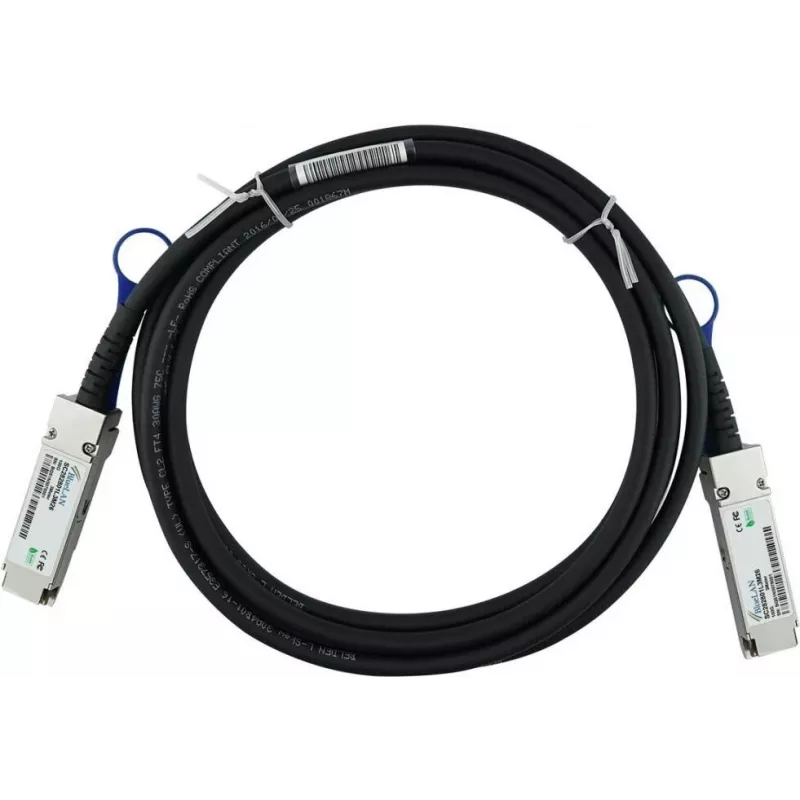

BlueLAN MCP1600-C03A-BL QSFP28 Direct Attach kabel, 100GBASE-CR4, 26AWG, 3 meter

The BlueLAN MCP1600-C03A-BL is a high-performance QSFP28 Direct Attach Cable (DAC) designed for 100 Gigabit Ethernet applications. It is compatible with NVIDIA MCP1600-C03A and offers a cost-effective, low-power solution for short-reach interconnects in data centers and high-performance computing environments.

Advantages

This passive copper cable provides reliable 100 Gbps connectivity with minimal latency and power consumption. Its 26 AWG construction ensures flexibility and durability, while the 3-meter length is ideal for rack-to-rack or rack-to-switch connections. The cable is hot-pluggable and RoHS compliant, meeting industry standards for quality and environmental safety.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Network switches and routers with QSFP28 ports
• Storage area networks (SAN)

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Connector Type: QSFP28 to QSFP28
• Data Rate: 100 Gbps
• Ethernet Standard: 100GBASE-CR4
• Cable Length: 3 Meter
• Wire Gauge: 26 AWG
• Cable Material: Passive Copper
• Compliance: SFF-8665 (QSFP28 MSA), IEEE 802.3bj
• Hot-Pluggable: Yes
• RoHS Compliant: Yes

Recommendations

For optimal performance, ensure your network equipment supports QSFP28 interfaces and 100GBASE-CR4 standards. This cable is an ideal choice for building high-speed, low-latency networks in enterprise and cloud data centers.
