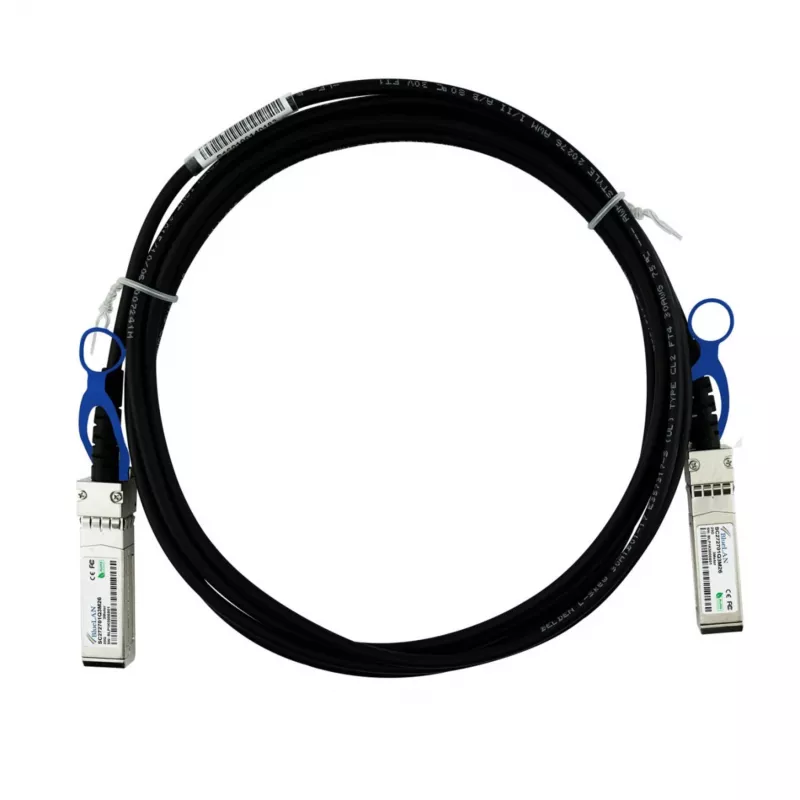

BlueLAN SFP28-DAC-5M-SG-BL compatibele Synology 25GBASE-CR passieve SFP28 Direct Attach Copper-kabel, 5m

The BlueLAN SFP28-DAC-5M-SG-BL is a high-performance passive Direct Attach Copper (DAC) cable designed for 25 Gigabit Ethernet connectivity. It is fully compatible with Synology SFP28-DAC-5M and provides a cost-effective, low-latency solution for short-range interconnects in data centers, NAS, and server environments.

Advantages

This passive DAC cable offers reliable 25 Gbps data transfer with minimal power consumption (<0.1W) and zero signal degradation over 5 meters. Its hot-swappable SFP28 connectors ensure easy installation and maintenance, while the 26 AWG wire gauge and PVC jacket provide durability and flexibility.

Suitable for

• Data center top-of-rack to server connections
• Network Attached Storage (NAS) interconnects
• High-speed server-to-switch links
• 25GBASE-CR compliant networks

Key specifications

• Cable Type: Direct Attach Copper (DAC) Passive
• Data Rate: 25 Gbps
• Ethernet Standard: 25GBASE-CR
• Cable Length: 5 meters
• Connectors: SFP28 to SFP28
• Wire Gauge: 26 AWG
• Impedance: 100 Ohm
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Power Consumption: <0.1W
• Hot-Swappable: Yes
• RoHS Compliant: Yes

Recommendations

For optimal performance, use this cable with compatible SFP28 ports on switches, servers, and storage devices. Ensure proper handling to avoid damage to connectors.
