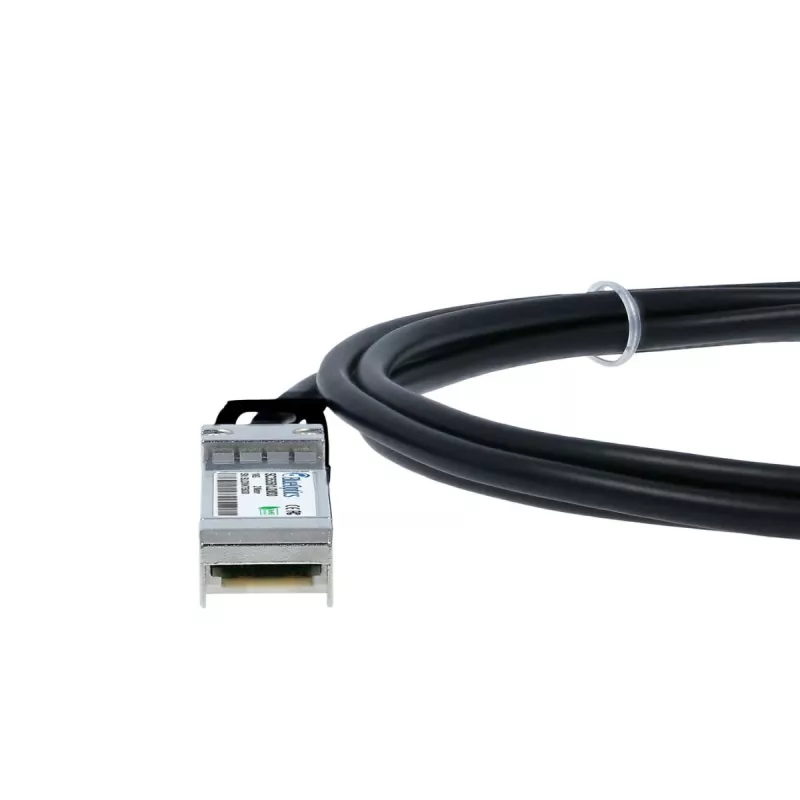

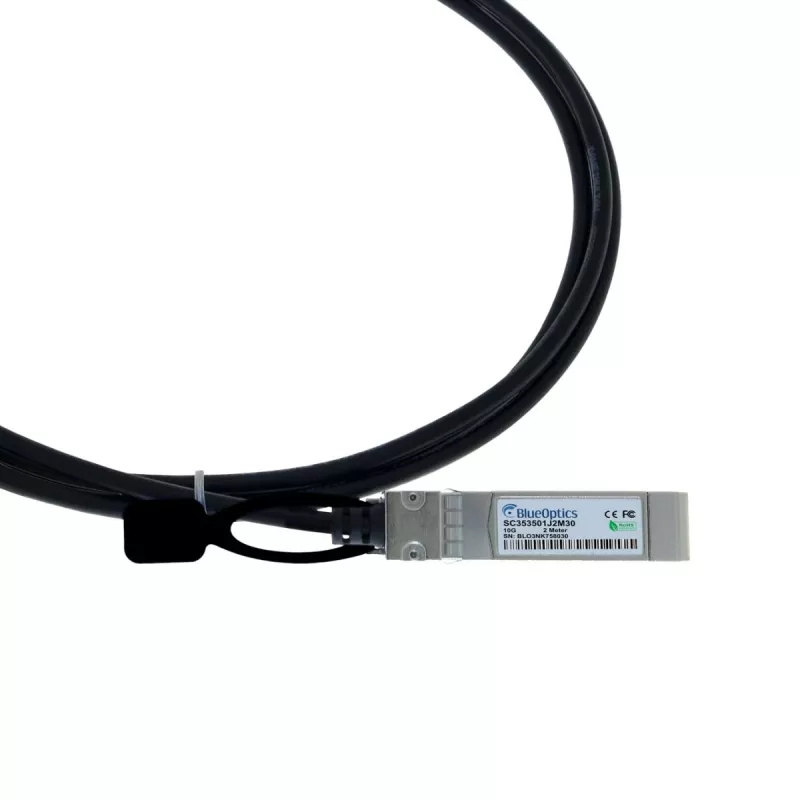

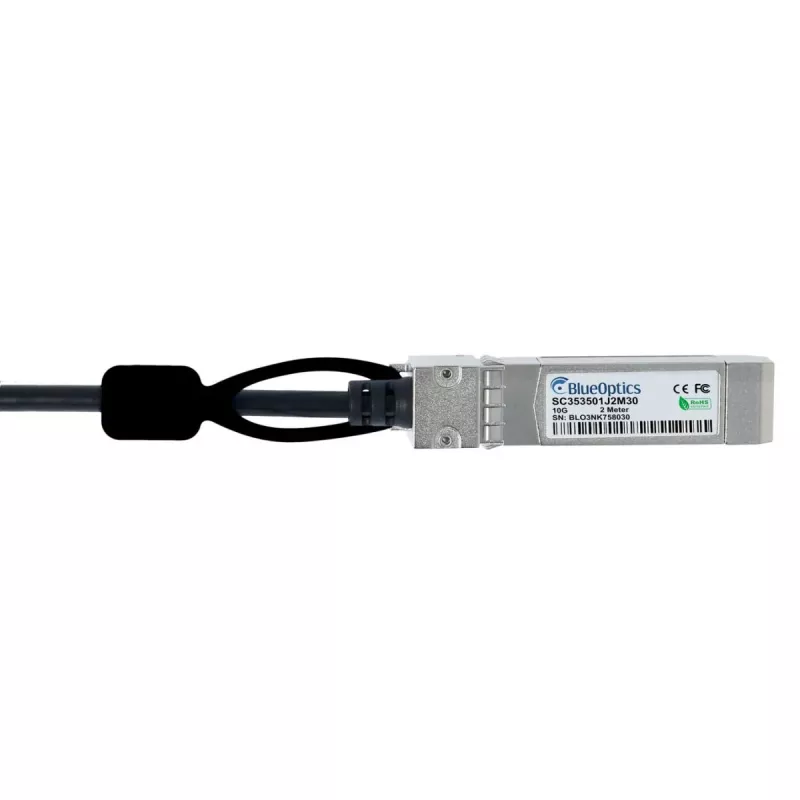

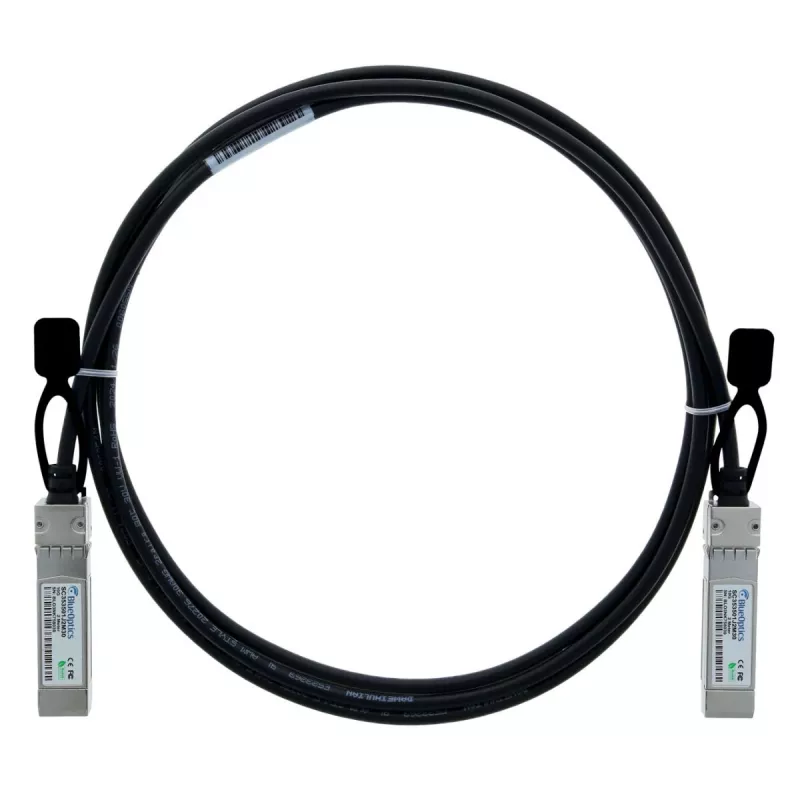

BlueOptics 942280004 Compatibele BlueLAN DAC SFP+ kabel 4m (24 AWG) - passief 10GbE

The BlueOptics 942280004 is a high-quality, passive Direct Attach Copper (DAC) cable designed for 10 Gigabit Ethernet connections. It is fully compatible with BlueLAN and MSA-compliant SFP+ ports, making it an ideal solution for data centers, SAN, NAS, and HPC environments. With a length of 4 meters and 24 AWG construction, this cable ensures reliable, low-latency performance with minimal power consumption.

Advantages

This DAC cable offers a cost-effective and energy-efficient alternative to fiber optic transceivers and copper cabling. Its passive design consumes less than 0.1W, reducing overall power usage in high-density deployments. The hot-pluggable SFP+ connectors allow for easy installation and replacement without network downtime. The durable PVC jacket provides protection against physical damage and ensures long-term reliability.

Suitable for

• Data center interconnects
• Storage Area Networks (SAN)
• Network Attached Storage (NAS)
• High-Performance Computing (HPC) clusters
• 10GbE switch to server connections

Key specifications

• Cable Type: Direct Attach Cable (DAC)
• Connector Type: SFP+ to SFP+
• Cable Length: 4 meters
• Data Rate: 10 Gigabit Ethernet (10GbE)
• Cable Configuration: Passive
• AWG: 24 AWG
• Impedance: 100 Ohm
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C
• Compliance: RoHS, CE, FCC, MSA
• Power Consumption: < 0.1W
• Hot-Pluggable: Yes
• Cable Color: Black
• Voltage: 3.3V
• Protocol Support: Ethernet, Fibre Channel, InfiniBand

Recommendations

For optimal performance, ensure that both connected devices support SFP+ 10GbE standards. This cable is ideal for short-range, high-speed connections within racks or between adjacent racks. Always handle the cable with care to avoid damaging the connectors.
