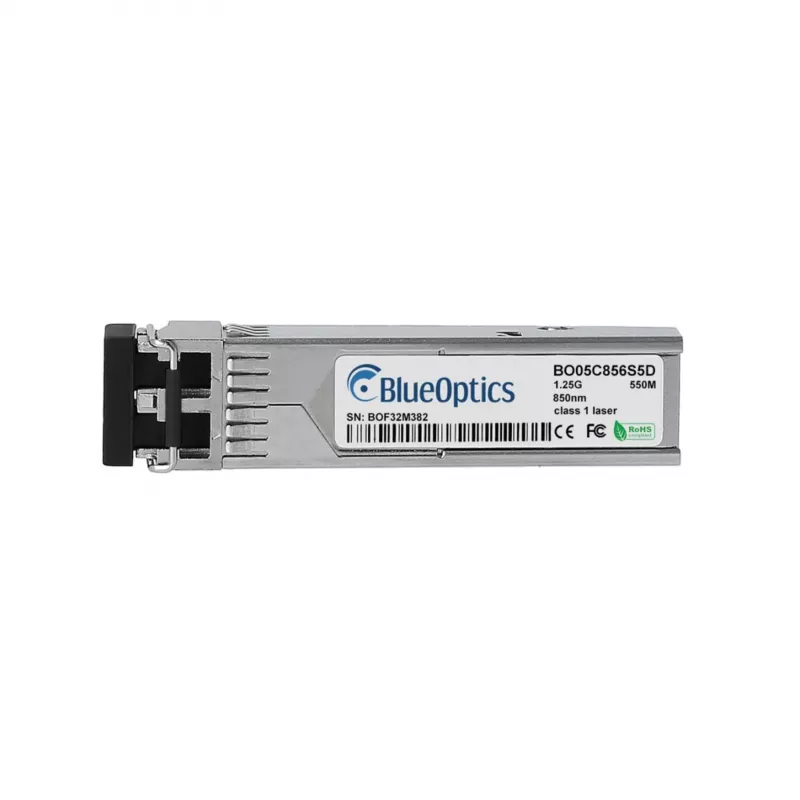

BlueOptics BO05C856S5D Compatible Ruckus E1MG-SX-OM-T SFP-transceiver, LC Duplex, 1000BASE-SX, Multi-Mode, 550m

The BlueOptics BO05C856S5D is a high-performance SFP transceiver designed to be fully compatible with Ruckus E1MG-SX-OM-T switches and routers. This 1000BASE-SX module delivers reliable Gigabit Ethernet connectivity over multi-mode fiber, supporting distances up to 550 meters. It is an ideal solution for enterprise networks, data centers, and campus environments requiring cost-effective, hot-swappable optical interfaces.

Advantages

This BlueOptics transceiver offers seamless compatibility with Ruckus equipment while providing significant cost savings compared to OEM modules. It supports Digital Diagnostics Monitoring (DDM/DOM) for real-time performance tracking, ensuring optimal network operation. The rugged commercial temperature range (0°C to 70°C) and low power consumption (<1.0W) make it suitable for a wide variety of deployment scenarios.

Suitable for

• Gigabit Ethernet connections in enterprise LANs
• Fiber Channel storage area networks
• Data center interconnects
• Ruckus networking equipment upgrades or replacements

Key specifications

• Form Factor: SFP (Small Form-Factor Pluggable)
• Data Rate: 1.25 Gbps
• Wavelength: 850 nm
• Max Cable Distance: 550 m
• Connector Type: LC Duplex
• Fiber Type: Multi-Mode Fiber (MMF) – OM1, OM2, OM3, OM4
• Standard: IEEE 802.3z 1000BASE-SX
• DDM/DOM Support: Yes
• Compatibility: Ruckus E1MG-SX-OM-T (OEM Equivalent)
• Operating Temperature: 0°C to 70°C
• Power Consumption: < 1.0 W
• Hot-Swappable: Yes
• Laser Type: VCSEL
• MSA Compliant: Yes
• Certifications: CE, FCC, RoHS

Recommendations

For optimal performance, use with multi-mode fiber patch cables (OM3/OM4 recommended for longer distances). Ensure your network equipment supports SFP modules and 1000BASE-SX standard. This transceiver is a direct replacement for the Ruckus E1MG-SX-OM-T.
