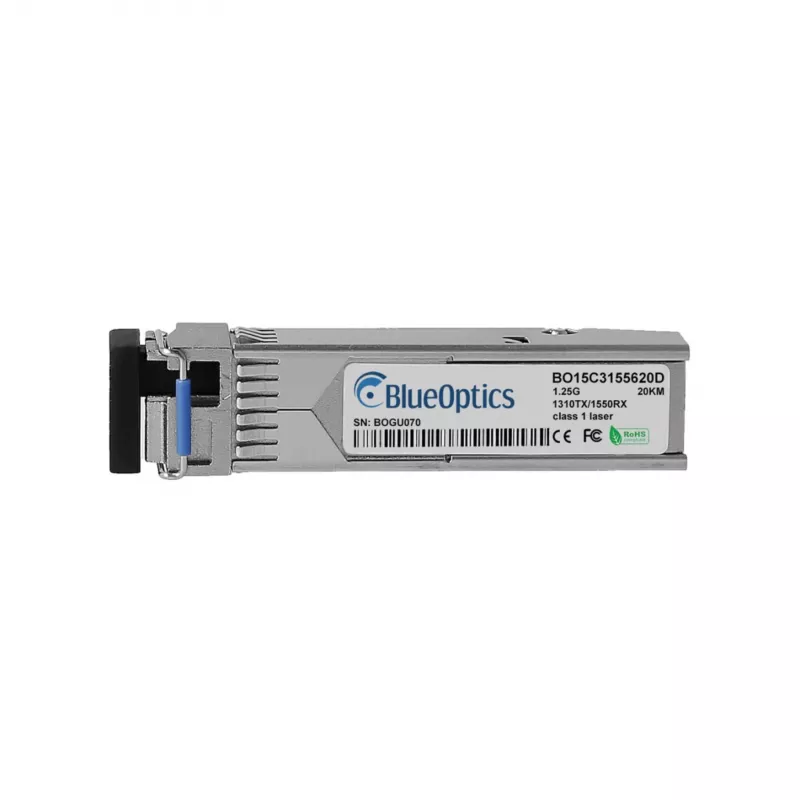

BlueOptics BO15C3155620D compatibele TP-Link SFP-BXU35-20KM SFP-transceiver, LC Simplex, 1000BASE-BX-U, 20 km, singlemodevezel

The BlueOptics BO15C3155620D is a high-performance SFP transceiver designed for compatibility with TP-Link SFP-BXU35-20KM equipment. It operates over a single strand of single-mode fiber, providing bi-directional data transmission at 1.25 Gbps for distances up to 20 km. This transceiver is ideal for Gigabit Ethernet applications in enterprise networks, data centers, and telecommunications.

Advantages

Cost-effective alternative to OEM modules with full compatibility and performance. Supports Digital Diagnostic Monitoring (DDM) for real-time monitoring of operating parameters. Hot-pluggable design allows for easy installation and maintenance without network downtime.

Suitable for

• Gigabit Ethernet networks (1000BASE-BX-U)
• Point-to-point fiber optic links
• Enterprise and campus networks
• Telecommunications and ISP infrastructure

Key specifications

• Form Factor: SFP
• Data Rate: 1.25 Gbps
• Standard: 1000BASE-BX-U
• Max Distance: 20 km
• Fiber Type: Single-mode (OS1/OS2)
• Connector: LC Simplex
• Wavelength Tx: 1310 nm / Rx: 1550 nm
• Bi-directional: Yes
• DDM/DOM: Yes
• Operating Temperature: 0°C to 70°C
• Power Consumption: <1 W
• Hot-Pluggable: Yes
• Certifications: CE, FCC, RoHS

Recommendations

For optimal performance, use with single-mode fiber cables (OS1/OS2) and ensure proper cleaning of LC connectors. This transceiver is compatible with TP-Link switches and routers that support SFP-BXU35-20KM modules.
