BlueOptics Cisco QSFP28-LR4-AJ compatibele QSFP28-transceiver, 100GBASE-LR4, LC-duplex, singlemode, 10 km, 0-70 °C, DDM

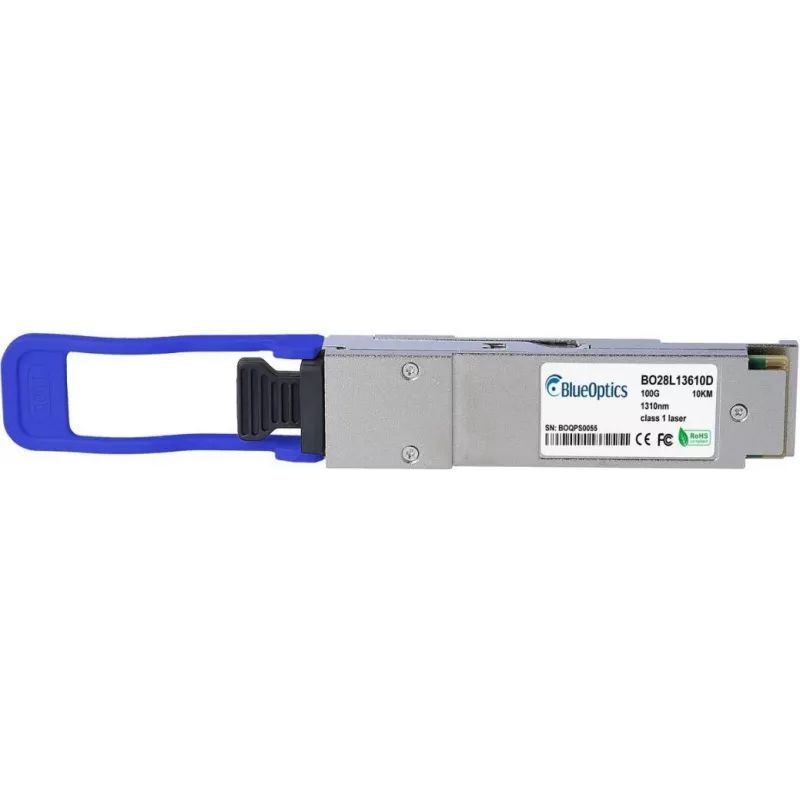

The BlueOptics BO28L13610D QSFP28 transceiver is a high-performance, hot-pluggable module designed for 100 Gigabit Ethernet applications. It is fully compatible with Cisco QSFP28-LR4-AJ interfaces and delivers reliable connectivity over singlemode fiber (SMF) at distances up to 10 km. This transceiver utilizes four WDM channels (LAN WDM) to achieve 100 Gbps data rate, supporting 100GBASE-LR4 standard. It features LC duplex connector, digital diagnostic monitoring (DDM), and operates in a temperature range of 0°C to +70°C. Ideal for data center, enterprise, and service provider networks.

Advantages

Cost-effective alternative to OEM modules with full compatibility and performance. Hot-swappable design minimizes network downtime. DDM enables real-time monitoring of optical parameters for proactive maintenance. Low power consumption (<4.5W) reduces operational costs.

Suitable for

• 100 Gigabit Ethernet links in data centers
• Enterprise core and distribution networks
• Service provider aggregation and access networks
• High-bandwidth interconnects between switches, routers, and servers

Key specifications

• Form Factor: QSFP28
• Data Rate: 100 Gbps
• Ethernet Standard: 100GBASE-LR4
• Connector: LC Duplex
• Fiber Type: Singlemode (OS2)
• Wavelength: 4x WDM (LAN WDM)
• Maximum Reach: 10 km
• Operating Temperature: 0°C to +70°C
• DDM: Yes
• Power Consumption: <4.5W typical
• Hot-Pluggable: Yes
• Compliance: RoHS, CE, FCC

Recommendations

For optimal performance, use with singlemode fiber (OS2) and ensure proper cleaning of LC connectors. This module is designed for use in compatible Cisco equipment; verify compatibility with your device's QSFP28 port specifications.
