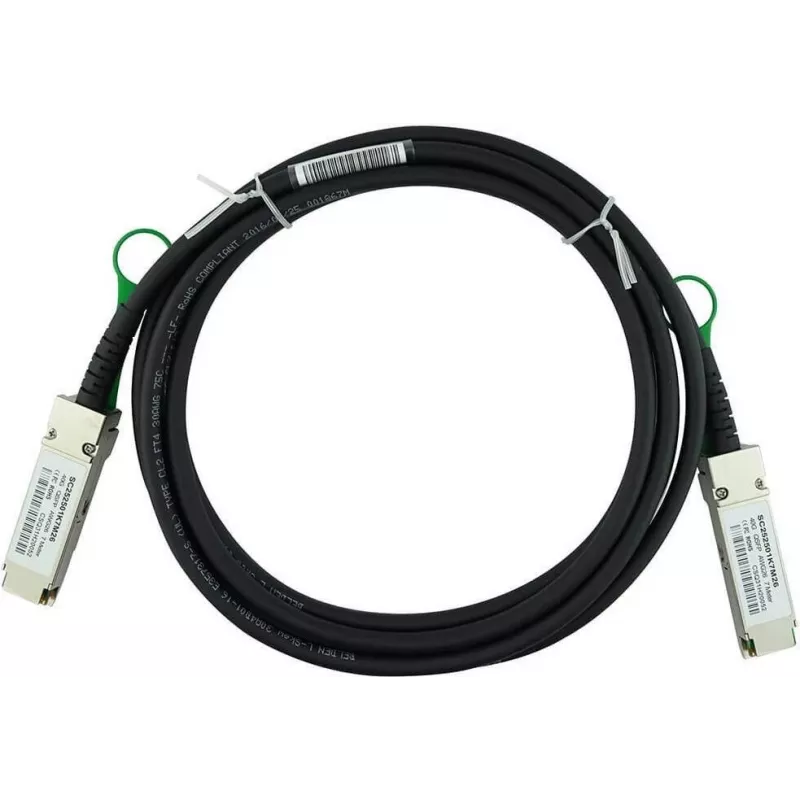

BlueOptics compatibele Edge Core ET6402-DAC-1M BlueLAN QSFP Direct Attach kabel, 40GBASE-CR4, Ethernet/Infiniband QDR, 30AWG, 1 meter (ET6402-DAC-1M-BL)

The BlueOptics ET6402-DAC-1M-BL is a high-performance, passive direct attach copper cable designed for 40 Gigabit Ethernet and InfiniBand QDR applications. It provides a cost-effective, low-power solution for short-range interconnects in data centers and high-performance computing environments.

Advantages

This cable offers reliable, low-latency connectivity with minimal power consumption (<0.5W). It is hot-swappable and compliant with SFF-8436 standards, ensuring seamless integration with Edge Core switches and other QSFP-enabled equipment. The 30AWG twinax construction delivers excellent signal integrity over 1 meter.

Suitable for

• Data center top-of-rack and end-of-row connections
• High-performance computing clusters
• Network storage systems
• Edge Core ET6402 series switches

Key specifications

• Connector Type: QSFP to QSFP
• Data Rate: 40 Gbps (40GBASE-CR4)
• Cable Length: 1 Meter
• Wire Gauge: 30 AWG
• Cable Material: Copper Twinax
• Passive Design
• Power Consumption: <0.5W
• Hot-Swappable: Yes
• Compliance: SFF-8436

Recommendations

For optimal performance, use this cable with compatible QSFP ports on Edge Core or other standards-based switches. Ensure proper cable management to avoid bending beyond the minimum bend radius.
