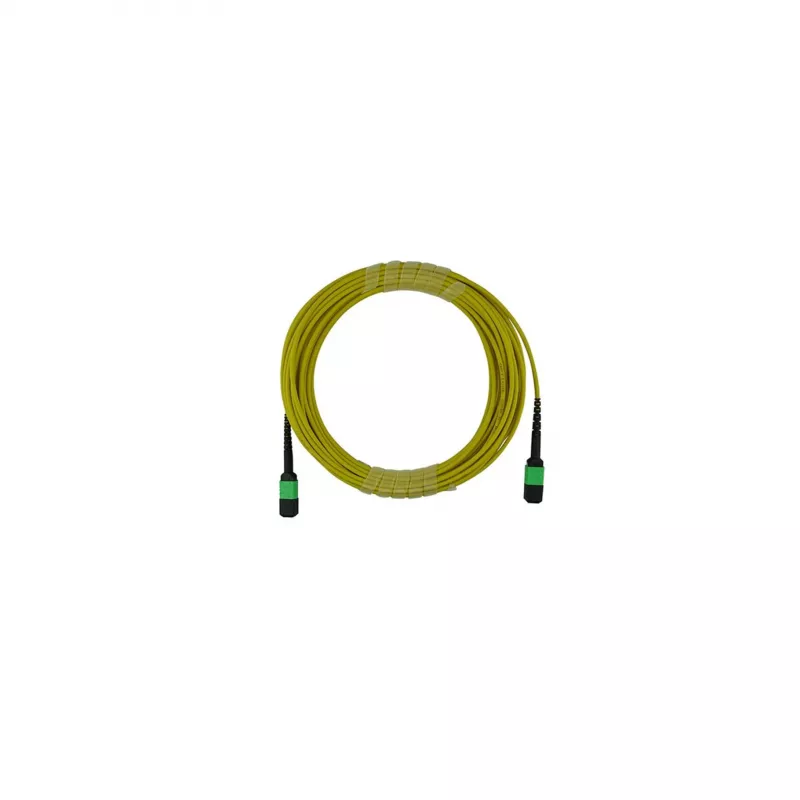

BlueOptics Compatibele HPE P45699-001 glasvezel-trunkkabel, MPO/APC naar MPO/APC, 3 meter, Singlemode OS2

The BlueOptics Compatible HPE P45699-001 fibre optic trunk cable is a high-performance, pre-terminated MPO/APC to MPO/APC single-mode OS2 cable, designed for reliable and efficient data transmission in data centres and telecommunications networks. With a length of 3 metres and 12 fibres, this trunk cable ensures low insertion loss and high return loss, meeting the demands of high-density cabling environments.

Advantages

This cable offers exceptional signal integrity with a maximum insertion loss of 0.35 dB and a minimum return loss of 60 dB, ensuring minimal signal degradation. The APC polish reduces back reflection, making it ideal for high-bandwidth applications. Its yellow jacket and green connectors provide easy identification, while compatibility with HPE P45699-001 ensures seamless integration.

Suitable for

• Data centre backbone cabling
• Telecommunications networks
• High-density fibre optic installations
• Single-mode OS2 applications

Key specifications

• Cable Type: Fibre Optic Trunk Cable
• Fibre Mode: Single-Mode (OS2)
• Connector A: MPO/APC (Male)
• Connector B: MPO/APC (Male)
• Cable Length: 3 Metres
• Fibre Count: 12 Fibres
• Connector Polish: APC
• Fibre Core Diameter: 9 µm
• Fibre Cladding Diameter: 125 µm
• Wavelength Support: 1310nm, 1550nm
• Jacket Colour: Yellow
• Connector Colour: Green
• Insertion Loss (Max): 0.35 dB
• Return Loss (Min): 60 dB
• Standards Compliance: IEC 61754-7, TIA/EIA-604-5 (FOCIS 5)

Recommendations

For optimal performance, ensure proper handling and storage of the cable. Avoid sharp bends and excessive tension during installation. This cable is a direct replacement for HPE P45699-001, offering cost savings without compromising quality.
