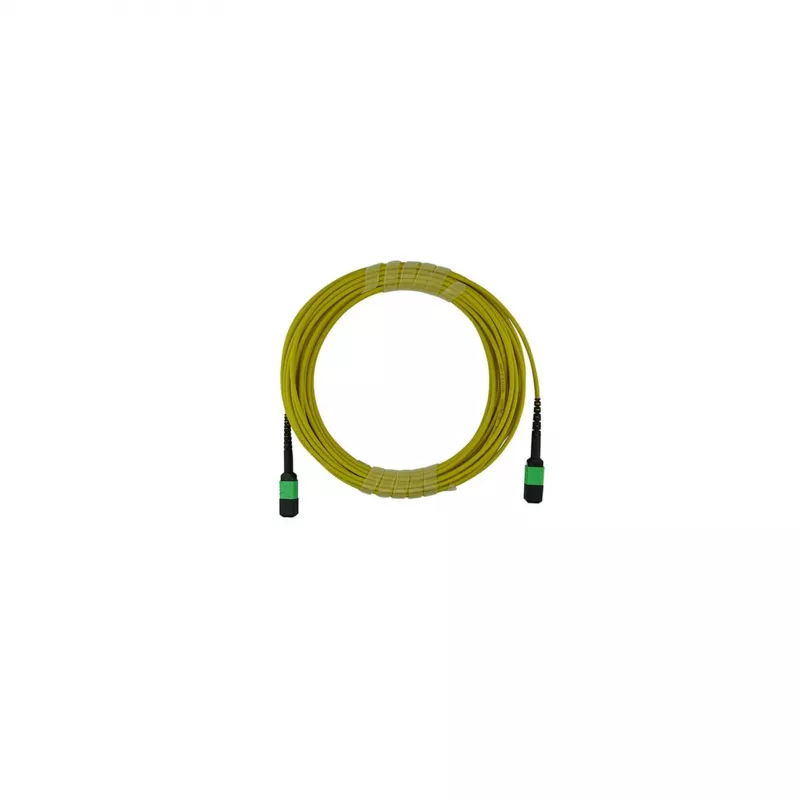

BlueOptics Compatibele HPE P45731-B22 glasvezel-trunkkabel, MPO/APC naar MPO/APC, OS2 Singlemode, 5m, 12 vezels

The BlueOptics P45731-B22 is a high-performance fibre optic trunk cable designed for compatibility with HPE P45731-B22. This cable features MPO/APC connectors on both ends, supporting 12-fibre single-mode OS2 transmission over a 5-metre length. Ideal for high-density data centre and enterprise networking environments, it ensures reliable, low-loss connectivity.

Advantages

This trunk cable offers exceptional signal integrity with low insertion loss (<0.35 dB per connector) and high return loss (>60 dB). The LSZH jacket provides safety in confined spaces, while the Type B polarity ensures correct cross-over configuration for parallel optics. Its ceramic ferrule and APC polish guarantee stable, low-reflection connections.

Suitable for

• Data centre backbone cabling
• High-density fibre patching
• Storage Area Networks (SAN)
• Local Area Networks (LAN)
• Telecommunications infrastructure

Key specifications

• Connector Type: MPO/APC to MPO/APC
• Fibre Mode: Single-mode (OS2)
• Fibre Count: 12 fibres
• Cable Length: 5 metres
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Polarity: Type B (Cross-over)
• Insertion Loss: ≤0.35 dB per connector
• Return Loss: ≥60 dB
• Operating Temperature: -20°C to 70°C
• Standards: TIA/EIA-568-C.3, IEC 61754-7, RoHS, CE

Recommendations

For optimal performance, use with compatible MPO/APC transceivers and patch panels. Ensure proper handling to maintain connector cleanliness and low loss.
