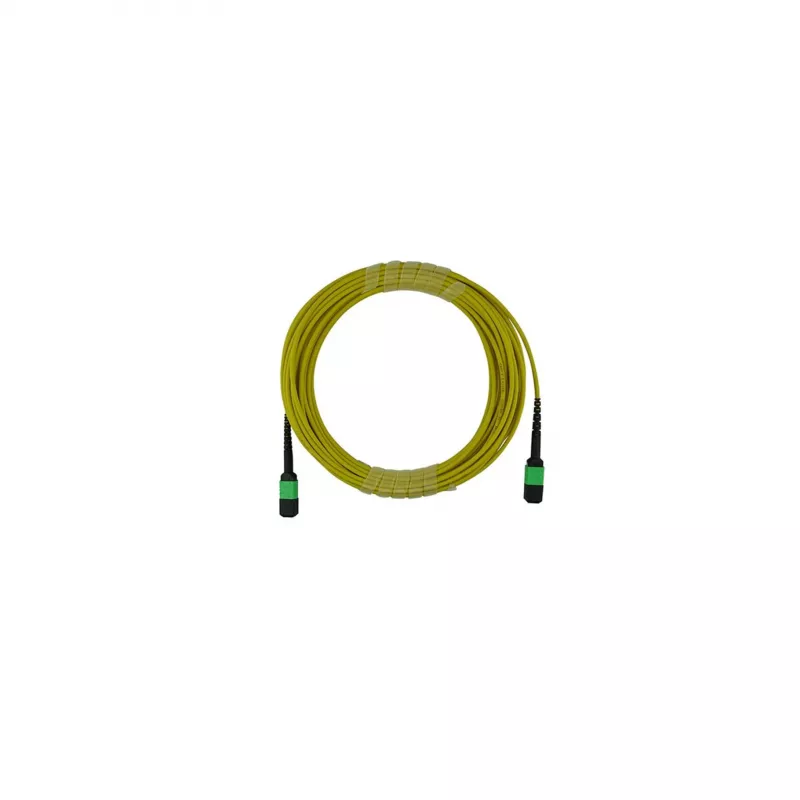

BlueOptics Compatibele HPE P45731-B25 glasvezel-trunkkabel, MPO/APC naar MPO/APC, 20m, Singlemode OS2

The BlueOptics Compatible HPE P45731-B25 fibre optic trunk cable is a high-performance, pre-terminated MPO/APC to MPO/APC single-mode OS2 cable, designed for reliable data transmission in demanding network environments. With a length of 20 metres and 12 fibres, this trunk cable ensures efficient connectivity for data centres, SANs, LANs, and telecommunications applications.

Advantages

This cable offers low insertion loss (≤0.35 dB typical) and high return loss (≥60 dB typical), ensuring excellent signal integrity. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces, while the yellow jacket colour and green APC connectors facilitate easy identification. Polarity Type B ensures correct fibre alignment for duplex transmission.

Suitable for

• Data centre backbone cabling
• Storage Area Networks (SAN)
• Local Area Networks (LAN)
• Telecommunications infrastructure
• High-speed network interconnects

Key specifications

• Connector Type: MPO/APC (Angled Physical Contact) on both ends
• Fibre Type: Single-Mode OS2 (9/125 µm)
• Number of Fibres: 12
• Cable Length: 20 metres
• Insertion Loss (Typical): ≤0.35 dB
• Return Loss (Typical): ≥60 dB
• Jacket Material: LSZH
• Jacket Colour: Yellow
• Connector Colour: Green
• Polarity: Type B
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Standards: RoHS, CE, TIA/EIA-568-C.3, IEC 61754-7

Recommendations

For optimal performance, ensure proper handling and installation of MPO connectors. Use with compatible HPE P45731-B25 equipment or other MPO/APC interfaces. This cable is a cost-effective alternative to OEM solutions, offering identical specifications and reliability.
