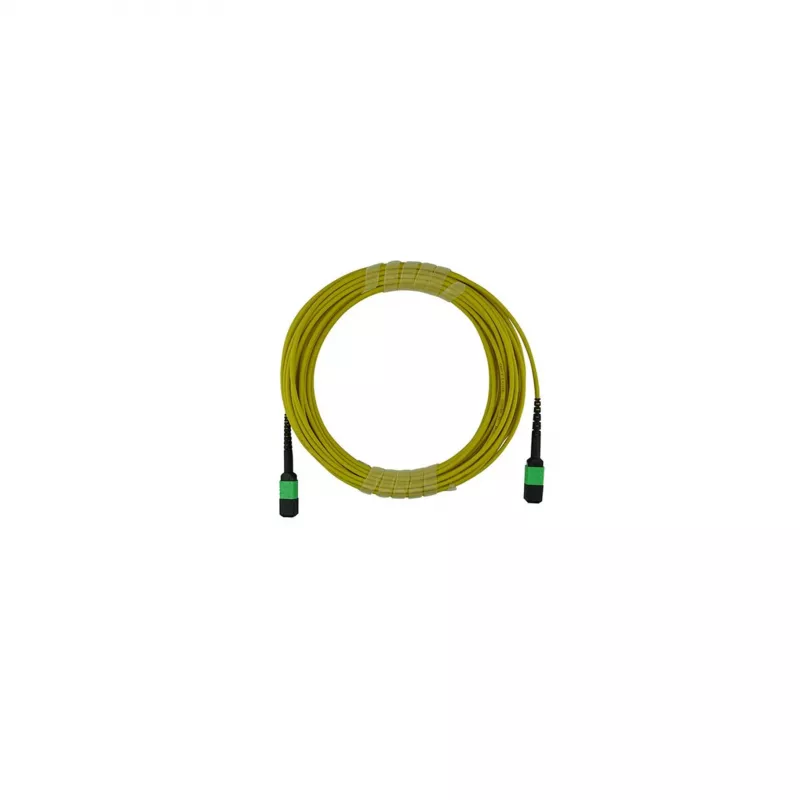

BlueOptics Compatibele NVIDIA MFP7E30-N001 glasvezel-trunkkabel, MPO/APC naar MPO/APC, Singlemode OS2, 1 meter

This BlueOptics fibre optic trunk cable is a high-performance, compatible replacement for the NVIDIA MFP7E30-N001. Designed for data centres and high-speed networks, it features MPO/APC connectors on both ends, single-mode OS2 fibre, and a 1-metre length. The cable is built with LSZH jacket material for safety and meets industry standards for low insertion loss and high return loss.

Advantages

• Compatible with NVIDIA Mellanox MFP7E30-N001 and similar devices
• Low insertion loss (≤0.35 dB) and high return loss (≥60 dB) for reliable signal transmission
• LSZH jacket reduces toxic smoke in case of fire
• 12-fibre polarity Type B (cross-over) for proper connectivity
• Yellow jacket for easy identification

Suitable for

• Data centre interconnects
• High-speed networking (40G/100G/400G)
• Fibre optic trunking applications
• NVIDIA Mellanox switch and adapter connections

Key specifications

• Cable Type: Fibre Optic Trunk Cable
• Fiber Type: Single-Mode (OS2)
• Connector A: MPO/APC (Male)
• Connector B: MPO/APC (Male)
• Cable Length: 1 Metre (3.28 ft)
• Number of Fibers: 12-Fiber
• Polarity: Type B (Cross-over)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Fiber Core Diameter: 9 µm
• Cladding Diameter: 125 µm
• Maximum Insertion Loss: ≤ 0.35 dB
• Minimum Return Loss: ≥ 60 dB
• Attenuation @ 1310nm: ≤ 0.35 dB/km
• Attenuation @ 1550nm: ≤ 0.25 dB/km
• Operating Temperature: -20°C to 70°C
• Standards Compliance: IEC 61754-7, TIA/EIA-604-5, RoHS, REACH

Recommendations

For optimal performance, ensure that both ends are clean and properly aligned before connection. This cable is ideal for high-density environments where space and reliability are critical.
