BlueOptics compatibele Synology SFP-BXU34-20KM SFP-transceiver, 1000BASE-BX, LC Simplex, 20 km

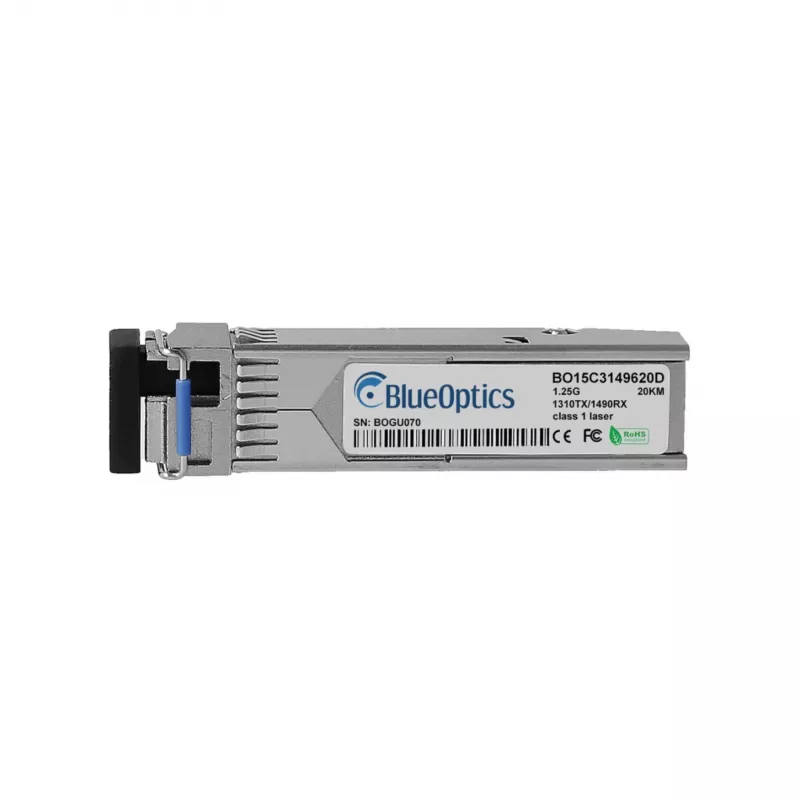

The BlueOptics BO15C3149620D is a high-performance SFP transceiver designed to be fully compatible with Synology SFP-BXU34-20KM equipment. It delivers reliable Gigabit Ethernet connectivity over single-mode fiber at distances up to 20 km. This BiDi (Bi-directional) module uses LC simplex connector and operates at 1310 nm transmit / 1490 nm receive wavelengths, making it ideal for point-to-point fiber optic networks.

Advantages

Cost-effective alternative to OEM modules without compromising performance or reliability. Hot-pluggable design allows for easy installation and maintenance. Supports Digital Diagnostics Monitoring (DDM/DOM) for real-time monitoring of operating parameters. Low power consumption (<1.0 W) helps reduce energy costs.

Suitable for

• Gigabit Ethernet networks requiring single-mode fiber connections
• Synology NAS systems and compatible switches
• Metro and access network deployments
• Long-reach fiber optic links up to 20 km

Key specifications

• Transceiver Type: SFP
• Data Rate: 1.25 Gbps
• Ethernet Standard: 1000BASE-BX
• Connector: LC Simplex
• Fiber Type: Single-Mode Fiber (SMF)
• Maximum Reach: 20 km
• Wavelength: Tx 1310 nm / Rx 1490 nm
• DDM/DOM Support: Yes
• Hot-Pluggable: Yes
• Power Consumption: <1.0 W
• Operating Temperature: 0°C to 70°C
• Compliance: RoHS, CE, FCC, Class 1 Laser

Recommendations

Ensure your network equipment supports SFP modules and 1000BASE-BX standard. Use single-mode fiber with LC connectors for optimal performance. This module is a direct replacement for Synology SFP-BXU34-20KM.
