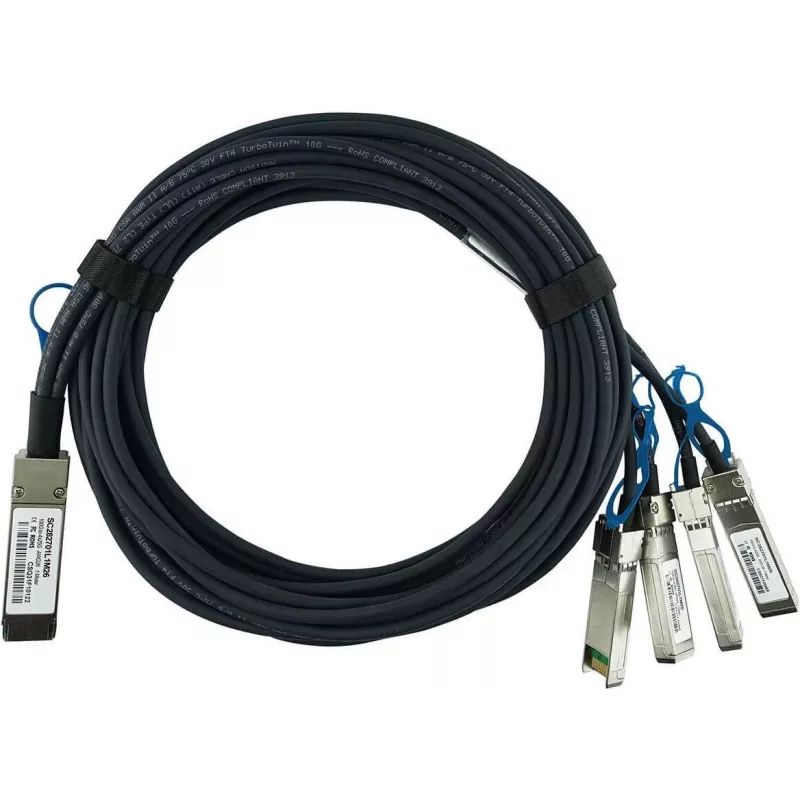

BlueOptics Compatible Nokia QSFP28-4SFP28-DAC-1M Passieve Direct Attach Breakout-kabel, 1m, 26 AWG

The BlueOptics Q28-4S28-DAC-1M-NK-BL is a high-performance passive direct attach breakout cable designed for 100GBASE-CR4 to 4x25GBASE-CR connectivity. This cable is fully compatible with Nokia equipment and provides a cost-effective solution for data center and enterprise networking applications.

Advantages

This breakout cable offers a reliable and low-power solution for high-speed data transmission. It eliminates the need for separate transceivers and fiber cabling, reducing cost and complexity. The passive design ensures zero power consumption and low latency, making it ideal for short-reach interconnects.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Enterprise network aggregation
• Top-of-rack to server connections

Key specifications

• Product Type: Direct Attach Breakout Cable (DAC)
• Cable Type: Passive Copper
• Connector A: QSFP28
• Connector B: 4x SFP28
• Aggregate Data Rate: 100 Gbps
• Per Lane Data Rate: 4x 25 Gbps
• Ethernet Standard (QSFP28): 100GBASE-CR4
• Ethernet Standard (SFP28): 25GBASE-CR
• Cable Length: 1 Meter
• Wire Gauge: 26 AWG
• Compatibility: Nokia (Compatible)
• Hot Swappable: Yes
• Compliance: SFF-8665 (QSFP28), SFF-8402 (SFP28)

Recommendations

For optimal performance, ensure that both ends of the cable are securely connected and that the host devices support the required standards. This cable is designed for indoor use only.
