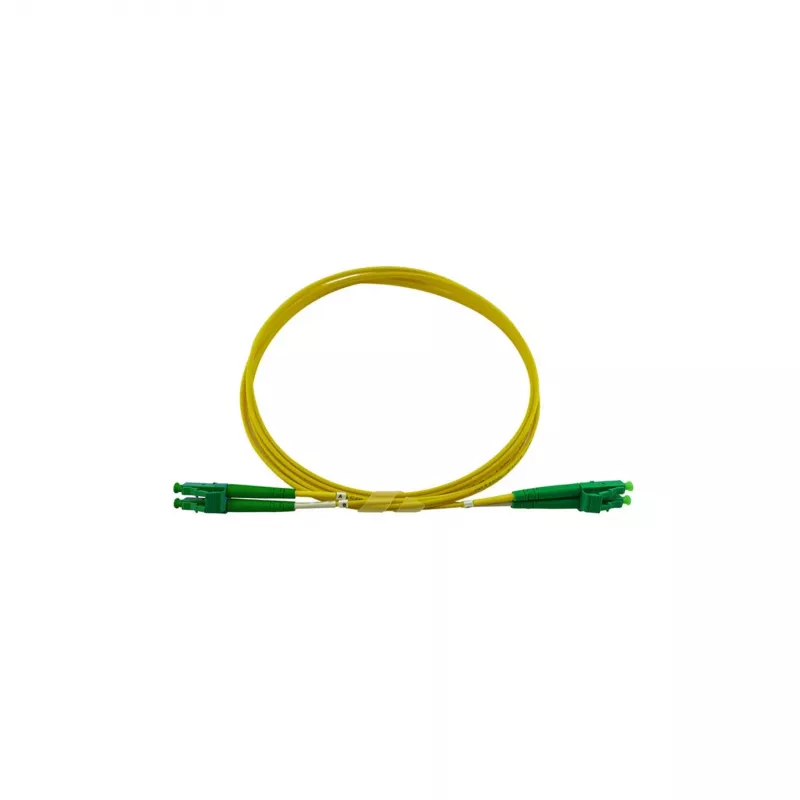

BlueOptics Duplex Fiber Optic Patch Cable LC-APC naar LC-APC Singlemode OS2 25m geel

The BlueOptics SFP3131BU25MM is a high-quality duplex fiber optic patch cable designed for reliable singlemode connections. With LC-APC connectors on both ends and a length of 25 meters, this cable ensures low insertion loss and high return loss, making it ideal for demanding network environments.

Advantages

This patch cable offers excellent performance with insertion loss ≤0.3 dB and return loss ≥60 dB. The LSZH jacket provides safety in confined spaces, and the yellow color ensures easy identification. It is compliant with RoHS and CE standards.

Suitable for

• Data centers
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• FTTx applications

Key specifications

• Cable type: Duplex fiber optic patch cable
• Fiber type: Singlemode OS2
• Connector A: LC-APC
• Connector B: LC-APC
• Connector polish: APC (Angled Physical Contact)
• Cable length: 25 m
• Core/cladding diameter: 9/125 µm
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket color: Yellow
• Cable diameter: 3.0 mm
• Insertion loss (max): ≤ 0.3 dB
• Return loss (min): ≥ 60 dB
• Operating wavelengths: 1310 nm, 1550 nm
• Attenuation @ 1310nm: ≤ 0.35 dB/km
• Attenuation @ 1550nm: ≤ 0.25 dB/km
• Operating temperature: -20°C to +70°C
• Ferrule material: Zirconia ceramic

Recommendations

For optimal performance, use with compatible singlemode SFP modules and ensure proper handling of connectors to maintain low insertion loss.
