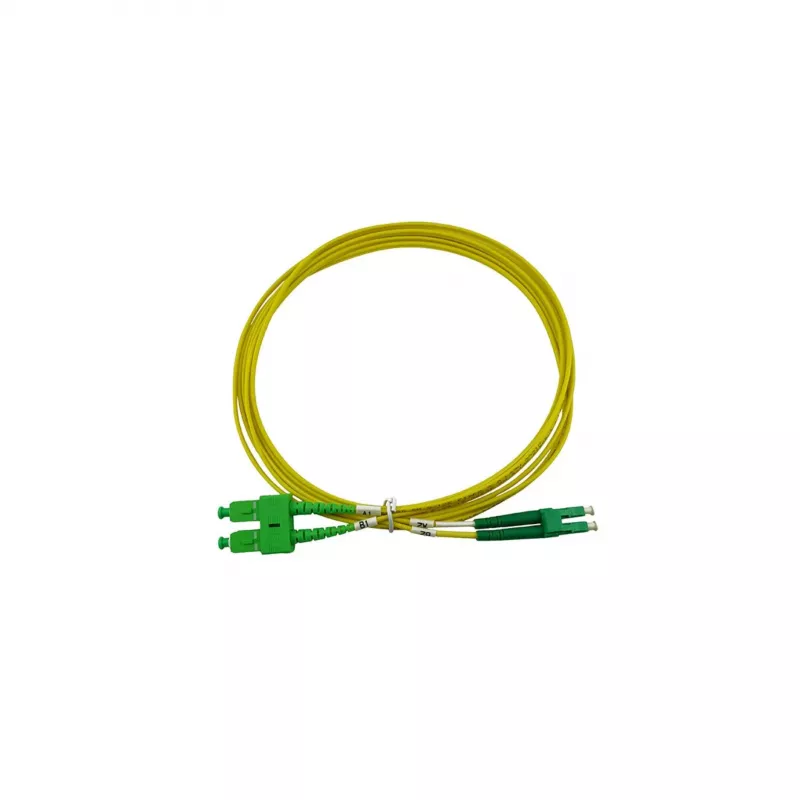

BlueOptics duplex glasvezel-patchkabel LC-APC/SC-APC singlemode OS2 1m geel

The BlueOptics Duplex Fibre Optic Patch Cable LC-APC/SC-APC Singlemode 1 metre is a high-performance, pre-terminated fibre optic cable designed for reliable, low-loss connections in data centres, telecommunications, LAN, and FTTH networks. Engineered with OS2 singlemode fibre (G.657.A1/A2) and premium APC-polished connectors, this cable ensures minimal insertion loss and excellent return loss for demanding applications.

Advantages

This patch cable offers superior signal integrity with typical insertion loss ≤0.3 dB and return loss ≥60 dB. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces, while the duplex design supports bidirectional communication. The 9/125 µm core/cladding ensures compatibility with standard singlemode equipment.

Suitable for

• Data centres requiring high-density, reliable fibre connections
• Telecommunications networks for long-haul and metro applications
• Local Area Networks (LAN) with singlemode infrastructure
• Fibre-to-the-Home (FTTH) installations

Key specifications

• Cable Type: Fibre Optic Patch Cable
• Fibre Mode: Singlemode OS2 (G.657.A1/A2)
• Connector A: LC/APC
• Connector B: SC/APC
• Connector Polish: APC (Angled Physical Contact)
• Cable Structure: Duplex (2 Fibres)
• Cable Length: 1 metre
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Colour: Yellow
• Core/Cladding Diameter: 9/125 µm
• Insertion Loss (Typical): ≤ 0.3 dB
• Return Loss (Typical): ≥ 60 dB
• Operating Wavelengths: 1310nm, 1550nm
• Attenuation @ 1310nm: ≤ 0.35 dB/km
• Attenuation @ 1550nm: ≤ 0.25 dB/km
• Ferrule Material: Zirconia Ceramic
• Minimum Bend Radius: 10 mm
• Standards Compliance: RoHS, CE, TIA/EIA-568-C.3, IEC 61754, IEC 61755

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is ideal for use with BlueOptics transceivers and other singlemode SFP modules. Store in a clean, dry environment to maintain low insertion loss.
