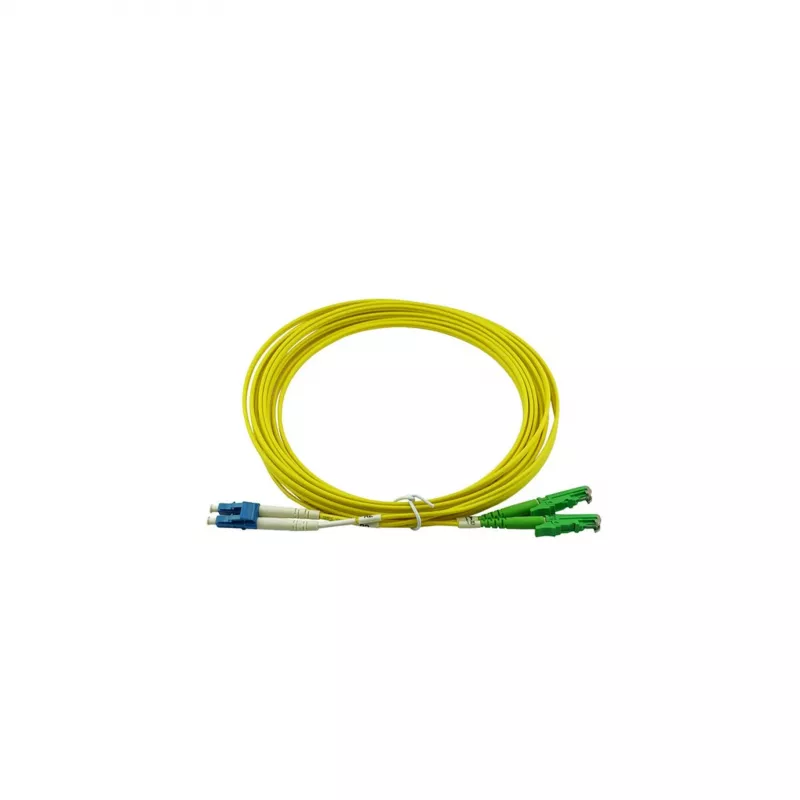

BlueOptics Duplex glasvezel-patchkabel, LC-UPC naar E2000-APC, singlemode OS2, 0,5 m, geel

The BlueOptics SFP3138BU0.5MS is a high-quality duplex fibre optic patch cable designed for reliable single-mode connections. Featuring LC-UPC to E2000-APC connectors, this 0.5-meter cable ensures low insertion loss and high return loss, making it ideal for demanding network environments.

Advantages

This cable offers exceptional performance with typical insertion loss ≤0.3 dB and return loss ≥50 dB (UPC) / ≥60 dB (APC). The LSZH jacket provides safety in confined spaces, while the durable construction ensures long-term reliability.

Suitable for

• Data centers
• Local Area Networks (LAN)
• FTTx deployments
• Telecommunications infrastructure

Key specifications

• Cable type: Fibre Optic Patch Cable, Duplex
• Fibre mode: Single Mode OS2 (E9/1)
• Connector A: LC-UPC (Ultra Physical Contact)
• Connector B: E2000-APC (Angled Physical Contact)
• Length: 0.5 m
• Core/Cladding: 9/125 µm
• Jacket: LSZH, Yellow
• Insertion loss: ≤0.3 dB (typical)
• Return loss: ≥50 dB (UPC), ≥60 dB (APC)
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Min. bend radius: 10 mm
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC and E2000 ports.
