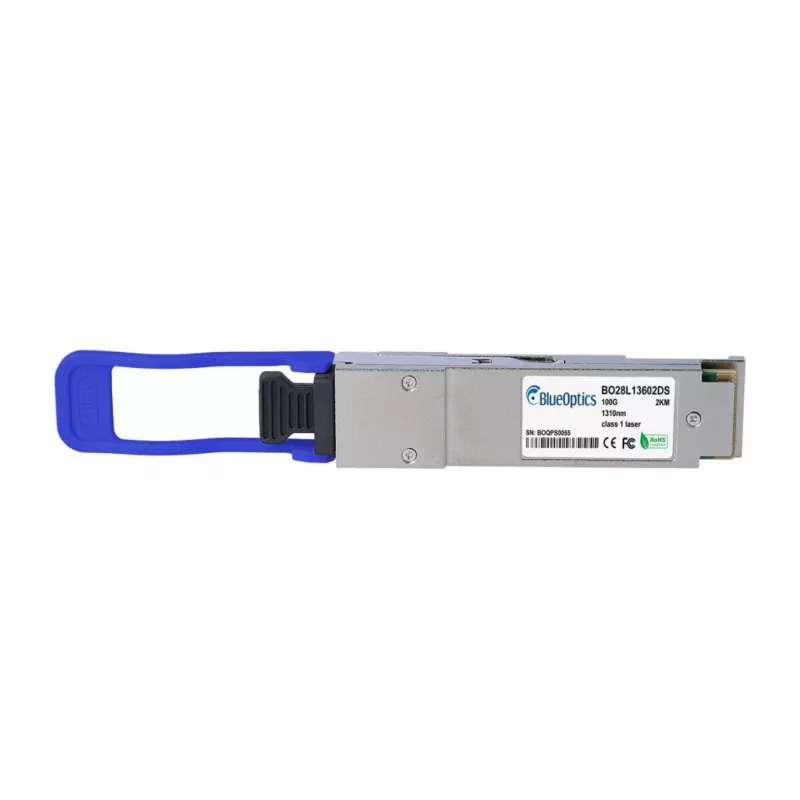

BlueOptics E100G-QSFP28-FR1 compatibele QSFP28 100GBASE-FR1 transceiver 2km LC SMF

The BlueOptics E100G-QSFP28-FR1 is a high-performance, hot-pluggable QSFP28 transceiver designed for 100 Gigabit Ethernet applications. It is fully compatible with BlueOptics QSFP28 BO28L13602DS and offers reliable connectivity for data center interconnects, enterprise networking, and high-performance computing environments. This transceiver supports 100GBASE-FR1 standard over single-mode fiber (SMF) with a reach of up to 2 km.

Advantages

This transceiver delivers exceptional performance with low power consumption (< 4.5W) and supports Digital Diagnostic Monitoring (DDM/DOM) for real-time monitoring of optical parameters. Its compact QSFP28 form factor enables high-density deployments, and the hot-pluggable design simplifies installation and maintenance. The 1310 nm DFB laser and PIN photo detector ensure reliable signal integrity over long distances.

Suitable for

• Data Center Interconnects
• Enterprise Networking
• High-Performance Computing (HPC)
• 100 Gigabit Ethernet links

Key specifications

• Form Factor: QSFP28
• Data Rate: 100 Gbps (100GbE)
• Standard: 100GBASE-FR1
• Wavelength: 1310 nm
• Max Distance: 2 km over SMF
• Connector: LC Duplex
• Transmitter: DFB Laser
• Receiver: PIN Photo Detector
• Power Consumption: < 4.5W
• Operating Temperature: 0°C to 70°C
• Compliance: IEEE 802.3cu, SFF-8665, SFF-8636, RoHS, CE, FCC
• Electrical Interface: 4x25G NRZ
• Optical Interface: 1x100G PAM4
• Voltage: 3.3V
• Hot-Pluggable: Yes

Recommendations

For optimal performance, pair this transceiver with compatible 100GBASE-FR1 switches and routers. Ensure proper fiber cleaning and handling to maintain signal quality. This module is ideal for upgrading existing 10G/40G networks to 100G.
