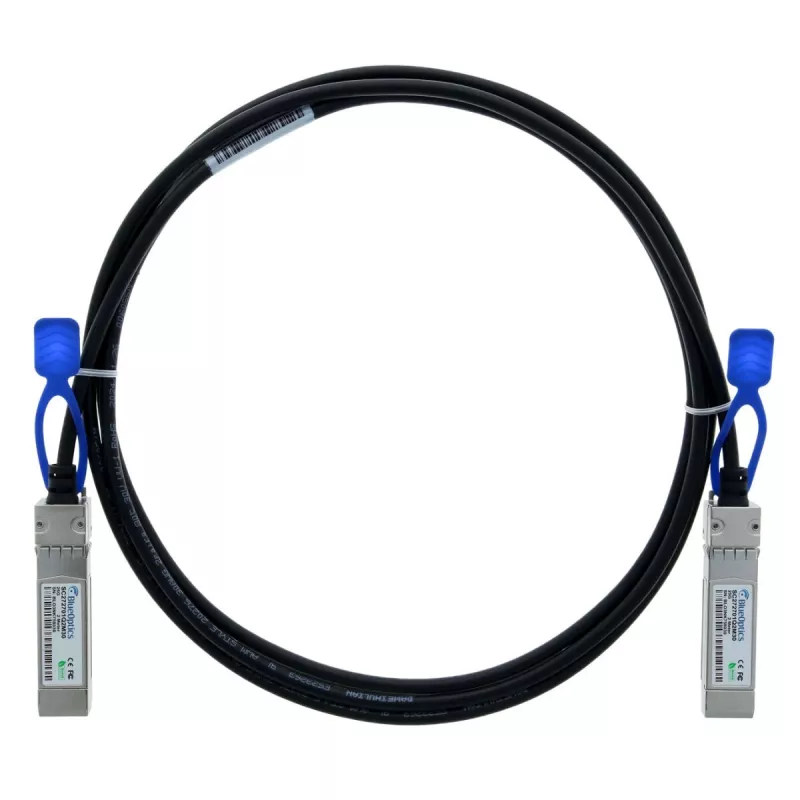

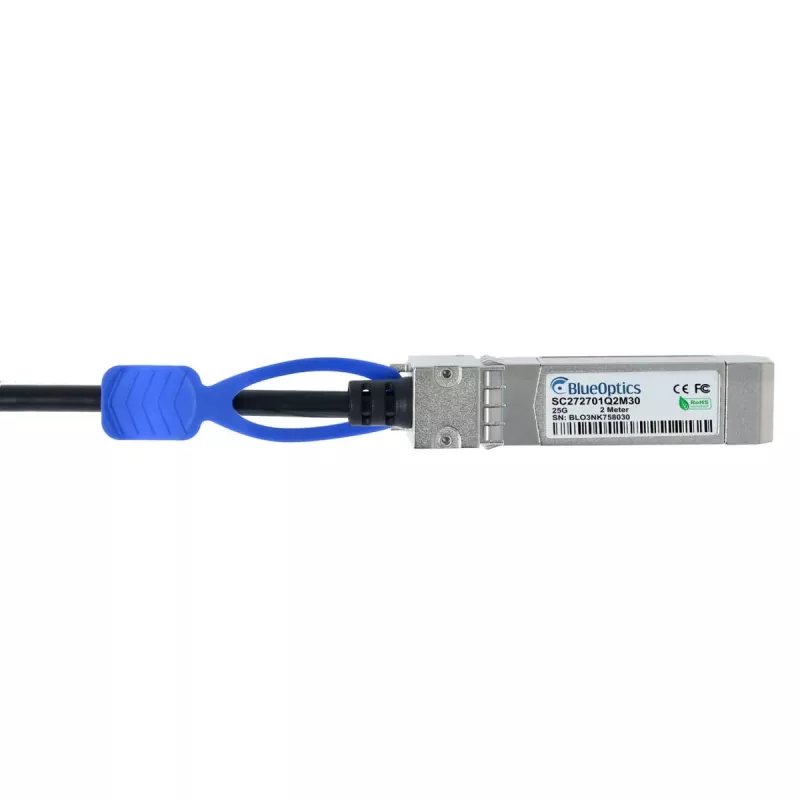

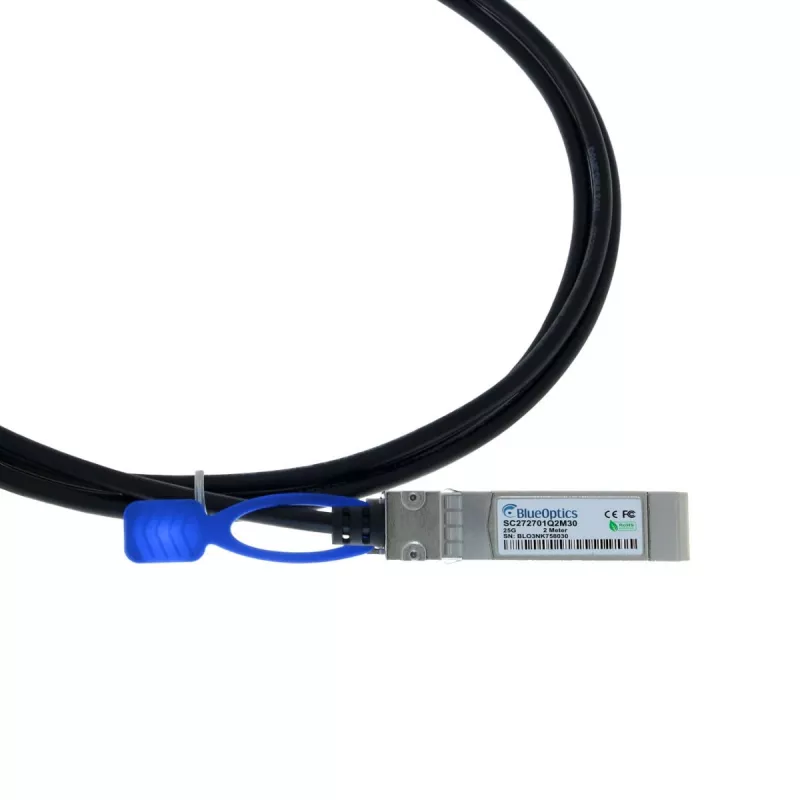

BlueOptics E25G-SFP28-TWX-P-0201 compatibele BlueLAN DAC SFP28 2m passieve Twinax-kabel

The BlueOptics E25G-SFP28-TWX-P-0201 is a high-performance, passive Direct Attach Cable (DAC) designed for 25 Gigabit Ethernet connectivity. This SFP28 twinax cable is fully compatible with BlueLAN SC272701Q2M30 equipment and meets SFP28 MSA standards, ensuring seamless integration into existing networks. With a length of 2 meters and 30 AWG wire gauge, it provides a reliable, low-latency connection for data center and enterprise applications.

Advantages

This DAC cable offers a cost-effective and energy-efficient solution for short-range 25 Gbps links. Its passive design consumes less than 0.1 W, reducing power and cooling costs. The hot-pluggable SFP28 connectors enable easy installation and replacement without network downtime. The durable PVC jacket and 100 Ohm impedance ensure signal integrity and long-term reliability.

Suitable for

• Data center top-of-rack and server-to-switch connections
• Enterprise network upgrades to 25 Gigabit Ethernet
• High-performance computing environments requiring low latency
• BlueLAN SC272701Q2M30 and other SFP28 MSA compliant equipment

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Form Factor: SFP28
• Data Rate: 25 Gbps
• Ethernet Standard: 25GBASE-CR
• Cable Type: Twinax
• Cable Length: 2 meters
• Active/Passive: Passive
• Connector Type: SFP28 to SFP28
• Wire Gauge: 30 AWG
• Jacket Material: PVC
• Impedance: 100 Ohm
• Hot-Pluggable: Yes
• Power Consumption: < 0.1 W
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• RoHS Compliant: Yes

Recommendations

For optimal performance, use this cable with SFP28 ports that support 25GBASE-CR. Ensure proper handling to avoid damage to the connectors. This cable is ideal for short-distance interconnects up to 2 meters.
