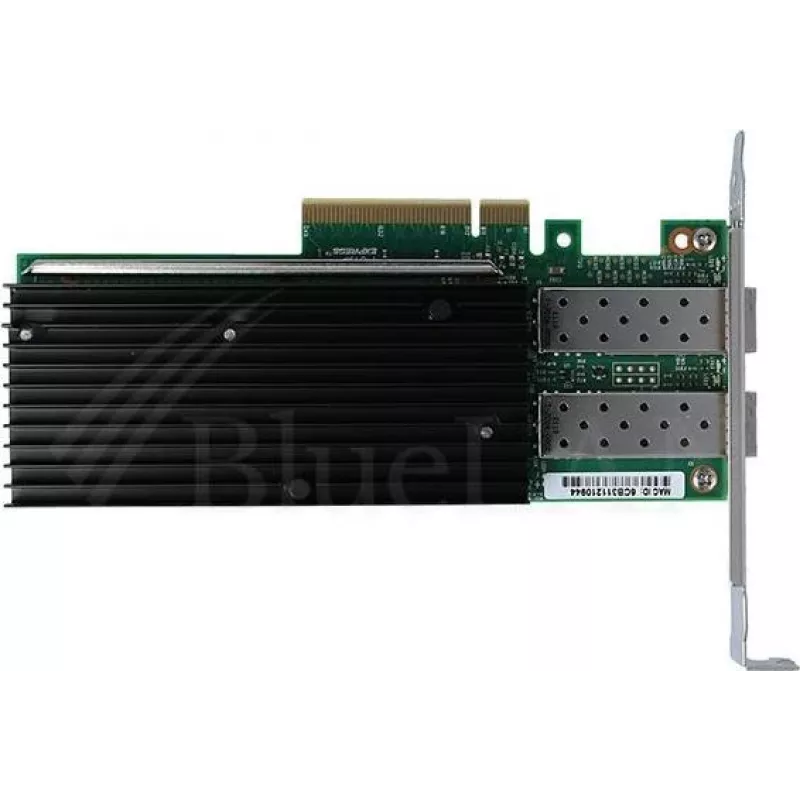

BlueOptics E810-XXVAM2-gebaseerde Ethernet-netwerkkaart 25G dual-port SFP28 (E810XXVAM2-2BP-BO)

The BlueOptics E810-XXVAM2-based Ethernet Network Card is a high-performance 25 Gigabit Ethernet adapter designed for data centers and enterprise networks. Featuring dual SFP28 ports and the Intel E810-XXVAM2 controller, it delivers exceptional throughput and low latency for demanding applications.

Advantages

Leveraging the Intel E810-XXVAM2 chipset, this network card provides advanced virtualization support, including SR-IOV and VMDq, enabling efficient resource allocation in virtualized environments. With PCI Express 4.0 x8 interface, it ensures maximum bandwidth for 25GbE connectivity. The card supports jumbo frames up to 9.5 KB and comprehensive offload features to reduce CPU overhead.

Suitable for

• Data center servers requiring high-speed 25GbE connectivity
• Enterprise networks with virtualized workloads (VMware, Hyper-V)
• High-performance computing (HPC) clusters
• Storage networks (iSCSI, FCoE)

Key specifications

• Controller: Intel Ethernet Controller E810-XXVAM2
• Network Speed: 25 Gigabit Ethernet (25GbE)
• Port Configuration: Dual-port
• Connector Type: SFP28
• Host Interface: PCI Express 4.0 x8
• Form Factor: Standard Profile PCIe Card
• Supported Standards: IEEE 802.3by (25GbE), IEEE 802.3ae (10GbE)
• Jumbo Frame Support: Up to 9.5 KB
• Virtualization Support: SR-IOV, VMDq, FCoE, iSCSI
• Offload Features: TCP/UDP/IP Checksum Offload, TSO, LRO, RSS
• Operating System Compatibility: Windows Server, Linux, VMware ESXi
• Management Features: PXE Boot, NC-SI, SNMP
• LED Indicators: Link/Activity
• Flow Control: IEEE 802.3x
• Quality of Service (QoS): Yes
• Bracket Type: Full-height

Recommendations

For optimal performance, pair this network card with compatible SFP28 transceivers and ensure your system supports PCIe 4.0. Ideal for upgrading existing 10GbE infrastructure to 25GbE.
