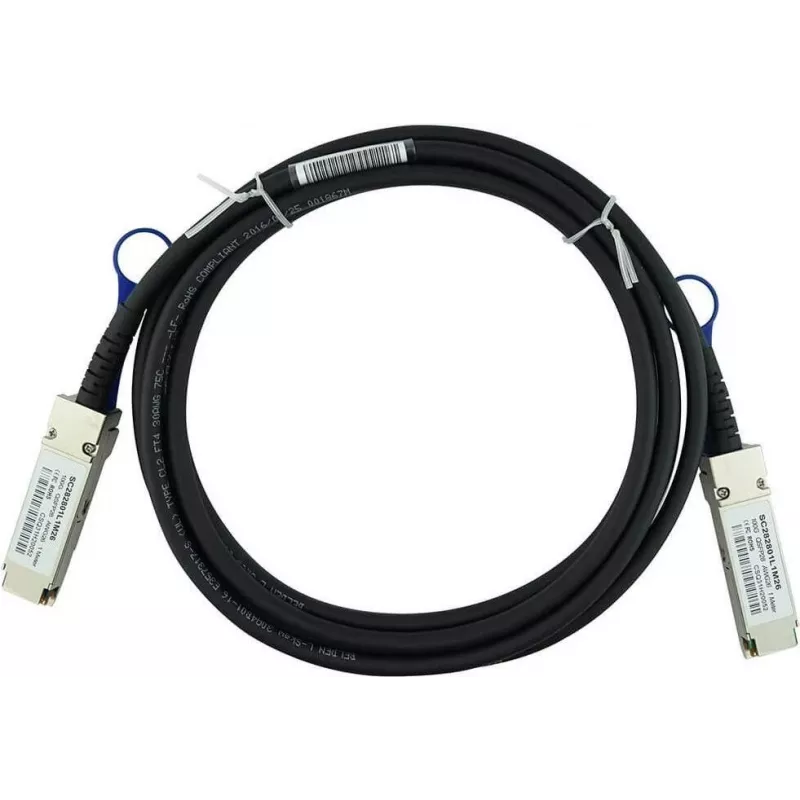

BlueOptics Extreme Networks AA1405031-E6 Compatibele BlueLAN DAC QSFP28 Direct Attach-kabel, 100GBASE-CR4, Infiniband EDR, 26AWG, 3 meter (AA1405031-E6-BL)

The BlueOptics AA1405031-E6-BL is a high-performance QSFP28 Direct Attach Copper (DAC) cable designed for compatibility with Extreme Networks AA1405031-E6. It supports 100GBASE-CR4 Ethernet and Infiniband EDR, making it ideal for data center and high-performance computing environments. With a length of 3 meters and 26 AWG wire gauge, this passive copper cable ensures reliable, low-latency connectivity.

Advantages

Cost-effective alternative to optical transceivers with low power consumption and zero latency. Hot-swappable design simplifies installation and maintenance. Built with high-quality materials for durability and signal integrity.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Enterprise network upgrades
• Extreme Networks compatible equipment

Key specifications

• Cable Type: Direct Attach Cable (DAC)
• Connector Type: QSFP28 to QSFP28
• Data Rate: 100 Gbps
• Ethernet Standard: 100GBASE-CR4
• Infiniband Protocol: EDR
• Cable Length: 3 Meter
• Wire Gauge: 26 AWG
• Compatibility: Extreme Networks AA1405031-E6
• Cable Material: Copper Twinax
• Transceiver Form Factor: QSFP28
• Cable Design: Passive
• Supported Protocols: Ethernet, Infiniband
• Hot-Swappable: Yes

Recommendations

For optimal performance, ensure your network equipment supports QSFP28 modules and 100GBASE-CR4 or Infiniband EDR standards. This cable is plug-and-play and requires no configuration.
