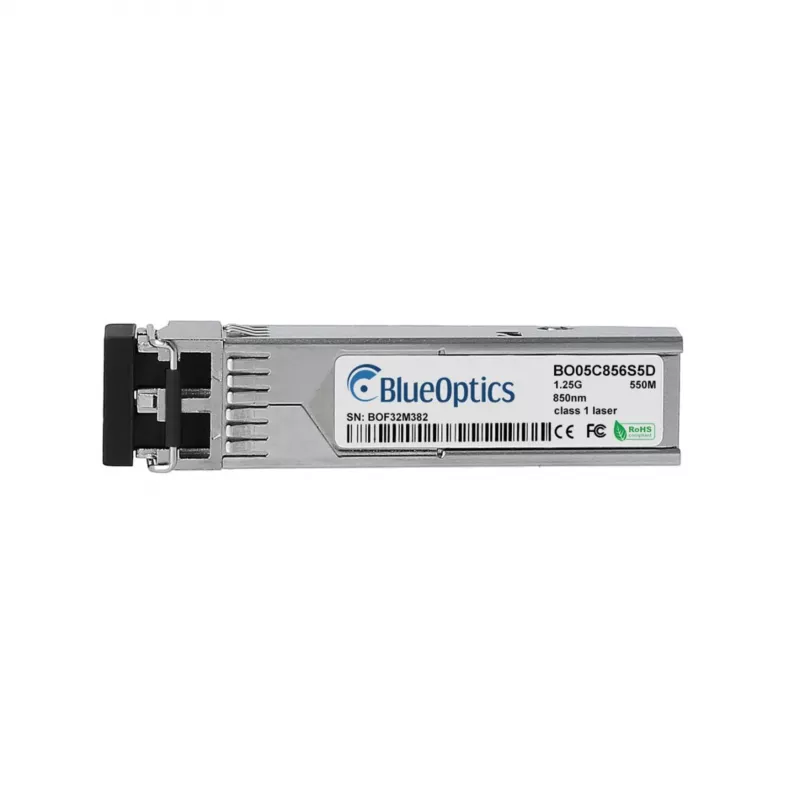

BlueOptics Finisar FTLF8519P3BNL SFP transceiver, 1000BASE-SX, multimode vezel, 850nm, 550m

The BlueOptics Finisar FTLF8519P3BNL SFP transceiver is a high-performance, hot-pluggable module designed for Gigabit Ethernet applications over multimode fiber. It provides reliable 1000BASE-SX connectivity with a wavelength of 850nm, supporting distances up to 550m on OM2 fiber and 275m on OM1 fiber. This MSA-compliant transceiver is fully compatible with Finisar FTLF8519P3BNL and BlueOptics BO05C856S5D, ensuring seamless integration into your network infrastructure.

Advantages

This transceiver offers low power consumption (<1.0W) and supports Digital Diagnostic Monitoring (DDM/DOM) for real-time performance monitoring. Its LC duplex connector and VCSEL laser technology ensure efficient and reliable data transmission. The hot-swappable design allows for easy installation and maintenance without network downtime.

Suitable for

• Gigabit Ethernet networks in data centers, enterprise LANs, and campus networks
• Connecting switches, routers, and servers over multimode fiber
• Upgrading existing 1000BASE-SX infrastructure

Key specifications

• Transceiver Type: SFP
• Data Rate: 1.25 Gbps
• Ethernet Standard: 1000BASE-SX
• Wavelength: 850 nm
• Fiber Type: Multimode Fiber (MMF)
• Connector Type: LC Duplex
• Max Distance (OM2 MMF): 550 m
• Max Distance (OM1 MMF): 275 m
• DDM/DOM Support: Yes
• Hot-Swappable: Yes
• Power Consumption: < 1.0 W
• Operating Temperature: 0°C to 70°C
• Compliance: MSA Compliant

Recommendations

For optimal performance, use with OM2 or OM3 multimode fiber cables and ensure compatibility with your networking equipment. This transceiver is an ideal choice for cost-effective, high-speed network connections.
