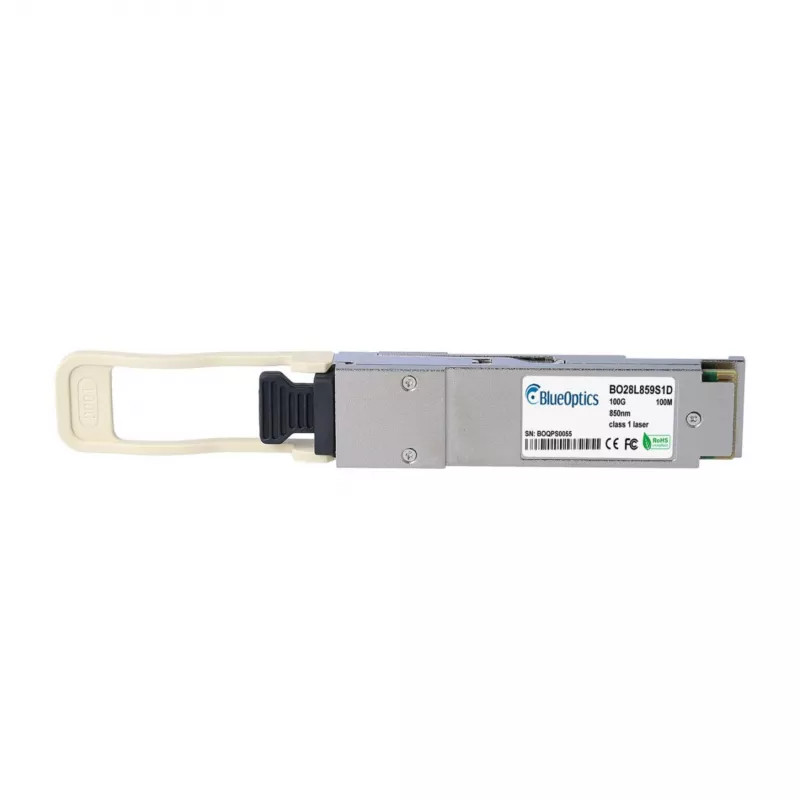

BlueOptics FTLC9558REPMPAN compatibele QSFP28 100GBASE-SR4-transceiver BO28L859S1D

The BlueOptics FTLC9558REPMPAN compatible QSFP28 transceiver (BO28L859S1D) is a high-performance 100 Gigabit Ethernet module designed for short-reach multi-mode fiber applications. It is fully compliant with the 100GBASE-SR4 standard and MSA requirements, ensuring seamless integration into existing networks.

Advantages

This transceiver offers reliable 100G connectivity over multi-mode fiber with low power consumption under 3.5W. It supports Digital Diagnostic Monitoring (DDM) for real-time performance tracking. The hot-pluggable QSFP28 form factor enables easy installation and upgrades without network downtime.

Suitable for

• Data center interconnects
• High-performance computing clusters
• Enterprise network aggregation
• 100 Gigabit Ethernet uplinks

Key specifications

• Form Factor: QSFP28
• Data Rate: 100 Gbps (4x25G NRZ)
• Wavelength: 850 nm
• Max Distance: 100 m on OM4 MMF, 70 m on OM3 MMF
• Connector: MPO-12 (female)
• Fiber Type: Multi-Mode Fiber (MMF)
• DDM/DOM: Yes
• Operating Temperature: 0°C to 70°C
• Power Consumption: < 3.5 W
• Compliance: IEEE 802.3bm, SFF-8665, SFF-8636

Recommendations

For optimal performance, use with OM4 multi-mode fiber and ensure your switch or router supports QSFP28 100GBASE-SR4 modules. This transceiver is a cost-effective alternative to OEM modules while maintaining full compatibility.
