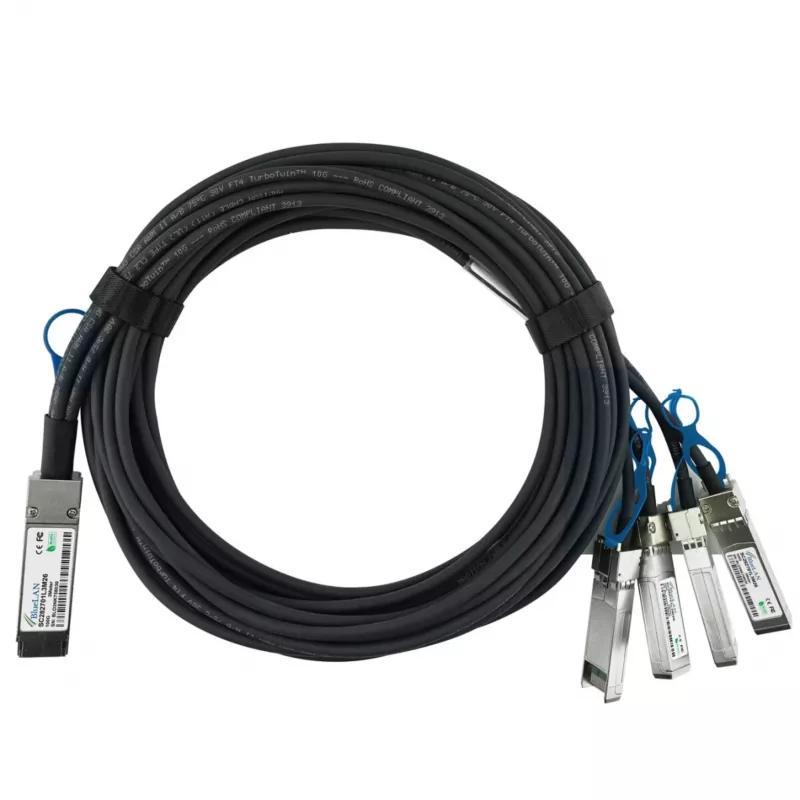

BlueOptics IBM EB4P BlueLAN passieve 100GBASE-CR4 QSFP28 naar 4x25GBASE-CR SFP28 direct attach breakout-kabel, 2m

The BlueOptics IBM EB4P BlueLAN passive 100GBASE-CR4 QSFP28 to 4x25GBASE-CR SFP28 Direct Attach Breakout Cable is a high-performance copper cable designed for data center and high-performance computing environments. It enables seamless connectivity between a 100 Gbps QSFP28 port and four 25 Gbps SFP28 ports, providing a cost-effective and efficient solution for network upgrades and expansions.

Advantages

This breakout cable offers significant advantages over traditional fiber optic solutions, including lower power consumption, reduced latency, and simplified cable management. Its passive design ensures reliable signal integrity without the need for external power, making it an ideal choice for short-distance interconnects within racks or adjacent racks.

Suitable for

• Data center top-of-rack to server connections
• High-performance computing clusters
• Network aggregation and core switching
• IBM EB4P systems and compatible equipment

Key specifications

• Cable Type: Direct Attach Copper (DAC) Breakout Cable
• Connector A: QSFP28
• Connector B: 4x SFP28
• Data Rate: 100 Gbps aggregate (4x 25 Gbps per lane)
• Standards: 100GBASE-CR4 (QSFP28), 25GBASE-CR (SFP28)
• Length: 2 meters (6.56 feet)
• Material: Copper
• Hot-Pluggable: Yes
• Power Consumption: Low (Passive)
• Compatibility: IBM EB4P systems
• Product Series: BlueLAN

Recommendations

For optimal performance, ensure that both the QSFP28 and SFP28 ports support the respective standards and are configured correctly. This cable is a direct replacement for OEM IBM EB4P cables and is fully compatible with BlueLAN networking equipment.
