BlueOptics Lenovo BF92 compatibele BlueLAN QSFP56 passieve Direct Attach Cable (DAC) 1m twinaxiale koper 200 Gigabit Ethernet

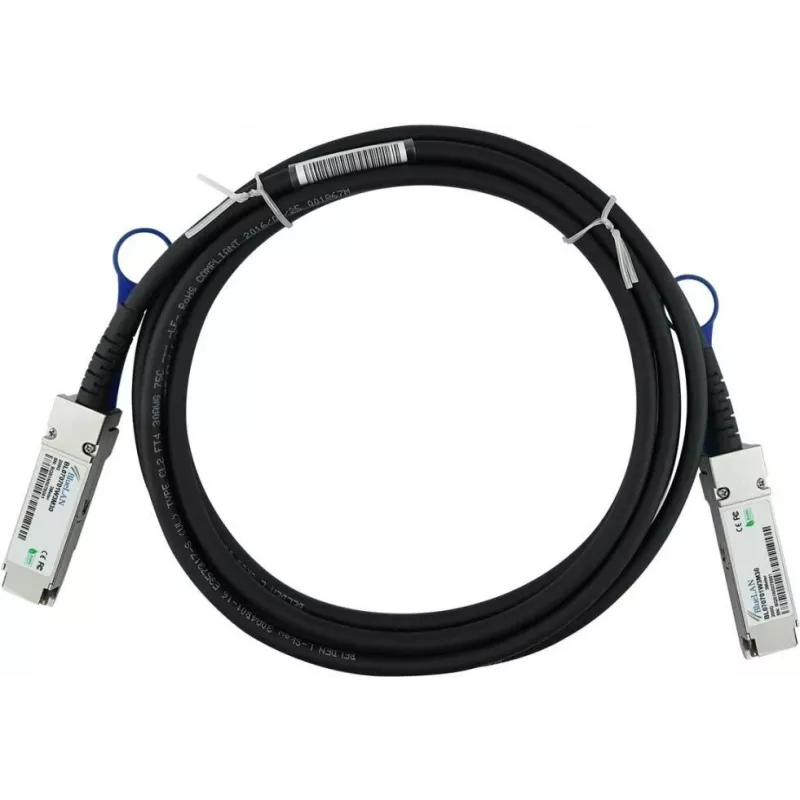

The BlueOptics Lenovo BF92 compatible BlueLAN QSFP56 Passive Direct Attach Cable (DAC) is a high-performance, cost-effective solution for 200 Gigabit Ethernet connectivity in data centers and high-performance computing environments. This 1-meter twinaxial copper cable features QSFP56 connectors on both ends, providing ultra-low latency and zero power consumption for reliable rack-to-rack and adjacent rack connections.

Advantages

Passive design ensures no power consumption and minimal heat generation, making it ideal for dense deployments. The 26AWG wire gauge and PVC jacket offer flexibility and durability. Compliant with SFF-8665 (QSFP56 MSA), RoHS, CE, and FCC standards, guaranteeing interoperability and regulatory compliance.

Suitable for

• Data center interconnects
• Rack-to-rack and adjacent rack connectivity
• High-performance computing (HPC) clusters
• Network attached storage (NAS) systems
• InfiniBand HDR applications

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Cable Type: Twinaxial Copper
• Data Rate: 200 Gigabit Ethernet (200GBASE-CR4)
• Connector Type (End A): QSFP56
• Connector Type (End B): QSFP56
• Cable Length: 1 meter (3.28 feet)
• Active/Passive: Passive
• Compatibility: Lenovo BF92, QSFP56 MSA Compliant Devices
• Protocol Support: 200 Gigabit Ethernet, InfiniBand HDR
• Hot-Pluggable: Yes
• Compliance: SFF-8665 (QSFP56 MSA), RoHS, CE, FCC
• Impedance: 100 Ohm
• Power Consumption: 0W (Passive)
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Voltage Supply (Host Side): 3.3V
• Jacket Material: PVC (Polyvinyl Chloride)
• Wire Gauge: 26AWG
• Latency: Ultra-low

Recommendations

For optimal performance, ensure your network equipment supports QSFP56 interfaces and 200GBASE-CR4 standards. This cable is an ideal choice for upgrading to 200G speeds without the cost and complexity of active optical cables.
