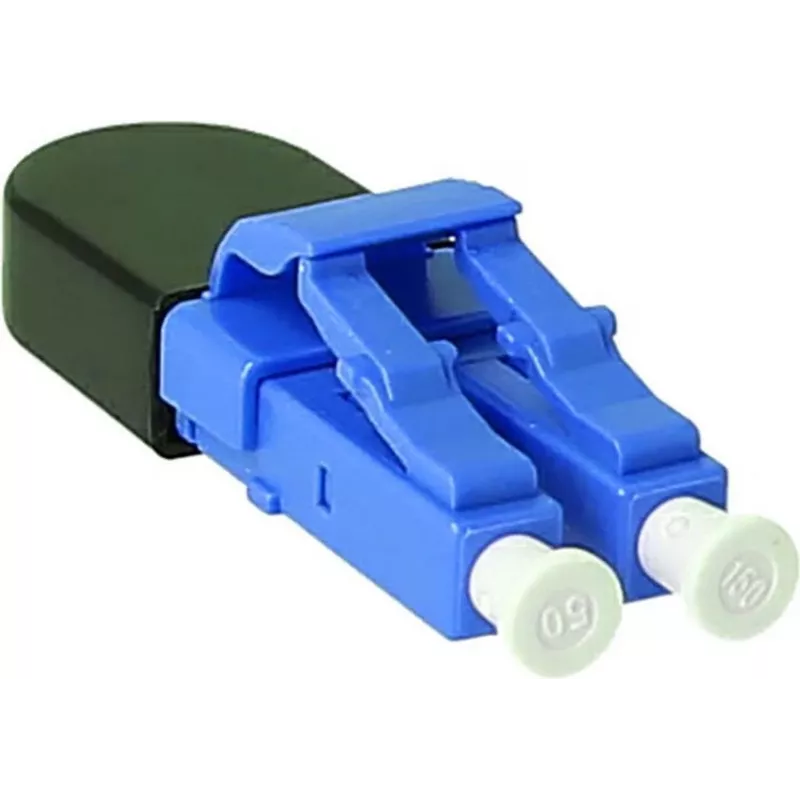

BlueOptics Loopback-adapter LC Duplex Singlemode SM 9/125µm keramische ferrule blauw

The BlueOptics Loopback Adapter LC Duplex Singlemode SM is a high-quality test tool designed for network diagnostics, burn-in testing, and system troubleshooting. It provides a reliable loopback connection for singlemode fiber optic systems, ensuring accurate signal reflection and performance verification.

Advantages

This loopback adapter offers exceptional durability with over 1000 mating cycles, low insertion loss (<0.2 dB typical), and high return loss (>50 dB typical). Its ceramic ferrule ensures precise alignment and stable performance across a wide temperature range (-40°C to +85°C). The blue housing provides easy identification in dense patch panels.

Suitable for

• Network testing and troubleshooting
• Burn-in testing of optical transceivers
• System diagnostics and validation
• Laboratory and field applications

Key specifications

• Fiber type: Singlemode (SM) 9/125 µm
• Connector: LC/UPC Duplex
• Ferrule material: Ceramic
• Insertion loss: <0.2 dB typical
• Return loss: >50 dB typical
• Durability: >1000 mating cycles
• Wavelength compatibility: 1310 nm, 1550 nm
• Operating temperature: -40°C to +85°C
• Storage temperature: -40°C to +85°C
• Housing material: ABS plastic
• Standards: IEC 61754-20, TIA/EIA-604-10, RoHS

Recommendations

For optimal performance, pair this loopback adapter with BlueOptics transceivers and patch cables. Ensure connectors are clean before each use to maintain low insertion loss and high return loss.
