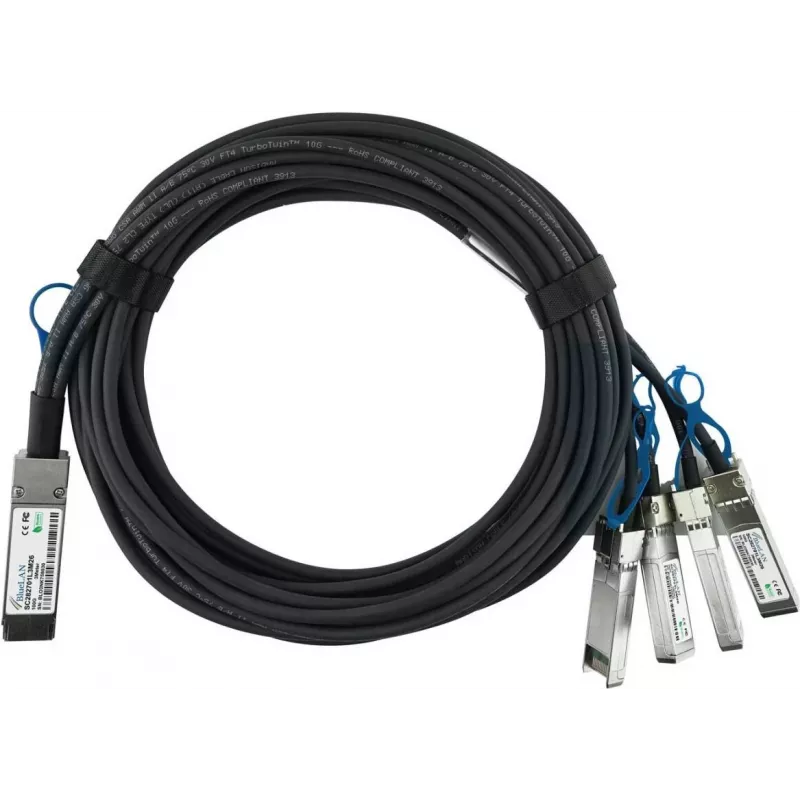

BlueOptics MCP7F00-A002-BL QSFP28 naar 4x SFP28 passieve direct attach copper breakout-kabel, 2m, zwart

The BlueOptics MCP7F00-A002-BL is a high-performance QSFP28 to 4x SFP28 passive direct attach copper (DAC) breakout cable, designed for data centers and high-performance computing environments. It provides a cost-effective and reliable solution for connecting 100 Gb/s QSFP28 ports to four 25 Gb/s SFP28 ports, supporting InfiniBand EDR and 100GbE Ethernet protocols.

Advantages

This breakout cable offers significant advantages in terms of flexibility and cost savings. By breaking out a single 100 Gb/s QSFP28 port into four 25 Gb/s SFP28 connections, it enables efficient utilization of existing infrastructure and simplifies cable management. The passive design ensures low power consumption (<0.5 W) and high reliability, while the 2-meter length provides ample reach for rack-to-rack or within-rack connections.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Enterprise networking
• Mellanox/NVIDIA ConnectX-4/5/6 adapters and Spectrum switches
• Any QSFP28/SFP28 compliant equipment

Key specifications

• Cable Type: Direct Attach Copper (DAC), Passive
• Connector A: QSFP28
• Connector B: 4x SFP28
• Cable Length: 2 meters
• Data Rate: 100 Gb/s (QSFP28) / 25 Gb/s per channel (SFP28)
• Protocol: InfiniBand EDR, Ethernet 100GbE
• Cable Gauge: 30 AWG
• Jacket Color: Black
• Impedance: 100 Ohm
• Power Consumption: < 0.5 W
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, CE, FCC
• Hot-Pluggable: Yes

Recommendations

For optimal performance, ensure that both the QSFP28 and SFP28 ports are compatible with passive DAC cables. This cable is an ideal choice for high-bandwidth applications requiring low latency and minimal power draw.
