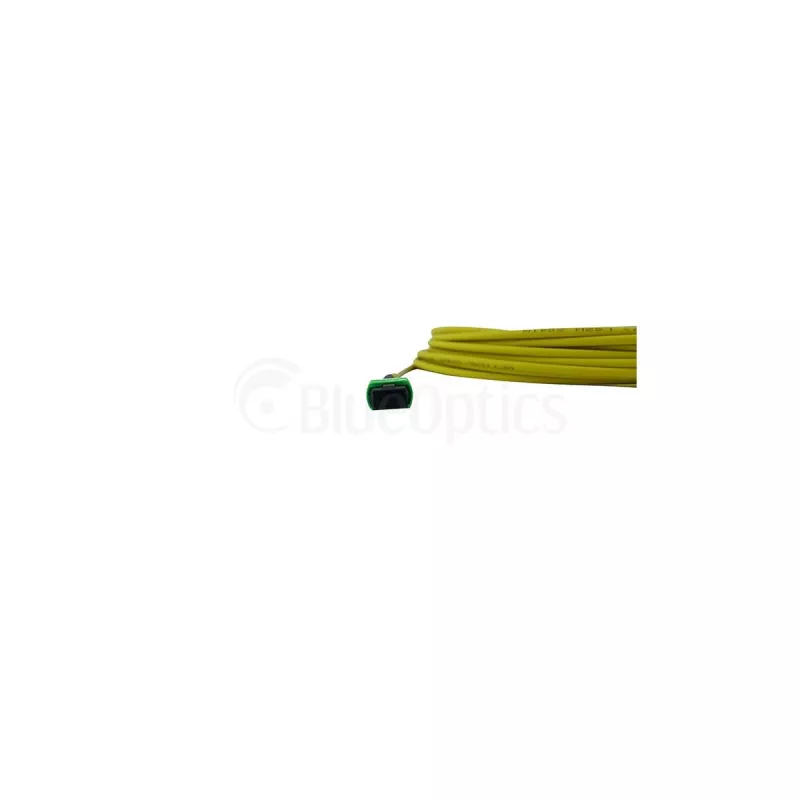

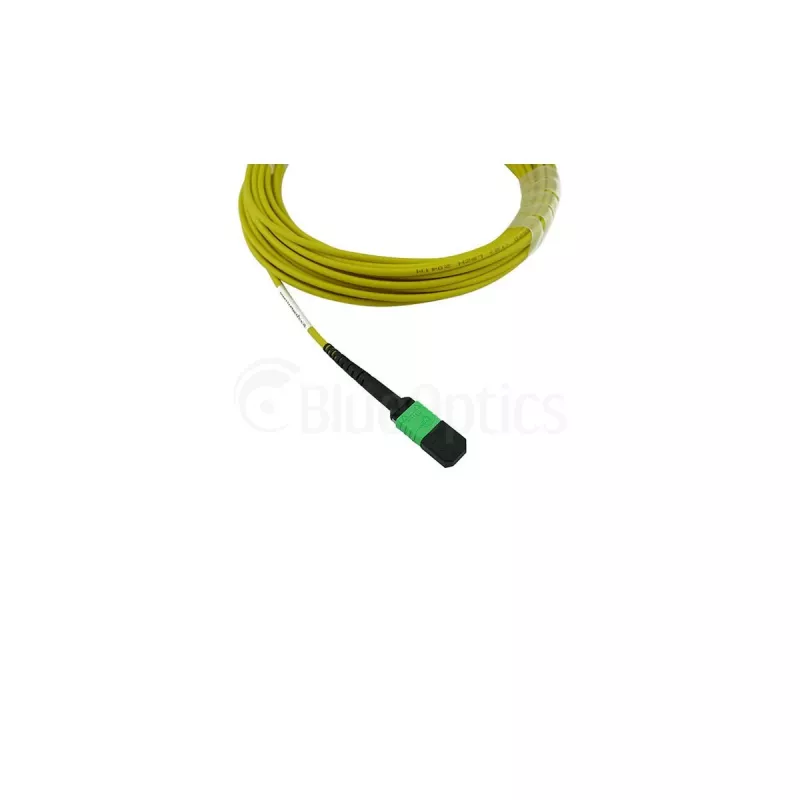

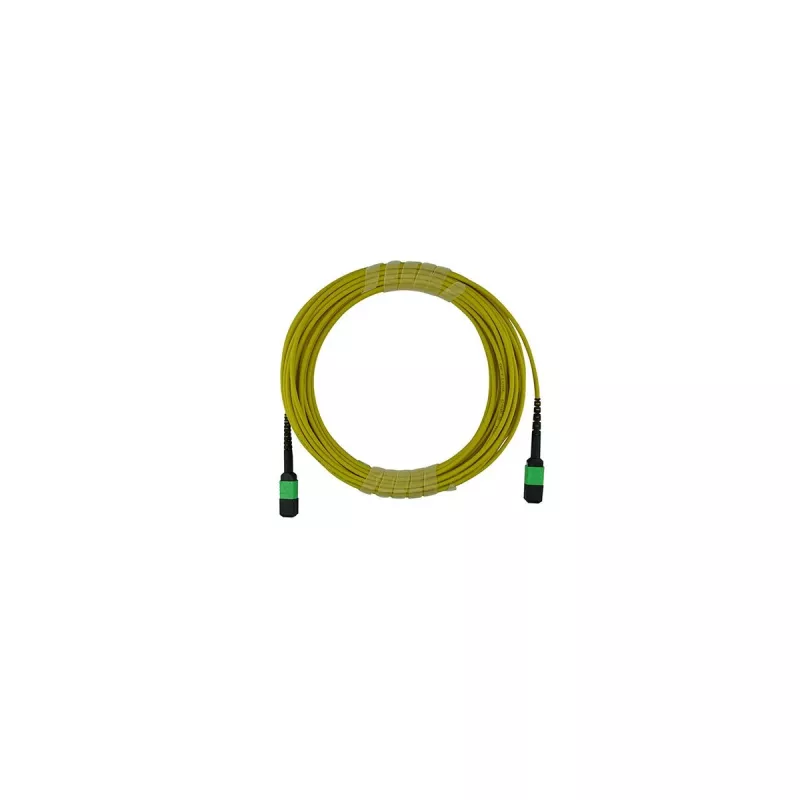

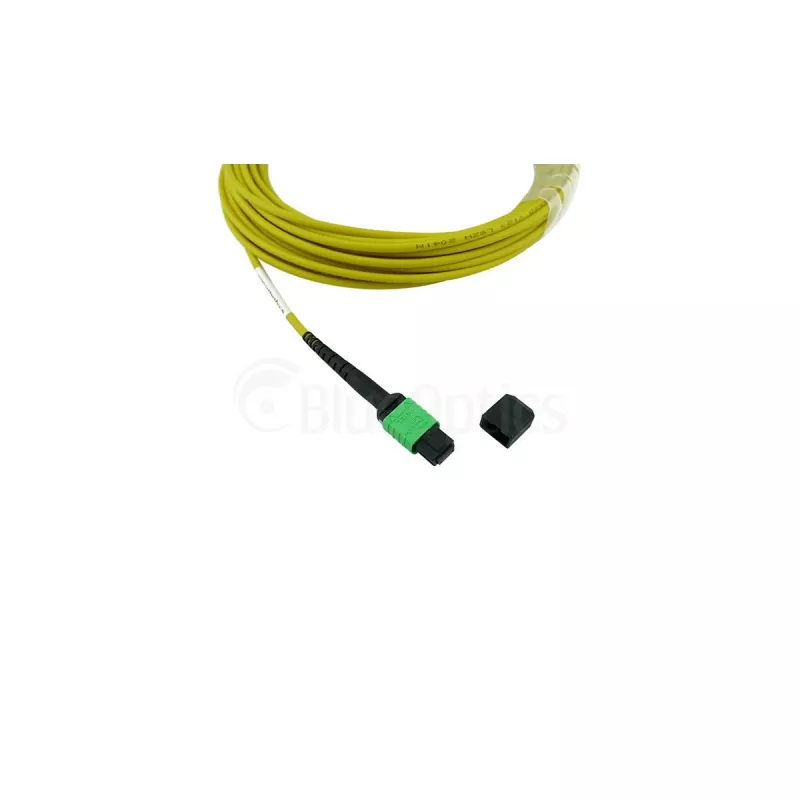

BlueOptics MFP7E30-N007 Compatibele MPO-MPO Singlemode OS2 patchkabel 7,5 meter

The BlueOptics MFP7E30-N007 is a high-performance MPO-MPO fiber optic patch cable designed for demanding data center and enterprise network environments. This 7.5-meter singlemode OS2 cable features 12-fiber MPO connectors with APC polish and Type B polarity, ensuring low insertion loss and high return loss for reliable high-speed data transmission.

Advantages

This cable offers exceptional signal integrity with a maximum insertion loss of 0.35 dB per connector and a minimum return loss of 60 dB. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces, while the 3.0 mm diameter and 10 mm minimum bend radius allow for flexible installation. Compliant with RoHS and REACH, it meets environmental standards.

Suitable for

• Data center backbone cabling
• Telecommunications networks
• Enterprise network infrastructure
• High-speed fiber optic connections (40G/100G/400G)

Key specifications

• Product Type: Fiber Optic Patch Cable
• Fiber Mode: Singlemode
• Fiber Standard: OS2 (ITU-T G.657.A1/A2 & G.652.D)
• Connector Type A: MPO (Male)
• Connector Type B: MPO (Male)
• Number of Fibers: 12-Fiber
• MPO Polarity: Type B (Cross-over)
• Connector Ferrule: APC (Angled Physical Contact)
• Cable Length: 7.5 meters
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Insertion Loss (Max): 0.35 dB per connector
• Return Loss (Min): 60 dB
• Cable Diameter: 3.0 mm
• Minimum Bend Radius: 10 mm
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible MPO ports with APC polish. Avoid sharp bends and excessive pulling to maintain signal quality. This cable is ideal for high-density patching areas where space is limited.
