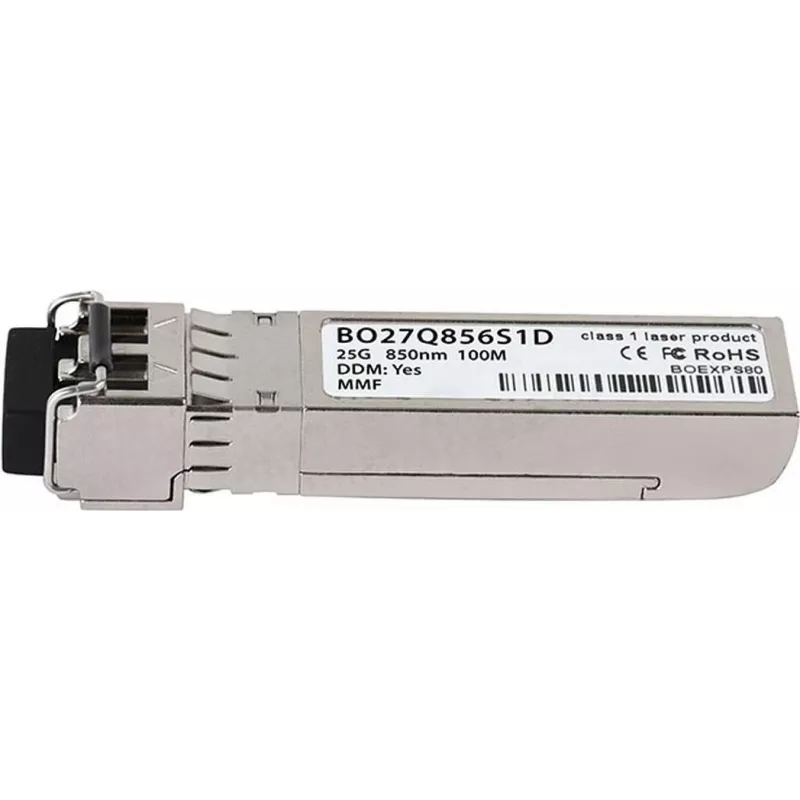

BlueOptics MMA2P00-AS-NV compatibele SFP28 25GBASE-SR transceiver, 850nm, LC duplex, 100m over OM4 MMF

The BlueOptics MMA2P00-AS-NV stands apart from generic SFP28 modules by delivering NVIDIA Mellanox compatibility with rigorous performance tuning. It is engineered for 25G Ethernet links in data centers and enterprise networks, supporting 25GBASE-SR over multi-mode fiber. With a VCSEL transmitter at 850 nm and a PIN receiver, it achieves reliable transmission up to 100 meters on OM4 fiber and 70 meters on OM3. Digital diagnostics monitoring (DDM) provides real-time visibility into temperature, voltage, laser bias, and optical power, simplifying network management.

Highlights

• NVIDIA Mellanox MMA2P00-AS compatible SFP28 transceiver
• 25 Gbps data rate for high-density 25G Ethernet applications
• 850 nm VCSEL transmitter, optimized for multi-mode fiber
• LC duplex connector, hot-swappable for minimal downtime
• Supports DDM for proactive monitoring and troubleshooting
• Low power consumption: typically 0.8 W, 3.3 V supply
• Compliant with IEEE 802.3by, SFF-8472, SFF-8431, SFF-8432

In daily use

Deploying this transceiver is straightforward: insert it into any SFP28 port on a compatible switch or NIC, connect your multi-mode fiber patch cable, and the link comes up automatically. The hot-swappable design allows you to replace modules without powering down the system, reducing maintenance windows. DDM lets you monitor optical parameters remotely, so you can detect degrading links before they cause outages. The module operates reliably in temperatures from 0°C to 70°C, making it suitable for standard data center environments.

Full specifications

• Brand: BlueOptics
• Model: MMA2P00-AS-NV-BO
• MPN: MMA2P00-AS-NV-BO
• EAN: 4063232137049
• Form Factor: SFP28
• Data Rate: 25 Gbps
• Wavelength: 850 nm
• Connector: LC Duplex
• Media Type: Multi-mode Fiber (MMF)
• Max Distance: 100 m (OM4), 70 m (OM3)
• DDM: Supported
• Power Consumption: 0.8 W (typical)
• Operating Temperature: 0°C to 70°C
• Compliance: IEEE 802.3by, SFF-8472, SFF-8431, SFF-8432
• Hot-Swappable: Yes
• Voltage: 3.3 V
• Transmitter: VCSEL
• Receiver: PIN

Final note

For network architects seeking a cost-effective yet fully compatible alternative to original Mellanox optics, the BlueOptics MMA2P00-AS-NV delivers the performance and reliability your 25G infrastructure demands.
