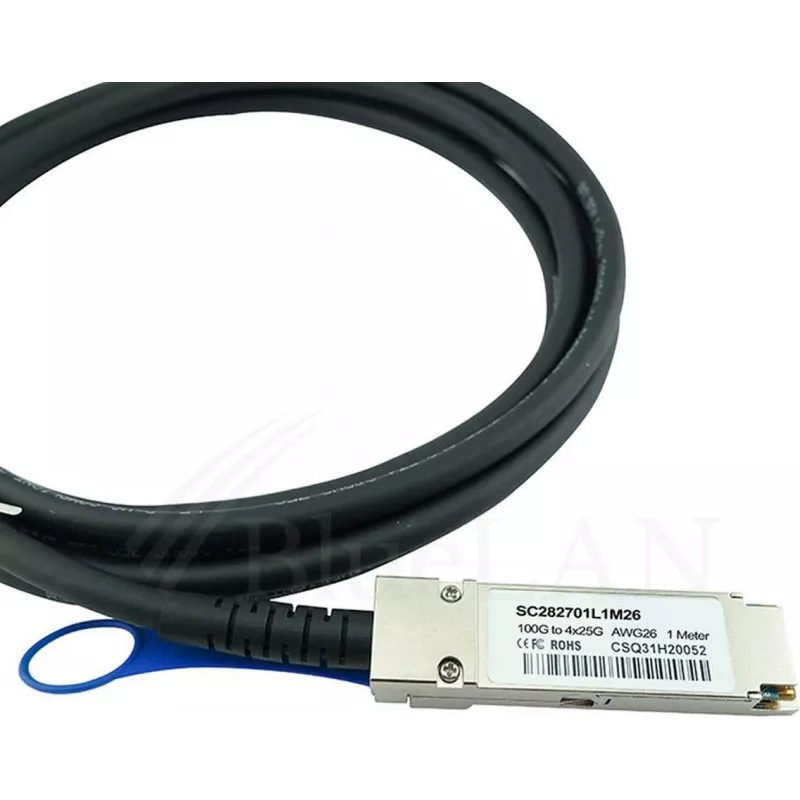

BlueOptics Q28-4S28-DAC-1M-AO-BL Compatibele Avago QSFP28 naar 4x SFP28 Direct Attach Breakout-kabel, 1m, passief, AWG26

The BlueOptics Q28-4S28-DAC-1M-AO-BL is a high-performance, passive direct attach breakout cable designed for data center and enterprise networking applications. It provides a cost-effective solution for connecting QSFP28 ports to four SFP28 ports, supporting 100GBASE-CR4 on the QSFP28 end and 25GBASE-CR on each SFP28 end. This cable is fully compatible with Avago equipment and complies with MSA standards, ensuring seamless integration into existing networks.

Advantages

This breakout cable offers significant advantages in terms of cost, power efficiency, and ease of deployment. By eliminating the need for separate transceivers and fiber optic cabling, it reduces overall system cost and power consumption. The passive design ensures zero latency and high reliability, making it ideal for high-density environments. The 1-meter length with AWG26 gauge provides flexibility for rack-to-rack or intra-rack connections.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Enterprise network aggregation
• Top-of-rack to server connections
• Storage area networks (SAN)

Key specifications

• Cable Type: Direct Attach Cable (DAC), Passive
• Connector A: QSFP28
• Connector B: 4x SFP28
• Data Rate: 100 Gbps aggregate (4x 25 Gbps per lane)
• Standards: 100GBASE-CR4 (QSFP28), 25GBASE-CR (SFP28)
• Length: 1 meter
• Wire Gauge: AWG26
• Impedance: 100 Ohm
• Voltage: 3.3V
• Hot-Swappable: Yes
• Compliance: RoHS

Recommendations

For optimal performance, ensure that both ends of the cable are securely connected and that the host devices support the respective standards. This cable is ideal for short-distance, high-speed connections within racks or between adjacent racks. Always verify compatibility with your specific equipment before deployment.
