BlueOptics Ruckus Compatibele BlueLAN DAC QSFP28-kabel 0,5m passief 100GbE

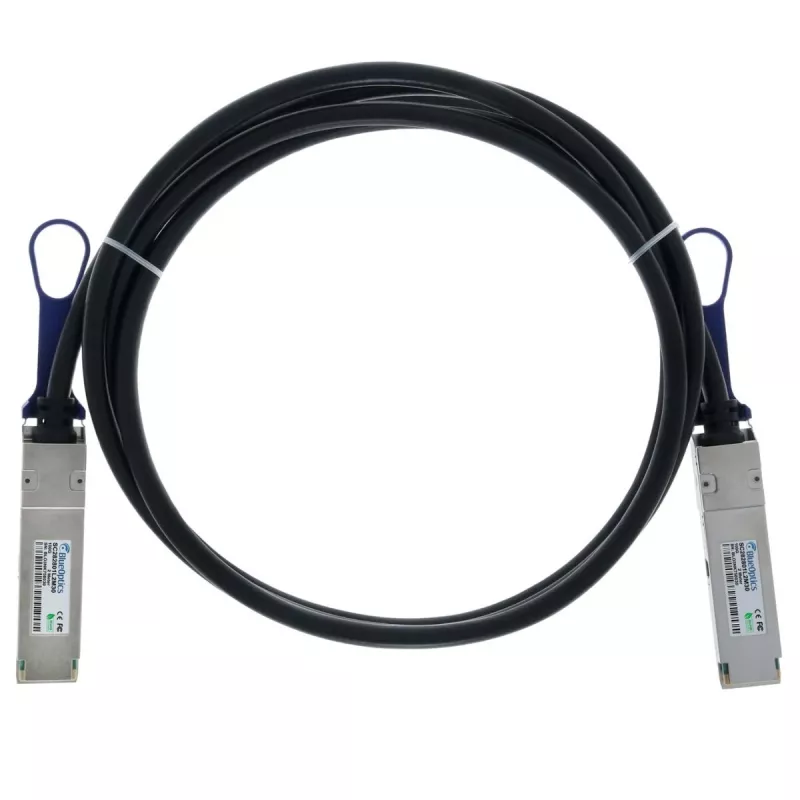

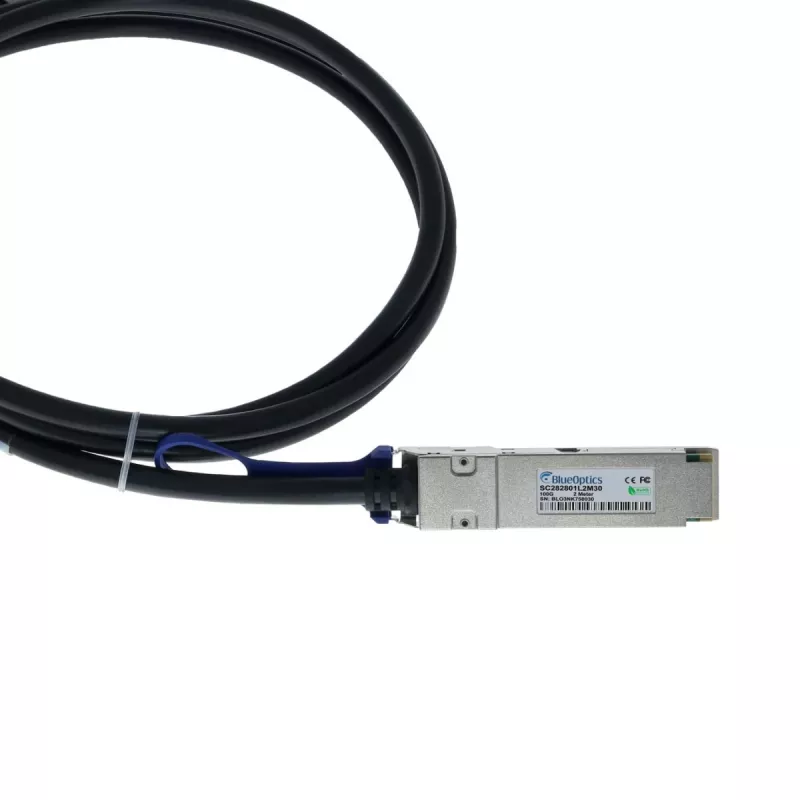

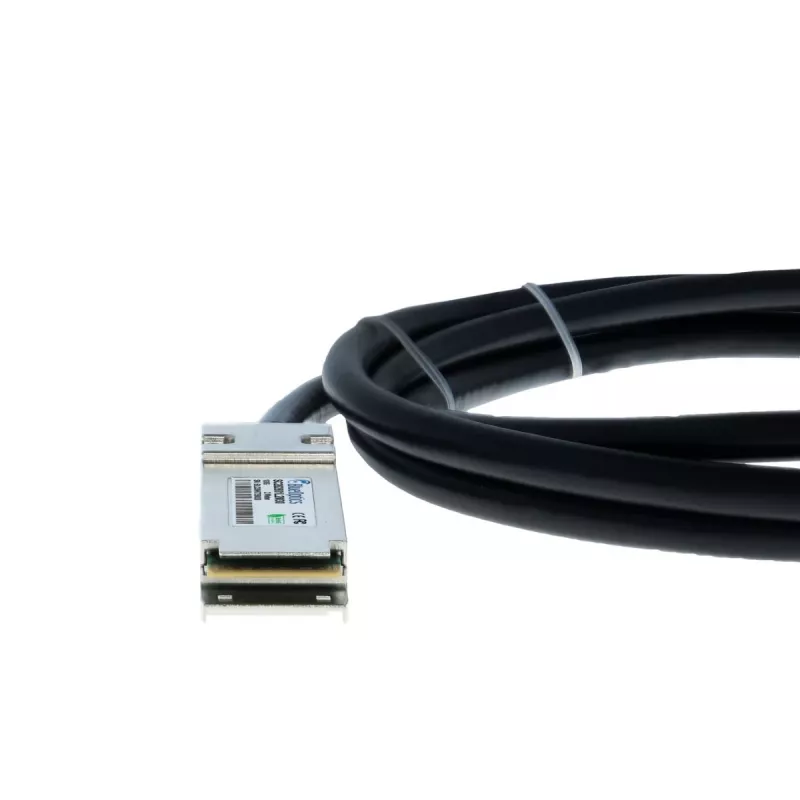

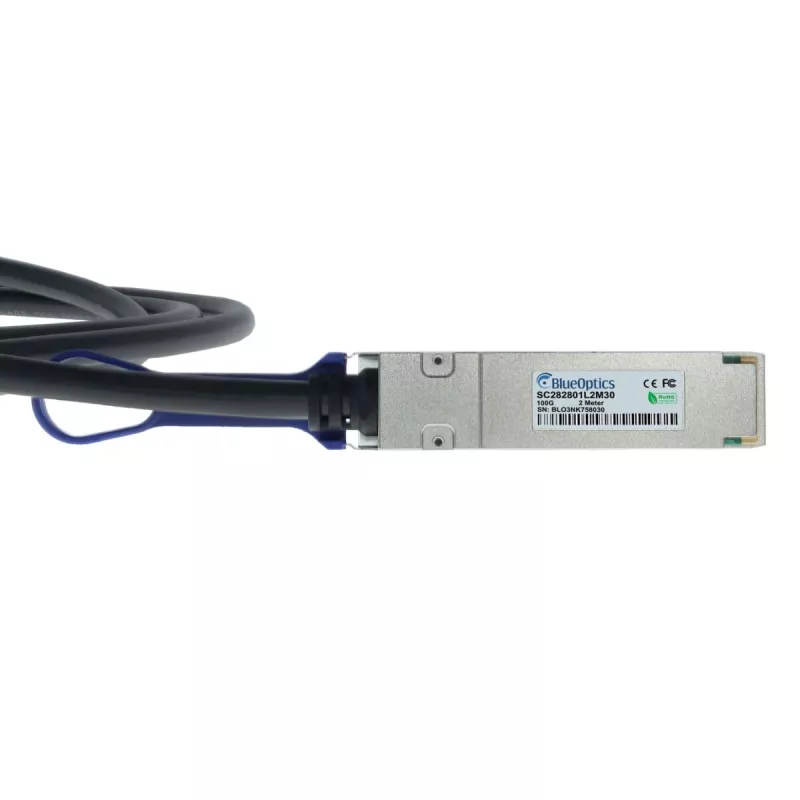

The BlueOptics Ruckus 100G-Q28-Q28-C-0501 compatible BlueLAN DAC QSFP28 Cable is a high-performance direct attach copper (DAC) cable designed for 100 Gigabit Ethernet connectivity. This passive cable provides a reliable, low-latency link for data center and enterprise networking applications, offering a cost-effective solution for short-range interconnects.

Advantages

This DAC cable delivers exceptional value with its passive design, ensuring zero power consumption and minimal signal degradation. It supports hot-swappable QSFP28 connectors for easy installation and maintenance. The 0.5-meter length is ideal for rack-to-rack or within-rack connections, reducing cable clutter and improving airflow.

Suitable for

• Data center interconnects
• High-performance computing (HPC) environments
• Enterprise networking with Ruckus QSFP28 ports
• 100GbE network infrastructure

Key specifications

• Cable Type: Direct Attach Copper (DAC) Passive
• Connector Type: QSFP28 to QSFP28
• Data Rate: 100 Gigabit Ethernet (100GbE)
• Cable Length: 0.5 meters (1.64 feet)
• Wire Gauge: 30 AWG
• Impedance: 100 Ohm
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C
• Compliance: RoHS, CE, FCC, MSA Compliant
• Power Consumption: < 0.5W per end

Recommendations

For optimal performance, ensure that your network equipment supports QSFP28 100GbE ports and passive DAC cables. This cable is fully compatible with Ruckus 100G-Q28-Q28-C-0501 and similar QSFP28 interfaces. Always handle with care to avoid damage to connectors.
