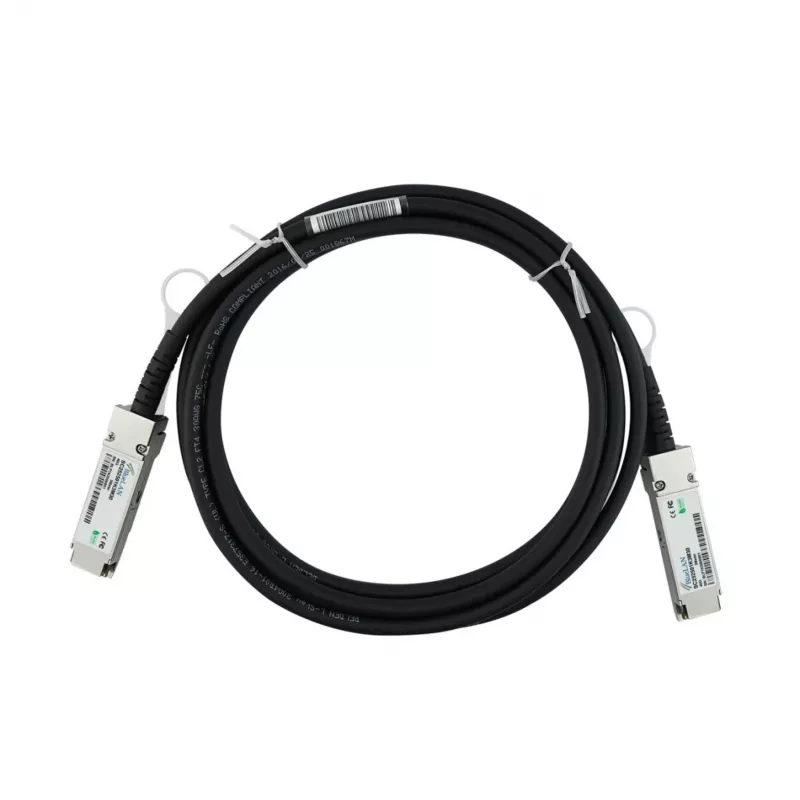

BlueOptics Ruckus E40G-QSFP-C-0201 Compatible BlueLAN DAC QSFP+ 2m Passieve koperkabel

The BlueOptics Ruckus E40G-QSFP-C-0201 Compatible BlueLAN DAC QSFP+ is a high-performance direct attach copper cable designed for 40 Gigabit Ethernet and InfiniBand applications. This passive copper cable provides a cost-effective, low-power solution for short-range interconnects in data centers, high-performance computing, and network storage environments. With a length of 2 meters and 26 AWG construction, it ensures reliable signal integrity and compliance with QSFP+ MSA standards.

Advantages

This DAC cable offers several benefits: it is hot-swappable, consumes less than 0.5W per end, and supports data rates up to 40 Gbps. Its passive design eliminates the need for external power, reducing overall system power consumption. The cable is fully compatible with Ruckus E40G-QSFP-C-0201 and other QSFP+ MSA compliant equipment, ensuring seamless integration.

Suitable for

• Data center interconnect
• Network storage systems
• High-performance computing clusters
• 40G Ethernet and InfiniBand QDR/FDR networks

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Connector Type: QSFP+ to QSFP+
• Cable Length: 2 meters
• Data Rate: 40 Gbps
• Cable Type: Passive Copper
• AWG: 26 AWG
• Impedance: 100 Ohm
• Voltage Supply: 3.3V
• Power Consumption: < 0.5W per end
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Jacket Material: PVC
• Compliance: SFF-8436, RoHS, CE, FCC

Recommendations

For optimal performance, ensure that both ends of the cable are connected to QSFP+ ports that support passive DAC cables. This cable is ideal for short-distance, high-speed connections within racks or between adjacent racks. Always handle with care to avoid damaging the connectors.
