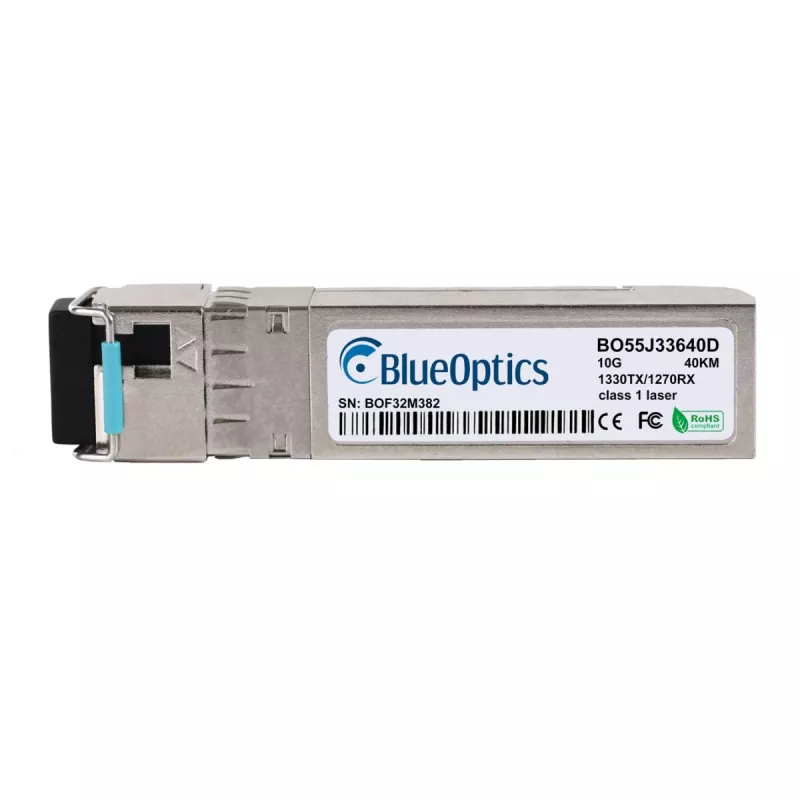

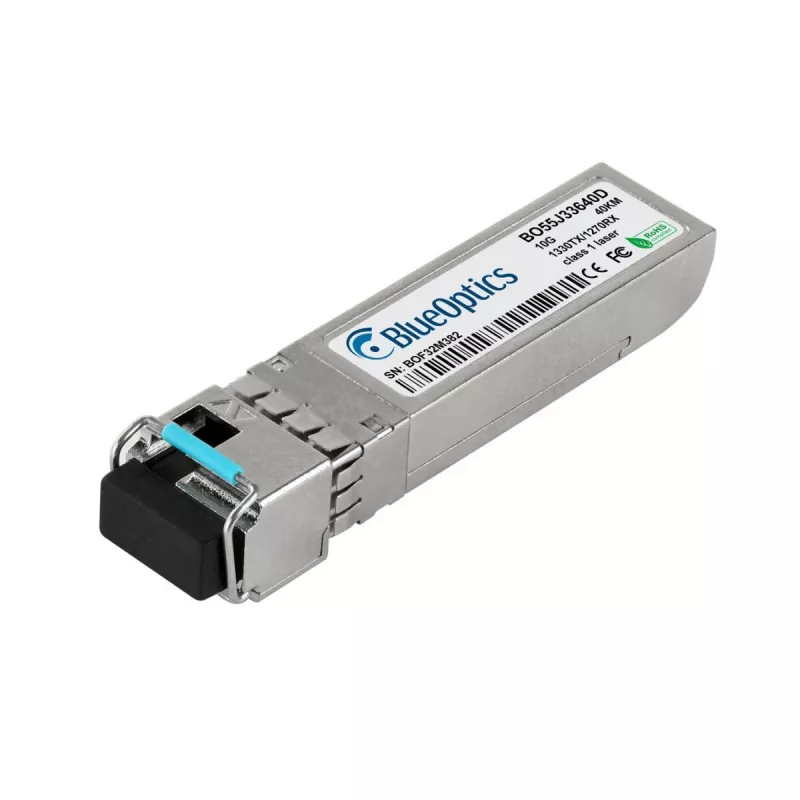

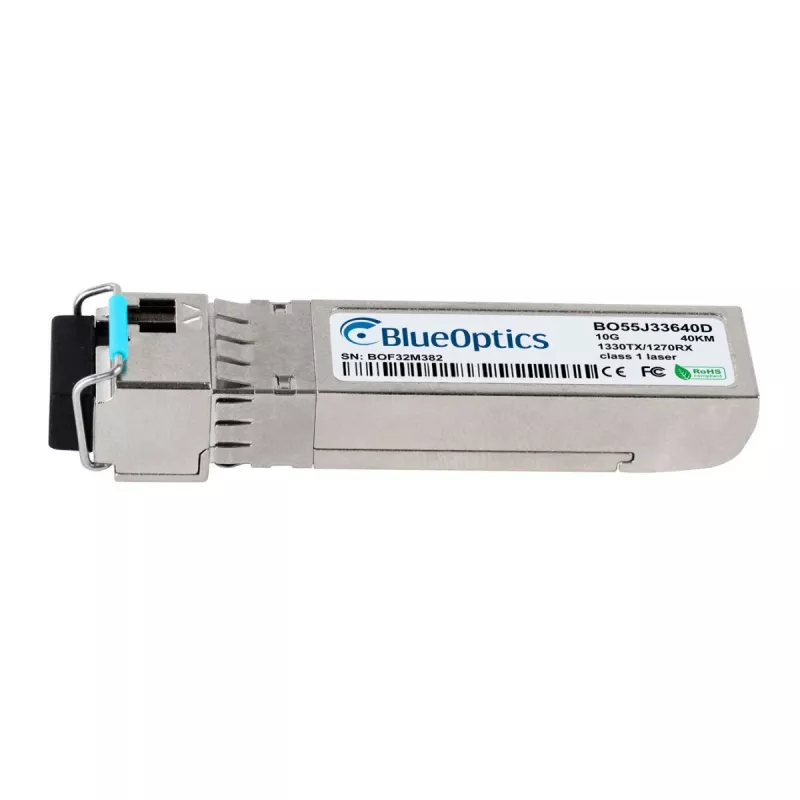

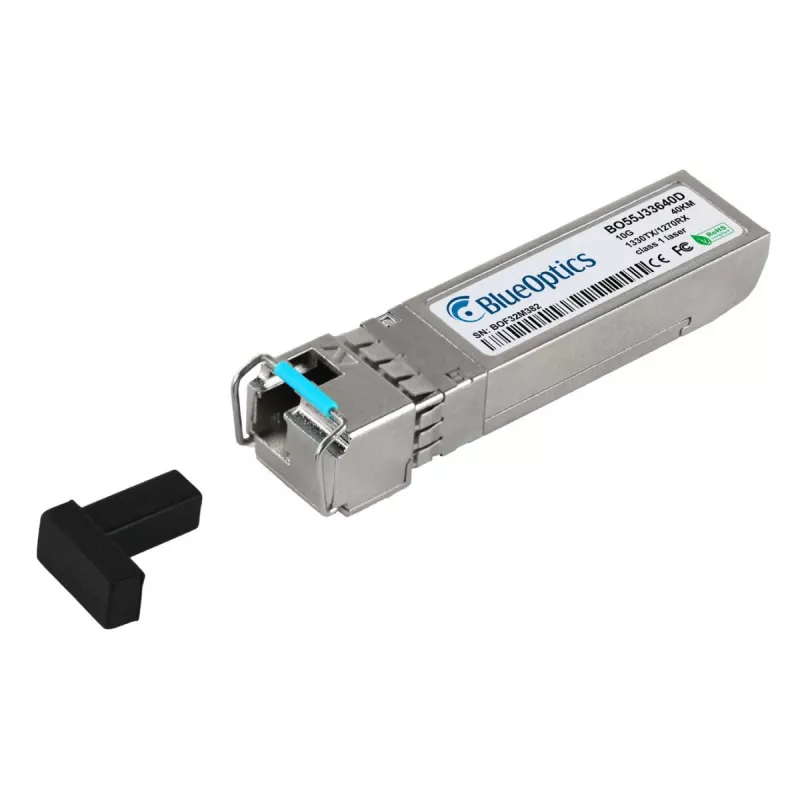

BlueOptics SFP+ 10GBASE-BX40-D 40km Single-Mode Fiber transceiver BO55J33640D (TP-Link compatibel)

The BlueOptics BO55J33640D is a high-performance SFP+ transceiver designed for 10 Gigabit Ethernet networks. It is fully compatible with TP-Link switches and routers, offering reliable long-distance connectivity over single-mode fiber. This BiDi (Bi-Directional) module operates on a single fiber strand, using 1330 nm for transmit and 1270 nm for receive, enabling distances up to 40 km.

Advantages

Cost-effective alternative to OEM modules with full MSA compliance and hot-swappable design. Supports Digital Diagnostic Monitoring (DDM/DOM) for real-time performance monitoring. Low power consumption under 1.0 W ensures energy efficiency in data centers and enterprise networks.

Suitable for

• 10 Gigabit Ethernet connections in metropolitan area networks (MAN)
• Long-haul fiber optic links up to 40 km
• TP-Link compatible networking equipment
• Single-mode fiber infrastructure

Key specifications

• Form Factor: SFP+
• Data Rate: 10 Gbps
• Wavelength: TX 1330 nm / RX 1270 nm
• Max Distance: 40 km
• Fiber Type: Single-Mode (OS2)
• Connector: LC Simplex
• DDM/DOM: Yes
• Power Consumption: < 1.0 W
• Operating Temperature: 0°C to 70°C

Recommendations

Ensure your network equipment supports SFP+ modules and single-mode fiber. For optimal performance, use with OS2 fiber patch cables. Compatible with TP-Link and other MSA-compliant devices.
