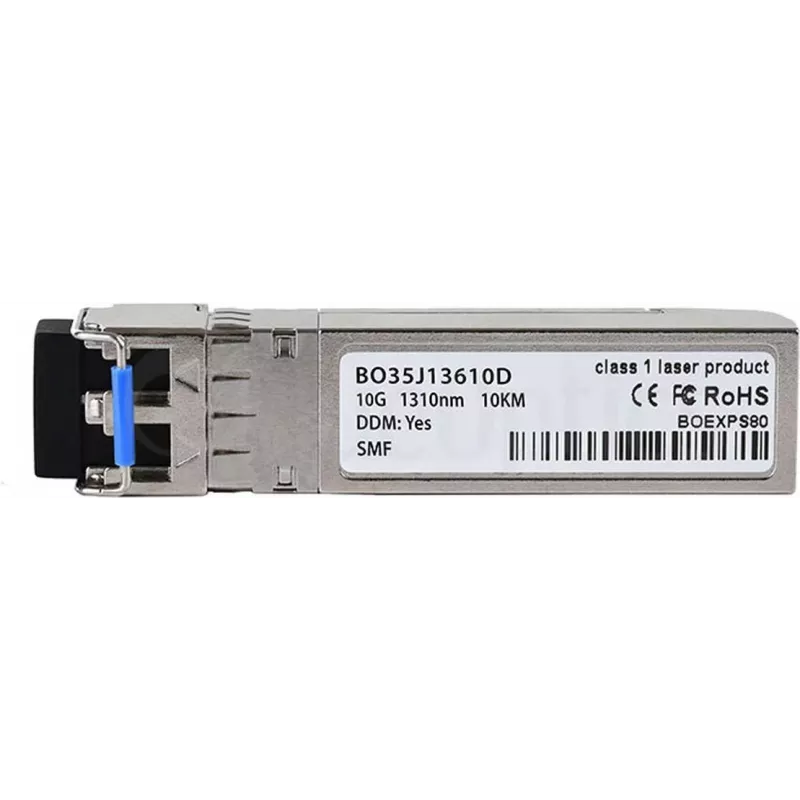

BlueOptics SFP+ 10GBASE-LR 10km LC duplex SFP+ transceiver-module

The BlueOptics SFP+-10G-LR (BO35J13610D) is a high-performance, hot-pluggable SFP+ transceiver module designed for 10 Gigabit Ethernet applications. It operates at a wavelength of 1310 nm and supports a maximum distance of 10 km over single-mode fiber (SMF). This module is fully compliant with IEEE 802.3ae standards and is compatible with a wide range of networking equipment from leading vendors such as Cisco, Juniper, HP, and Dell. With low power consumption (<1W) and support for Digital Diagnostic Monitoring (DDM/DOM), it provides reliable and efficient connectivity for enterprise and data center networks.

Advantages

This BlueOptics SFP+ transceiver offers exceptional value with multi-vendor compatibility, ensuring seamless integration into existing network infrastructures. Its robust metal housing and high MTBF of 500,000 hours guarantee long-term reliability. The hot-pluggable design allows for easy installation and maintenance without disrupting network operations.

Suitable for

• 10 Gigabit Ethernet links in data centers and enterprise networks
• Metropolitan area networks (MAN) and campus networks
• Interconnecting switches, routers, and servers over single-mode fiber
• Upgrading existing 1G networks to 10G performance

Key specifications

• Form Factor: SFP+
• Data Rate: 10 Gbps
• Protocol: 10GBASE-LR
• Wavelength: 1310 nm
• Max Distance: 10 km
• Fiber Type: Single-Mode Fiber (SMF)
• Connector Type: LC Duplex
• DDM/DOM Support: Yes
• Hot-Pluggable: Yes
• Operating Temperature: 0°C to 70°C
• Power Consumption: < 1W
• Laser Type: DFB
• Standards Compliance: IEEE 802.3ae
• Voltage: 3.3V
• MTBF: 500,000 hours
• Housing Material: Metal
• Safety Certification: CE, FCC, RoHS

Recommendations

For optimal performance, pair this transceiver with high-quality single-mode fiber patch cables and ensure proper cleaning of fiber connectors before installation. This module is an ideal choice for network administrators seeking a cost-effective, reliable 10G solution for long-reach applications.
