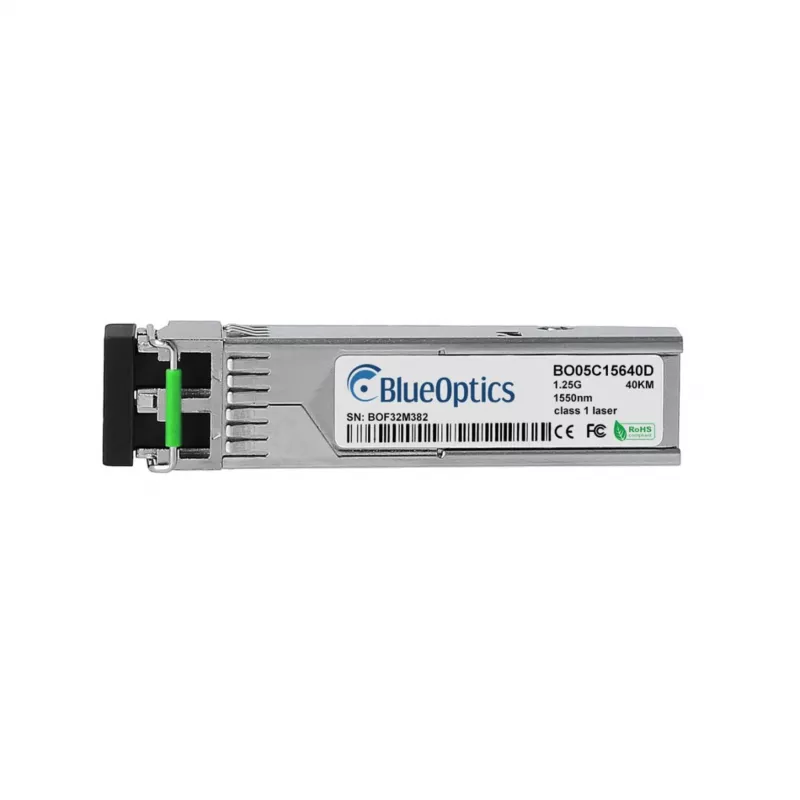

BLUEOPTICS SFP-1G-EX-TL-BO netwerk transceivermodule, glasvezel, 1250 Mbit/s (SFP-1G-EX-TL-BO)

The BLUEOPTICS SFP-1G-EX-TL-BO is a high-performance SFP transceiver module designed for reliable long-distance fiber optic communication. Compatible with TP-Link SFP-enabled devices, this module delivers 1.25 Gbps data rate over single-mode fiber at 1310 nm wavelength, supporting distances up to 10 km. It is hot-swappable and features Digital Diagnostic Monitoring (DDM) for real-time performance tracking.

Advantages

This transceiver offers seamless integration into existing network infrastructure, providing cost-effective 1000BASE-LX connectivity. Its compact SFP form factor allows for high port density, while DDM enables proactive network management. The module is CE, FCC, and RoHS certified, ensuring compliance with international standards.

Suitable for

• Enterprise network upgrades requiring long-distance fiber links
• Data center interconnects up to 10 km
• Telecommunications and ISP backhaul networks
• Industrial environments with temperature range 0°C to 70°C

Key specifications

• Module Type: SFP
• Data Rate: 1.25 Gbps
• Ethernet Standard: 1000BASE-LX
• Wavelength: 1310 nm
• Fiber Type: Single-Mode Fiber (SMF)
• Connector Type: LC Duplex
• Max Distance: 10 km
• Hot-Swappable: Yes
• DDM: Yes
• Power Supply: 3.3V
• Operating Temperature: 0°C to 70°C
• Duplex Mode: Full Duplex
• Compatibility: TP-Link SFP-enabled devices
• Certifications: CE, FCC, RoHS

Recommendations

For optimal performance, pair this module with single-mode fiber patch cables (LC duplex connectors) and ensure your network equipment supports 1000BASE-LX standards. The module is fully compatible with TP-Link switches and routers, but also works with other compliant SFP slots.
