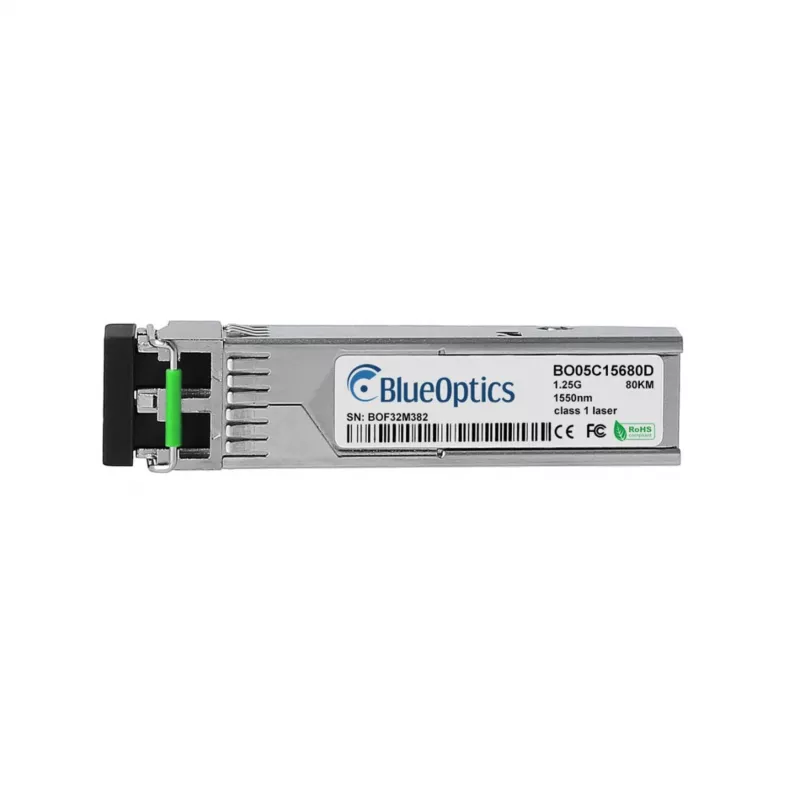

BLUEOPTICS SFP-1G-ZX-TL-BO netwerk transceivermodule glasvezel 1250 Mbit/s

The BLUEOPTICS SFP-1G-ZX-TL-BO is a high-performance SFP transceiver module designed for long-distance Gigabit Ethernet connections over single-mode fiber. Compatible with TP-Link and other MSA-compliant switches, this module delivers reliable data transmission at 1.25 Gbps up to 80 km.

Advantages

This transceiver offers exceptional reach and reliability for enterprise and service provider networks. With a 1550 nm DFB laser and APD receiver, it ensures stable performance over long distances. The hot-pluggable design and DDM/DOM support simplify network maintenance and monitoring.

Suitable for

• Gigabit Ethernet uplinks in campus and metropolitan area networks
• Connecting remote sites up to 80 km apart
• Replacing or expanding existing 1000BASE-ZX fiber infrastructure
• Compatible with TP-Link and other MSA-compliant SFP slots

Key specifications

• Data Rate: 1.25 Gbps
• Ethernet Standard: 1000BASE-ZX
• Fiber Type: Single-Mode (OS2)
• Wavelength: 1550 nm
• Max Distance: 80 km
• Connector: LC Duplex
• DDM/DOM: Yes
• Hot-Pluggable: Yes
• Operating Temperature: 0°C to 70°C
• Power Consumption: < 1 W
• Compliance: MSA, IEEE 802.3z

Recommendations

For optimal performance, use with single-mode fiber (OS2) and ensure proper cleaning of LC connectors. This module is ideal for long-reach links where reliability and distance are critical.
